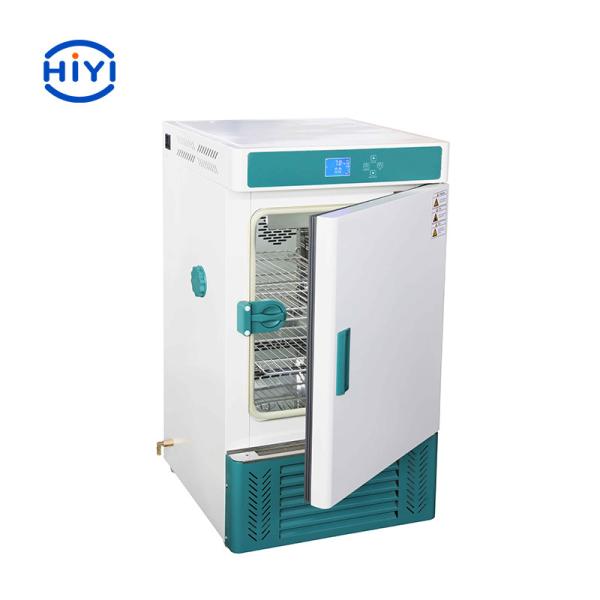

SPX Series Stainless Steel Heater Fridge Incubator Temp Range 0～65℃
SPX Series Stainless Steel Heater Fridge Incubator Temp Range 0～65℃
SPX Series Stainless Steel Heater Fridge Incubator Temp Range 0～65℃
SPX Series Stainless Steel Heater Fridge Incubator Temp Range 0～65℃
Specifications
Brand Name :
HiYi
Model Number :
SPX Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15 work days
Packaging Details :
paper case
Temp. Resolution Ratio :
0.1℃
Temp. Motion :
High Temp.：±0.5℃ Low Temp.：±1℃
Tem. Uniformity :
±1.5℃
Heater :
Stainless steel heater
Temp. setting mode :
Touch button setting
Sensor :
PT100
Description

Cooling Incubator

Refrigerated Incubator/BOD Incubator

OVERVIEW

The controller circuit of biochemical incubator is composed of temperature sensor, voltage comparator and control executive circuit. Biochemical incubator has the function of temperature control. It is an important test equipment for scientific research institutions, colleges and universities, production units or departmental laboratories in the fields of biology, genetic engineering, medicine, health and epidemic prevention, environmental protection, agriculture, forestry and animal husbandry, and is widely used in low temperature and constant temperature tests, culture tests, environmental tests, etc.

FEATURES & BENEFITS

1. Stainless steel inner chamber;foursquare semicircle transition, convenient to clean; space between shelves is adjustable.

2. Micro-computer control system; LCD with functions of time setting, parameter memorizing and power reset recovering.

3.Fluoride-free refrigeration and gentle breeze circulation.

4.Test hole of 52mm at left side of container.

5. Double door seal;tempered glass silicon rubber seal inner door and magnetic rubber seal outer door,which are convenient to on/off; inner chamber with light for convenient observation.

BX model additional characteristics:

1.LCD scree 30-stage program controller,round move,ladder operating.

2.Sensor failure alarm

Application

Biochemical incubator is widely applicable to environmental protection, health and epidemic prevention, drug inspection, agricultural and livestock, aquatic products and other research, universities, and production departments. It is a special thermostatic equipment for water analysis and BOD determination, bacteria, mold, microorganism cultivation, preservation, plant cultivation, and breeding experiments.

SPECIFICATIONS

Model SPX-70BIII SPX-150BIII SPX-250BIII
SPX-70BX SPX-150BX SPX-250BX
Cycle Mode Forced convection
Function Temp. range 0～65℃
Temp. Resolution Ratio 0.1℃
Temp. Motion High Temp.:±0.5℃ Low Temp.:±1℃
Temp. Uniformity ±1.5℃
Structure Inner Chamber Mirror Stainless Steel
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layer Polyurethane
Heater Stainless steel heater
Power rating 0.8kW 1.0kW 1.2kW
Compressor Air cooled hermetic compressor
Cryogen R134a
Defrost structure Automatic control intelligent defrosting
Test hole Inner diameter 43mm(one)
Controlled external power supply Outer universal socket (one), inner waterproof socket(one)
Temp. setting mode Touch button setting
Temp. display mode Measuring temperature: LCD upper screen; setting temperature: the lower row
Timer BIII model:0～99.9h BX model:0～99.9h×30 segment(with timing wait function)
Operation function BIII model:Fixed value operation,timing function,auto stop.
BX model:Program operation
Sensor PT100
Additional funciton BIII model:LED light, Deviation correction, Menu key lock, Power failure parameter memory
BX model :Loop self diagnosis, sensor fault alarm
Safety device Over temperature alarm,
Specification Inner Chamber size(W*L*H)(mm) 415*350*500 490*400*750 500*500*950
Exterior size (W*L*H)(mm) 571*591*1051 646*641*1301 656*741*1501
Packing size (W*L*H)(mm) 686*690*1211 761*740*1461 771*840*1661
Volume 70L 150L 250L
Load per rack 15kg
Shelf number 9 12 18
Shelf space 35mm
Power Supply Current rating AC220V/2.3A AC220V/3.6A AC220V/5.5A
NW/GW (kg) 69/92 86/114 100/139
Accessory Shelf 2
Shelf Frame 4
optional accessories Shelf, RS485 port, Printer, Recorder, Remote control, U-Disk data storage
