MS104K-S Portable Single Gas Detector Compact Ultra Low Power Consumption
MS104K-S Portable Single Gas Detector Compact Ultra Low Power Consumption
Specifications
Brand Name :
HiYi
Model Number :
MS104K-S1
Certification :
CE, ISO13485, ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
paper case
Product name :
Protable Single Gas Detector
Sampling Type :
Diffusion
Weight :
200g
Size :
86×62×39mm(L×W×H)
Gas unit :
ppm, mg/m3, LEL,VOL
Function :
multi gas detector
Display mode :
1.7inch LCD
Description
MS104K-S1​ Protable Single Gas Detector
OVERVIEW

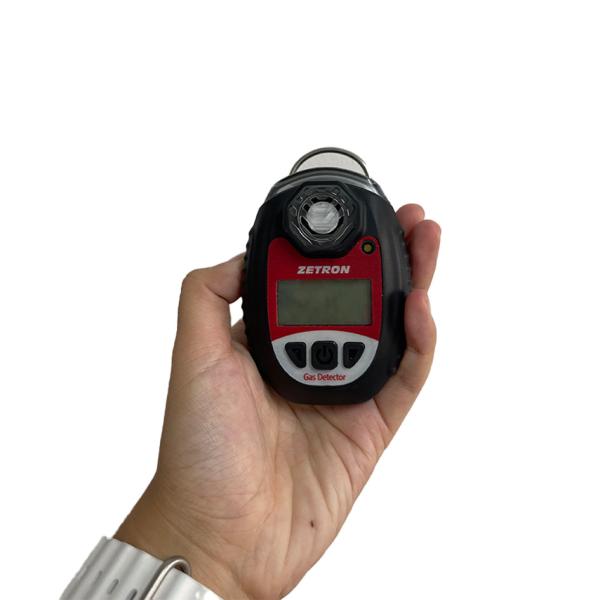

The MS104K-S1 is a premier maintenance-free single gas detector, celebrated for its dependability, ease of use, and economic advantages in protecting workers and maintaining compliance. It guarantees up to two years of service without requiring calibration, sensor swaps, battery changes, or any recharging. Certified by IECEx, ATEX, and CNEX for explosion safety, it upholds rigorous quality standards, ensuring the safety of personnel. The device features a compact and robust design that allows users to attach it easily to their work jackets or caps with alligator clips. Capable of identifying a wide range of gases—including LPG, CH4, carbon monoxide, hydrogen sulfide, oxygen, and sulfur dioxide—the MS104K-S1 can be customized to detect other specific toxic substances as well. Its versatility makes it an invaluable tool in sectors such as petroleum, petrochemical, metallurgy, and chemical industries for effective gas detection and personnel safety.
FEATURES
1. Could test more than 100 gas types, especially with lR sensor forCO2.CH4.LPG,LNG combustious gas detection
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
APPLICATION SCENES
MS104K-S1 is widely used in petroleum,petrochemical, metallurgy,chemical and other industries for gasdetection and personnel protection.
SPECIFICATION

Data Sheet
Detection Gas carbon monoxide CO,hydrogen sulfide H2S,oxygen O2,combustible gas Ex,carbon dioxide CO2,etc.
Detection Range 0-100ppm,0-100%LEL,0-100%VOL,depending on requirement
Unit ppm,mg/m3,LEL,VOL
Sensor Principle Electrochemical sensor,IR sensor and etc
Sampling Type Diffusion
Display 1.7inch LCD
Display content real-time concentration,alarm,power,charging status concentration unit,gas name,etc
Accurancy ≤±3%FS
Responding time T90≤30S
Power supply DC3.6V
Battery capacity 1600mAh energy battery,no charging,working time 1-2 years
Working Environment Temperature:-20℃~+50℃,can be customized -40℃~+70℃
Relative humidity:10-95%RH
Communication nfrared,optional communication base for communication,
manual calibration and export of data
Language English
Explosion-proof Exia I CT4Ga,Sil3,Atex
Protection Leve IP68
Size 87x63x32mm
Weight 200g
Standard Accessories calibration cover(diffusion type),instructions,certificate packaging box
Optional communication base (TYPE-C interface)
