ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
Specifications
Brand Name :
HiYi
Model Number :
ZR-3061
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 11500 ~12000 PER PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000/set/month
Delivery Time :
5-7 work days
Packaging Details :
alloy case
Product name :
ZR-3061
Input Voltage :
15 ... 30 VDC
Flue gas dynamic pressure :
(0 ~ 2000) Pa
Flue gas flow rate :
(1 ~ 45) m/s
Size :
length 85 x width 55 x height 140 MM
Weight :
0.5kg
Description

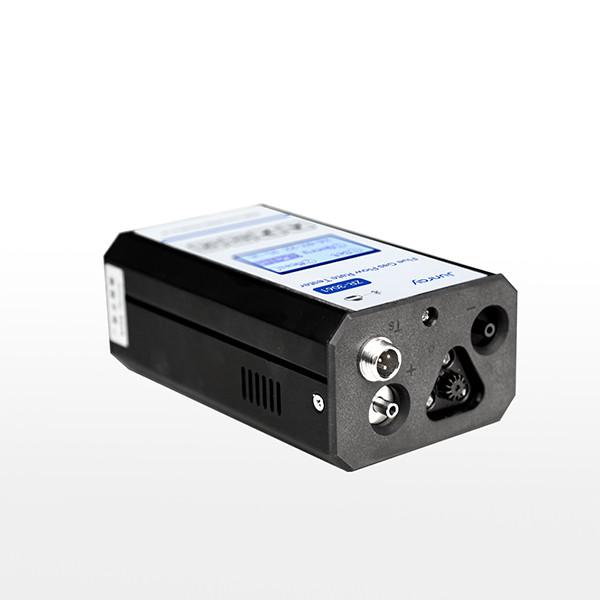

ZR-3061 Flue Gas Flow Rate Tester
OVERVIEW

ZR-3061 Flue gas flow rate tester is a handheld portable instrument used to measure the flue gas flow rate, flow, dynamic pressure, static pressure, temperature and other parameters of stationary pollution source.

FEATURES
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
1, Host
2, power adapter
3, smoke temperature wire
4, silicone rubber tube (bule & orange)
5, Main aluminum box
6, product manual
7, ZR-D06B TMS probe & Accessory box
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable InstrumentZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument​

1. Lightweight

> LCD display, English menu operation.
> Light, portable, and easy to operate.

2. High Test Efficiency

> Imported high-precision micro-differential pressure sensor: high precision, and small temperature drift.
> Calculate the average flow rate, average pressure, flue gas flow and other parameters automatically.
> Automatic zero correction and software calibration functions to ensure the measurement accuracy.

3. Long battery life

> Built-in lithium-ion rechargeable battery: can be used continuously for more than 24 hours.
> Can save 200 groups of measurement data without lost after shutdown.

SPECIFICATION

​

Parameters Range Resolution Maximum permitted error
Flue gas dynamic pressure (0 ~ 2000) Pa 1 Pa ± 2%
Flue gas static pressure (-30 ~ 30) kPa 0.01 kPa ± 4%
Flue gas temperature (0 ~ 500) ºC (expandable) 1 ºC ±3 ºC
Flue gas flow rate (1 ~ 45) m/s - ± 5%
Ambient atmospheric pressure (50 ~ 130) kPa
Operating temperature (-20 ~ 50) ° C
Charging time < 6h
Battery operating time > 24h
Power adapter Input AC (100~240) V, 50/60Hz; Output DC5V 2A
Size (length 85 x width 55 x height 140) mm
Weight About 0.5kg
Power consumption ≤ 0.5 W
ZR-3061 Flue Gas Flow Rate Tester Handheld Portable InstrumentZR-3061 Flue Gas Flow Rate Tester Handheld Portable InstrumentZR-3061 Flue Gas Flow Rate Tester Handheld Portable InstrumentZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
