20km UAV IP Camera Video And RS232 Data Transmitting Radios For Pixhawk And Futaba System

Introduction

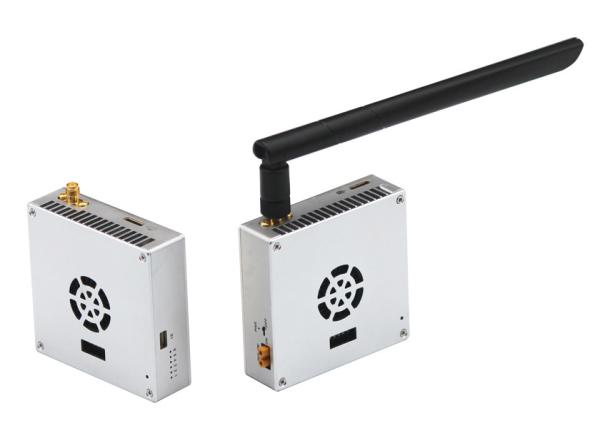

IFLY HD is a professional Wireless full HD transmitter for UAV drone applications that need an high quality full HD video and duplex data transmission with strong signal and long range. Designed from the ground up for UAVdrone applications, IFLY packs the performance, form factor, interfaces and reliability required for industrial applications.

Industrial and professional applications now share the same requirement, a robust wireless HD video downlink and data uplink and downlink and long range transmission. IFLY, delivers excellent HD image quality, low latency, and the highest levels of robustness. IFLY it’s 2.4GHz radio, double antennas design and software channel selection ensures resilient connectivity, free from interference, specifically from UAV controls.

Feature:

1) COFDM modulation, Stable transmission
2) Support high speed moving transmission
3) Works well with Pixhawk system
4) Great security by encryption of AES128 bits
5) Modular design, compact structure, OEM design
6) Support custom made for you or add additional functionality.

Product Specification:

• Transmission distance: (outdoor) with the 5db standard omni-directional TX antenna,transmission distance over 20 km
• Band frequency: 2.402GHz - 2.482GHz
• Modulation mode: TDD-COFDM
• Video input: Mini ETH *1
• RS232 port*1
• TTL Port*1
• Compatible input video format HD all format: up to 1920x1080P @ 60fps
• Output format: 352x288@30fps, 720x576@30fps, 1280x720p@30/60fps, 1920x1080p @ 30fps, 1920x1080p @ 60fps
• Compression: High definition television broadcasting
• Channel: 80 channels (manually frequency hopping, anti-jamming)
• Support Auto Polit System: Pixhawk
• Support RC: Futaba T14SG
• Software Support system: Window 7 8 10
• Data interface: TTL transmission interface
• RF Power Adjustable: 23dbm-30dbm adjustable by software
• Communication encryption: AES 256bit encryption
• Temperature: -40℃-85℃

Power On

After checking all the connections are in good condition, turn on the the IP Camera, PC, transmitter and receiver. The indicators will bright and the whole system starts work.

TX Indicators Definition

After powering on, the devices will boot normally. Then the indicators’ normal state will be as follows:

(1) Indicator light 1, 2, 3 and 6 will turn on in green color.

(2) After one second, indicator light 1(green), 2(green), 3(green) and 6(blue) will start to blink.

(3) After the startup completed, indicator light 1(green), 2(green), 3(green), 5(green) and 6(blue) will keep constant bright. Indicator light 4(red) will blink frequently.

RX Indicators Definition

When the device begin to normally start work, all indicators status is described as follow:

1) After powering on, light 1,2,3 turn green, light 6 turns blue and light 8 turns red.

2) After 1 second, light 1(Green), 2(Green), 3(Green) and 6(Blue) start to blink. Light 5 (Green) and 8(Red) will keep constant light.

3) After the starting completed. Light 1(Green), 2(Green), 3(Green), 4(Red), 6(blue) and 8(Red) will keep constant bright. By the way, when you use the the ETH1, 7 (Green) will blink frequently.
