Long Range HD UAV Data Link , 18-20km Analog video transmitter for Drone

Introduction:

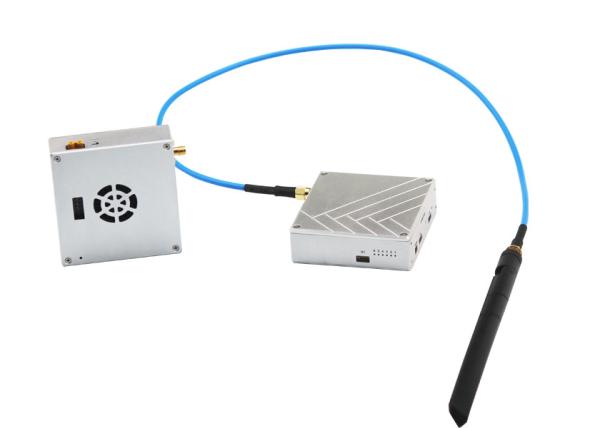

FIP-2420 UAV HD transmitter is our own research and development of high-definition COFDM mobile video transmitter, the device uses orthogonal frequency division multiplexing technology, uses relatively narrow air bandwidth to transmit high-definition video images, data transmission bandwidth reaches up to 3-5Mbps. The device generally works in 2.4GHz frequency band, can make the data transmission stable in high altitude and high-speed movement process. Very suitable for the video transmission for air to ground and UAV HD image transmission.

Main Features:

• Operates at 2.4GHz frequency, no license needed, and only suitable for LOS(Line-of-Sight) use
• Transmission power 400mW
• Long operating range over 5km
• Air speed up to 10Mbps,down link up to 6Mbps, up link up to 800kbps
• Link establishing/recover time less than 60ms
• Compact size of 68×48x14mm
• Light weight less than 59g
• Point-to-Point and Point-to-Multipoint supported
• Optimized transmission for 1080P high definition video

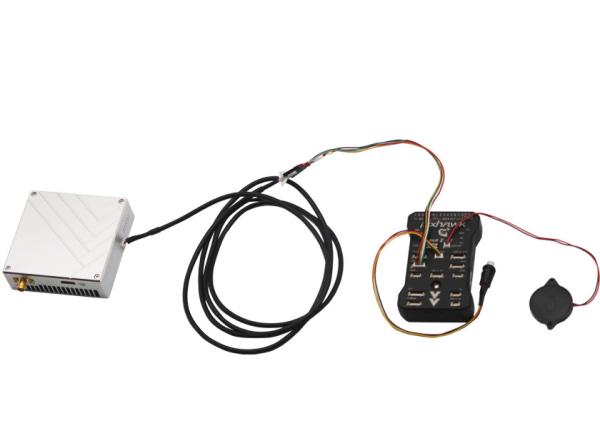

• Support two remote controllers to control UAV and on board devices through the PPM port of Local Side Unit. And the On Board Unit outputs the control signals through one SBus port and two PPM ports synchronously
• Two transparent serial data link, the end to end delay less than 10ms
• Transparent TCP/IP transmission channel, provides most flexibility for IP based devices to apply on UAV platforms

Application:

As its miniature volume, precision design, lightweight and easy to carry, suitable used in short distance and long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.
