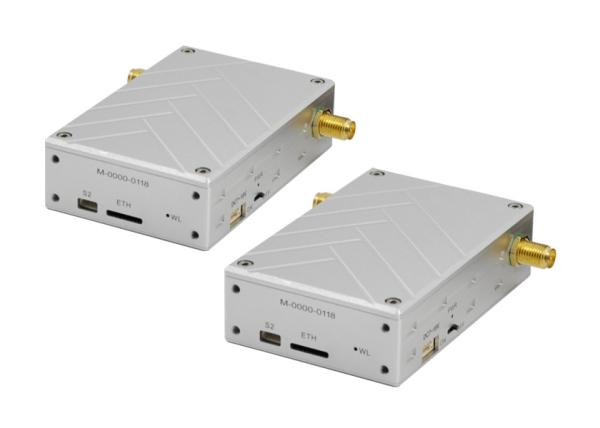

15km MAVLINK HD Long Range Video Transmitter Narrow Bandwidth 4MHz - 8MHz Optional
15km MAVLINK HD Long Range Video Transmitter Narrow Bandwidth 4MHz - 8MHz Optional
15km MAVLINK HD Long Range Video Transmitter Narrow Bandwidth 4MHz - 8MHz Optional
15km MAVLINK HD Long Range Video Transmitter Narrow Bandwidth 4MHz - 8MHz Optional
Specifications
Brand Name :
IFLY
Model Number :
FIM-2410
Certification :
FCC
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/month
Delivery Time :
3-5days
Packaging Details :
1set/box
Weight :
93g
Encyption :
AES 256Bit
Video input :
IP and HDMI
Delay :
15ms
Camera support :
HDMI &IP
RC Support :
FUTABA
Data Protocol :
MAVLINK
TX Mode :
2T2R
Description

15km delay MAVLINK HD Long Range Video Transmitter Narrow Bandwidth 4MHz - 8MHz Optional

Products Introduction:


FIM-2410 is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.265 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation, provide high quality of picture in resolution 1080P, short latency.

This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio

Features:

  • Compact designed, lightweight, less than 100g
  • Support 1080P 60&30 / 720P 60 resolution adjustable.
  • Low delay 15-25ms
  • Special for UAV / drones long range video communication
  • Maximum RF output 1.5 Watt, can support 30km LOS range.
  • Support 100Mbps ethernet to output and HDMI input output
  • Support two way video transmission & data transmission by RS232 interface

Technical parameters

Frequency 2.4GHZ(2.402-2.478GHz), 2.3Ghz, 2.5Ghz Adjustable
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 1Watt (Air to ground 10km)
Frequency Bandwidth 4/8MHz Adjustable
Latency 15-25ms
Receive Sensitivity -100dbm/95dbm/90dbm
Transmitter Interface 1080P60 HDMI Mini RX
100Mbps Ethernet Port
S1, S2 TTL bidirectional serial port
DC7-18V
SMA RF
Receiver Interface 1080P60 HDMI Mini RX
100Mbps Ethernet Port
S1, S2 TTL bidirectional serial port
DC7-18V
SMA RF
Video Color Space Default 4:2:0
Antenna 1T1R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX Support the voice function
Video Compressed Format H.264 +h.265 TS Support the bitrate output
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption AES 128
Transmission Mode point to point
Transmission Distance Air to ground 10km
Start-up time < 30s
Total delay of the system 15-25ms of 1080P60/720P60 coding and decoding
Two-way function Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module Optional
Power supply DC 7-12V DC7-18 V Optional
Total Power Dissipation Transmitter: 10Watts Maximum value
Receiver: 6Watts
Temperature Range Operating temperature:-40°C ~ 85°C
Storage temperature:-55°C ~ 100°C
Interface Power input interface × 1
Antenna interface × 1
TTL Bidirectional Port × 2
Ethernet to USB / RJ45 on Windows × 1 Software adjustment
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 72×47×19mm
Weight Tx: 94g Rx: 98g

Application

15km MAVLINK HD Long Range Video Transmitter Narrow Bandwidth 4MHz - 8MHz Optional
