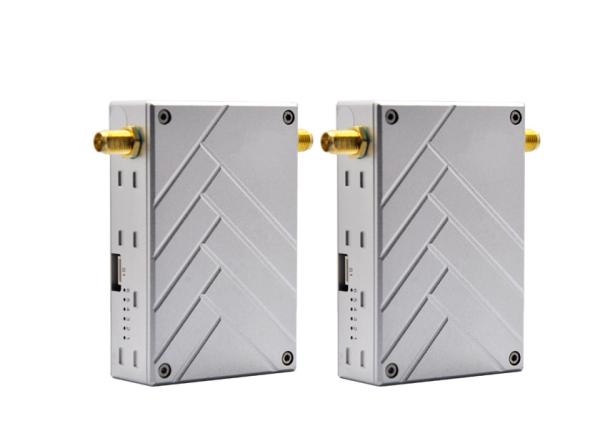

AES 256bit encrypted wireless uav COFDM data and video transmitter with HDMI and ethernet port
AES 256bit encrypted wireless uav COFDM data and video transmitter with HDMI and ethernet port
AES 256bit encrypted wireless uav COFDM data and video transmitter with HDMI and ethernet port
AES 256bit encrypted wireless uav COFDM data and video transmitter with HDMI and ethernet port
Specifications
Brand Name :
IFLY
Model Number :
FIM-2410
Certification :
FCC
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/month
Delivery Time :
3-5days
Packaging Details :
1set/month
RF Power :
30dbm
Power Supply :
DC12V
TX Powe Consumption :
7Watts
RX Power Consumption :
5Watts
Video Res :
Full HD 1080P
Delay :
15ms
Range :
10km air to ground
Weight :
93g
Description

AES 256bit encrypted wireless uav COFDM data and video transmitter with HDMI and ethernet port

Introduction:


FIM-2410 is Full HD image transmission system equipment professional for UAVs, standard COFDM modulation. The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate, and then improve image quality. It can be the lowest bit rate to achieve the best quality of image.
Supports RF power 1W, HDMI AV Input. 2.402-2.478GHz (optional).

Features:

  • Compact designed, lightweight, less than 100g
  • Support 1080P 60&30 / 720P60 resolution adjustable.
  • Low delay: 12-25ms
  • Special for UAV / drones long range video communication
  • Maximum RF output 1.5 Watt, can support 30km range.
  • Support 100Mbps ethernet to output and HDMI input output
  • Support two way video transmission & data(RS232) transmission

Parameters

Frequency 2.4GHz(2.400-2.482GHz)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 1Watts
Power Consumption TX: 7Watts/RX: 5Watts
Distance 10km
Bandwidth 2/4/6/8Mhz
Video Input/output Interface On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bitrate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ Tx: 5db(Omni Antenna) Rx: 7db(Omni Antenna)
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Video Compressed Format AVC adds H.265 feature TS stream
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point
Start-up time 25s
Latency 15-30ms
Transmission Rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL/MAVLINK

Interface

(same interface on TX & RX)

 1. 1080P 60 HDMI Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x2
3. S1 TTL bidirectional serial port x1
4. Power Input (DC7-18V) x1
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature:-40°C ~+85°C

Storage temperature:-55°C ~ +100°C
Dimension Tx: 73x48x20mm/ Rx: 72×48×20mm
Weight Tx: 93g, Rx: 93g

Products Details

AES 256bit encrypted wireless uav COFDM data and video transmitter with HDMI and ethernet port

Application

AES 256bit encrypted wireless uav COFDM data and video transmitter with HDMI and ethernet port
