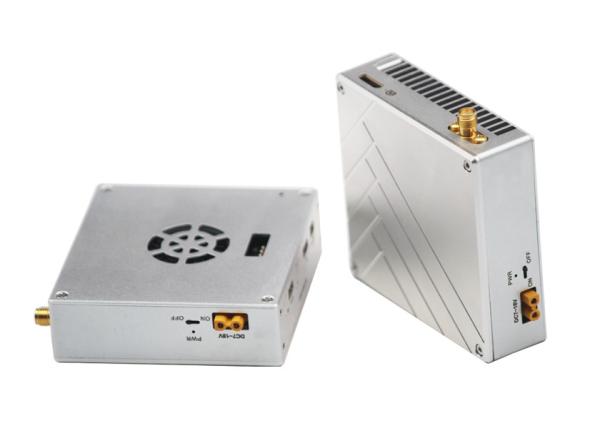

20KM Digital Camera COFDM Video Camera Wireless Transmitter For UAV Movie Aerial Photography
20KM Digital Camera COFDM Video Camera Wireless Transmitter For UAV Movie Aerial Photography
Specifications
Brand Name :
IFLY
Model Number :
FIP-2420
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1set/box
Payment Terms :
T/T, Western Union
Supply Ability :
1500 set/ month
Delivery Time :
3-5 Days
Frequency :
2.4GHz (2.402 - 2.478 GHz)
Air To Ground Distance :
20km
Modulation :
TDD-COFDM
Duplex Data: :
Support SBUS/PPM/TTL
Transmission Rate :
3-5Mbps
RF Transmitting Power :
33dBm
Power Supply :
DC 7-18V
Net Weight :
Tx: 146g/ Rx: 68g
Description

20KM Digital Camera COFDM Video Camera Wireless Transmitter For UAV Movie Aerial Photography

Description


The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this IFLY series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Features

  • Small size, low power consumption, adapt to industrial-grade ultra-low and ultra-high temperature environment
  • Transmitting rate: 70Mbps, air to ground 20km
  • Support: 2.4GHz (2.402 - 2.478 GHz) COFDM
  • Transmitting Power: 2000mW
  • Mode: Point to Point and Point to Multi-point
  • Frequency Bandwidth: 2Mhz/20Mhz Adjustable
  • Support AES encryption
  • Support SBUS,PPM,TTL
  • Communication Latency: ≤1ms
  • RJ45+TTL bidirectional serial port. The serial port can match external S1and S2 module
  • Combine video and data transmission into one link to send and receive.

Advantages:


Light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.

Parameter

Frequency 2.4GHz (2.402-2.478GHz)
RF Transmitting Power 33dBm(air to ground 18-22km)
Frequency Bandwidth 4/8MHz
Antenna 1T1R
Adjustment mode of bit rate Software adjustment
Communication Channel Encryption AES 125/256
Transmission Mode point to point / point to multipoint
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Transmission Rate 3-5Mbps
Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Power DC 7-18V
Power Consumption TX: 6Watts
RX: 6Watts
Temperature Operating temperature: -40 - +85°C
Storage temperature: -55 - +100°C
Interface Power input interface × 1
Antenna interface × 2
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1(TX), Ethernet Port x2(RX)
Indicator RJ45 input/output indicator light
Transmitting and receiving indicator light
Transmitting and receiving indicator light
Power light
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size TX: 76*73*24mm/RX: 76×73x24mm
Net Weight TX: 148g
Rx: 148g
