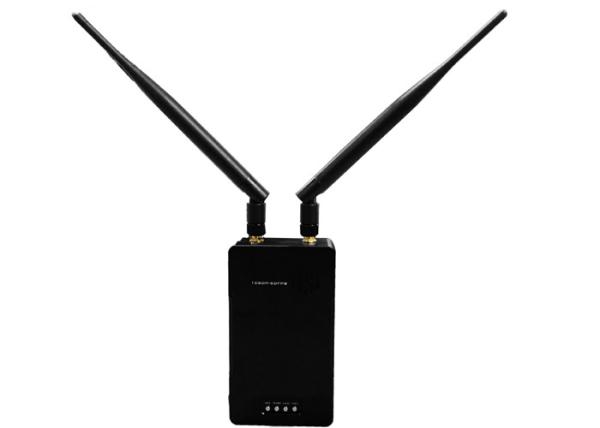

6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
Specifications
Brand Name :
IFLY
Model Number :
F200L
Certification :
CE, FCC
Place of Origin :
CHINA
MOQ :
1Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pairs/month
Delivery Time :
5-8working days
Packaging Details :
Carton Box
Range :
2km
Video Output :
Full HD
Application :
Living Broadcasting
FR Channel :
14CH
Frequency :
5.1-5.9Ghz
Power :
DC6-18V
Tx Power :
29dBm
Tx Weight :
178g
Description

6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities

Data Sheet

6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities

Features

  • Wireless HD video transmission for DSLR/DV.
  • Up to 6000FT, effective range line of sight.
  • Wall Pass Function: At least 2 Concrete walls, trees etc.
  • Support full-HD 1080P/60Hz video display with very low latency.
  • Perfect Anti-Interference Ability: At least 3-4 sets of wireless transmission system could work in the same place;
  • SONY F970 Battery for power supply: At least 220minutes; convenient battery replacement.
  • 14 Frequency Points(from 5.1 G to 5.9G)for options;

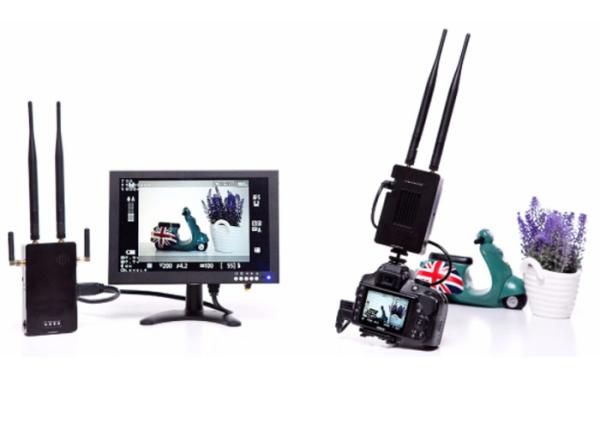

  • The display supports both with monitors and mobile devices (iphone/ ipad) etc.

6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities

Specification

Items Tx Rx
Transmission Distance Up to 600FEET(2km), Line of sight
Hardware Interface HDMI Input HDMI Output
Transmission Power 25mW-800mW adjustable
Power Supply DC6-18V DC6-24V
Working Frequency 5.1-5.9Ghz, 14Frequency Channel for your option
Transmitting Power 29dbm Max 29dbm
Power Consumption 5watts 5watts
Video Input 1080P/60/50/25FPS, 720P/25/50/60FPS, 1080I/50/60FPS
Video Output 1080P/60FPS

Video Display

HD Display: HDMI Interface

Mobile Devices(IPhone/IPad: IOS 8.0 and above version
Latency ＜200ms

Mechanicl

 “V” mode Battery Backpack wit SONY F970 Li-battery Hot-shoe installation with 1/4 screw nut
Dimension 114*70*25mm(Weight: 178g) 127*72*28mm (Weight: 233g)

Temperature

-10℃--+60℃(Working Temperature)

-20℃-+50℃ (Storage Temperature)
Warranty 1Year

Application

6000FT Living Broadcasting Wireless HD Video transmission for movie/Sports/Wedding/church activities
