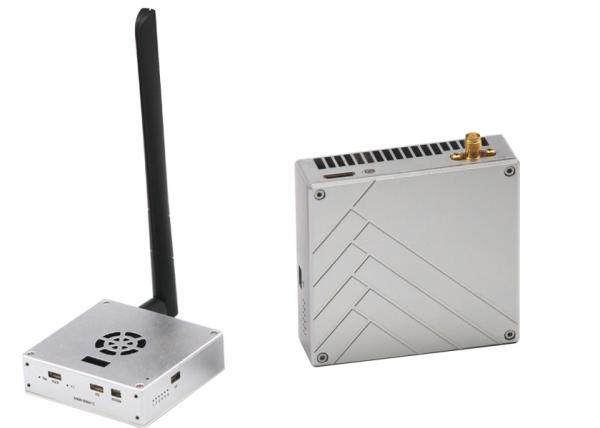

Lightweight long range 30km UAV Data Link suppoort Pixhawk dulplex data control, telemetry & payload, Video Transmission
Lightweight long range 30km UAV Data Link suppoort Pixhawk dulplex data control, telemetry & payload, Video Transmission
Lightweight long range 30km UAV Data Link suppoort Pixhawk dulplex data control, telemetry & payload, Video Transmission
Lightweight long range 30km UAV Data Link suppoort Pixhawk dulplex data control, telemetry & payload, Video Transmission
Specifications
Brand Name :
IFLY
Model Number :
FIM-2430
Certification :
CE
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100sets/month
Delivery Time :
3-5working days
Packaging Details :
1set/month
Working Temprature :
-40°C ~+85°C
DC Input :
DC7-18V
Weight :
148g
Distance :
30km
Sensitivity :
-100dbm@4Mhz
RF Power :
1.5watts
Encode :
H.264+H.265
Encryption :
128bit AES
Description

Lightweight long range 30km UAV Data Link suppoort Pixhawk dulplex data control, telemetry & payload, Video Transmission

UAV video data links advantages:

  1. Long range video data transmission distance up to 30km;
  2. Delay time very short less than 30ms;
  3. Perfect image quality, brighter colors and image smoothness.
  4. Micro and lightweight less than 150g
  5. Four port: HDMI, ethernnet and serial port*2
  6. Compatible with ontrol, telemetry & payload, Video Transmission in 1 RF channel

Main functions as belows:


1. HDMI video input and output
2. Ethernet data dulplex transmission
3. Serial data from autopilot or RC
4. Support telemetry MavLink
5. Both video and data transmission range can up to 30km

Applicaitons


It is likely the most cost effective solution for helicopter downlinks as well as long range UAV applications. Given enough height, FIM-2430 can provide 30km wireless range.

Lightweight long range 30km UAV Data Link suppoort Pixhawk dulplex data control, telemetry & payload, Video Transmission

Parameters

Frequency 2.4GHz(2.400-2.482GHz)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 1.5Watts
Power Consumption TX: 12Watts/RX: 5Watts
Distance 30km
Bandwidth 2/4/6/8Mhz
Video Input/output Interface On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bitrate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ Tx: 5db(Omni Antenna) Rx: 10db(Omni Antenna)
Video Color Space Default 4:2:0
Video Compressed Format AVC adds H.265 feature TS stream
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption AES 128
Transmission Mode point to point
Start-up time 25s
Latency 15-30ms
Transmission Rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Two-way function Support video and duplex data simultaneously
Data Support TTL/MAVLINK

Interface

(same interface on TX & RX)

 1. 1080P 60 HDMI Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x2
3. S1 TTL bidirectional serial port x2
4. Power Input (DC7-18V) x1
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature:-40°C ~+85°C

Storage temperature:-55°C ~ +100°C
Dimension Tx: 73x48x20mm/ Rx: 72×73×24mm
Weight Tx: 93g, Rx: 148g
