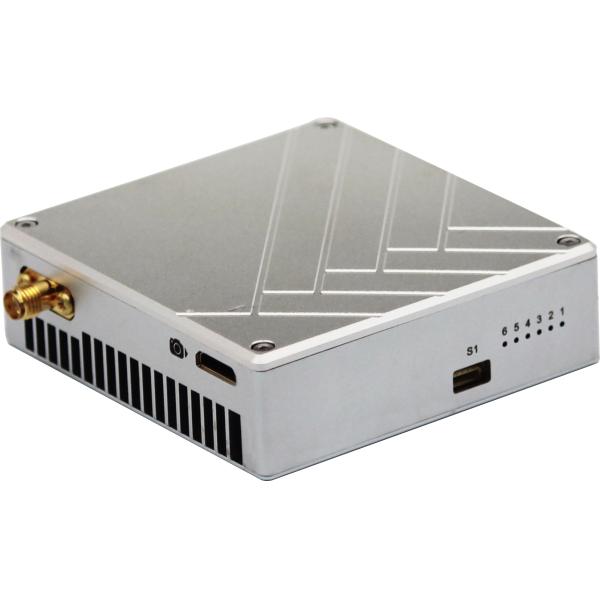

148g weight Mini full duplex wireless UAV Data Link digital Radio Compatible with Pixhawk cube System
148g weight Mini full duplex wireless UAV Data Link digital Radio Compatible with Pixhawk cube System
148g weight Mini full duplex wireless UAV Data Link digital Radio Compatible with Pixhawk cube System
148g weight Mini full duplex wireless UAV Data Link digital Radio Compatible with Pixhawk cube System
Specifications
Brand Name :
IFLY
Model Number :
FIM-2430
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100sets/month
Delivery Time :
3-5working days
Packaging Details :
1set/box
Sensitivity :
-100dbm@4Mhz, -95dbm@8Mhz
Antenna :
SMA Omni Antenna
Tx Antenna :
5dbi omni antenna
Rx Antenna :
12dbi Omni antenna/Panel Antenna
RF Power :
1.5watts
Modulation :
TDD-COFDM
Frequency :
2.402-2.478Ghz
Encryption :
AES128bit
Description

148g weight Mini full duplex wireless UAV Data Link digital Radio Compatible with Pixhawk cube System

Introduction

FIM-2430 TDD_COFDM is our new mini pure digital wireless transmission equipment with advanced processing technology and time division COFDM modulation technology, providing two-way encryption (support AES_128 encryption ) the integrity of the network data transmission channel, the perfect realization of real-time, anti multi-path, high-speed movement of data, voice, image transmission ! The product has the advantages of small volume, light weight, especially for application UAV system, high-speed railway, moving vehicles,and other complex environments.

Features:

  • Provide up to 3-5Mbps data stream, dynamic adaptive rate allocation technology
  • Support transparent PTP network technology UDP/TCP/IP
  • Support high-speed mobile transmission
  • Provide standard TTL MAVLINK + RJ45
  • Support high standard industrial applications
  • Small volume, light weight, easy to carry, fin type aluminum chassis
  • High definition OLED panel digital display, simple interface and easy to operation

148g weight Mini full duplex wireless UAV Data Link digital Radio Compatible with Pixhawk cube System

Technical Parameters
Model FIM-2430
Voltage DC7-18V
Current TX/RX: 1A/0.41A(@12V)
Video input AV:CVBS
HDMI: Mini HDMI port
Ethernet: RJ45
Radio Frequency 2402-2478Mhz
Bandwidth 4/8MHz
Output power 32dBm
Decryption AES 128bit
Modulation COFDM
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video processing method H.264+H.265
Parameter control mode TDD Software
The RF interface SMA
Operating temperature -40℃～85℃
Dimensions TX: 76*73*24mm/RX: 73x73x24mm
