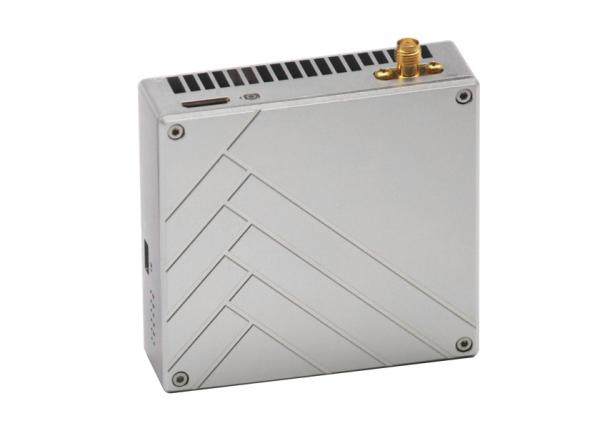

148g Weight Mini 2.4ghz 1.5W UAV Data Link , hdmi wireless video sender support TTL Pixhawk cube
148g Weight Mini 2.4ghz 1.5W UAV Data Link , hdmi wireless video sender support TTL Pixhawk cube
148g Weight Mini 2.4ghz 1.5W UAV Data Link , hdmi wireless video sender support TTL Pixhawk cube
148g Weight Mini 2.4ghz 1.5W UAV Data Link , hdmi wireless video sender support TTL Pixhawk cube
Specifications
Brand Name :
1Set
Model Number :
FIM-2430
Certification :
CE
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300sets/month
Delivery Time :
3-5working days
Packaging Details :
1set/box
Modulation :
TDD-COFDM
Distance :
30km
Sensitivity :
-100dbm@4Mhz -95dbm@8Mhz
Frequency :
2.402 - 2.478 GHz
Data :
TTL Bi-directional
Weight :
148g
Antenna Port :
SMA
Serial Interface :
2*TTL Port
Description

148g Weight Mini 2.4ghz 1.5W UAV Data Link , hdmi wireless video sender support TTL Pixhawk cube

Description


FIM-2430 is IFLY ultra long range UAV video data link, which have UHF and 2.4GHz two bands to meet the market different demands. FIM-2430 has HDMI, ethernet and double serial port to support two way video data transmission. Transmission range can up to 30km,Which is the best choice for FHD ultra long range UAV video data transmission.

Features

  • Working Temperature: -40℃~+85℃
  • Support TTL
  • Video: Video sources self-adaptive(Max 1080P/60), Support HDMI Input/output
  • Support Video and Duplex Data
  • Compatible with different brand flight control system and remote controller
  • 100Mbps Ethernet for option
  • Matching with software to output video on PC.

Applications:

  • VTOL uav
  • Heavy lift octocopter
  • Heavy fixed wing uav
  • Heavy lift VTOL uav with long endurance

148g Weight Mini 2.4ghz 1.5W UAV Data Link , hdmi wireless video sender support TTL Pixhawk cube

Parameters

Frequency 2.4GHZ(2.400-2.482GHz)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 1.5Watts
Power Consumption TX: 12Watts/RX: 5Watts
Distance 30km
Bandwidth 4/8Mhz
Video Input/output Interface On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bitrate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ TX: 5db(Omni Antenna)RX: 10db(Omni Antenna)
Video Color Space Default 4:2:0
Video Compressed Format AVC adds H.265 feature TS stream
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption AES 128
Transmission Mode point to point
Start-up time 25s
Latency 15-30ms
Transmission Rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Two-way function Support video and duplex data simultaneously
Data Support TTL/MAVLINK

Interface

(same interface on TX & RX)

 1. 1080P 60 HDMI Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x2
3. S1 TTL bidirectional serial port x2
4. Power Input (DC7-18V) x1
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature:-40°C ~+85°C

Storage temperature:-55°C ~ +100°C
Dimension 73x48x20mm
Weight Tx: 148g, Rx: 93g
