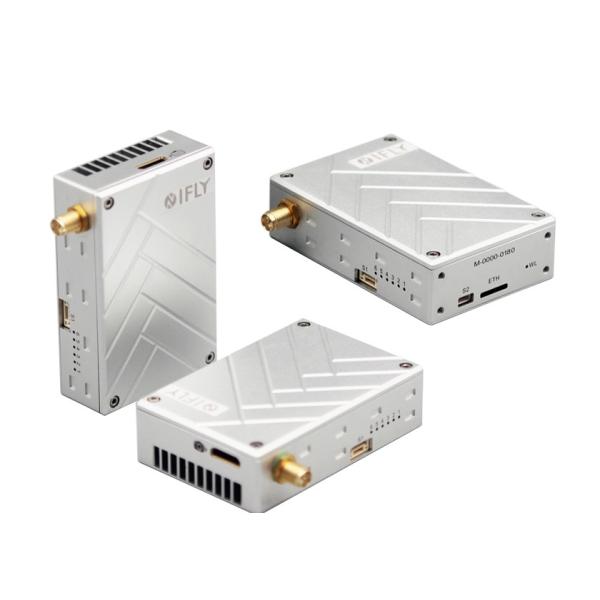

Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter
Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter
Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter
Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter
Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter
Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter
Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter
Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter
Specifications
Brand Name :
IFLY
Model Number :
FIM-2410
Certification :
FCC
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
3-5days
Packaging Details :
1set/carton
Modulation :
TDD-COFDM
Video Resolution :
1080P
Frequency :
2.3-2.5Ghz
Dimension :
73*47*19mm
Serial Data :
Baudrate 115200bps
Application :
drone video transmitter
Fly Controller :
Pixhawk
Range :
10km drone video transmitter
Description

Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km UAV Video and data link

Introduction

FIM-2410 airborne transmitter have built-in 1Watts inear RF amplifier, flight height of 300meters or more, transmission more than 10km.

COFDM series long distance HD video radio is very suitable for military reconnaissance and public security/fire control/emergency rescue and customs and border protection/inspection by sea and Live broadcast/site monitoring and Grid line inspection/Pipeline inspection line and plant protection in Military unmanned aerial vehicles and UAV/industrial and commercial UAV/High-end consumer UAV. It can achieve high quality real-time mobile video transmission in city, sea, mountains or many other complex environment.

Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter

Key Features

1 Long transmission distance more than 10km
2 Support high speed move more than 600km/h
3 Level of broadcast TV/monitor's HD video encoding: HDMI/SDI/CVBS adaptive. 1080P/1080I/720P/576P adaptive.
4 Adjustable bandwidth 4/8Mhz: multi-bandwidth, multi-rate, multi-mode
5 Multiple encryption to avoide illegal reception
6 Small design: compact, light and integrated
7 Ultra low power consumption
8 Duplex data transmission support TTL/SBUS/Telemetry/MAVLINK/RS232 protocol
9 Support UDP Multicast/TCP/IP
10 Supply 2way LAN Link

Connect with Pixhawk 2(Cube) and Go pro hero camera

Baud Rate 115200bps TTL Serial port connect with Pixhawk and GCS 10km drone video transmitter

Specification

Frequency 2.3Ghz/2.4GHZ(2.402-2.478GHz)/2.5Ghz for your option
Frequency Bandwidth 4/8MHz
Latency ≤15-30ms
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format H.264+H.265
Adjustment mode of bitrate Software adjustment
Receive Sensitivity -100dbm ~ -90dbm
Two-way function Support video and duplex data simultaneously
Data Support SBUS/MAVLINK/Telemetry/TTL
Power supply DC 7- 18V (DC 12V advised)
Working Temperature -40℃~+85℃
