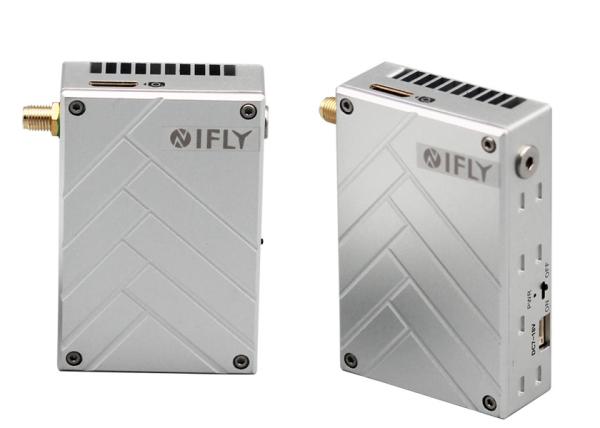

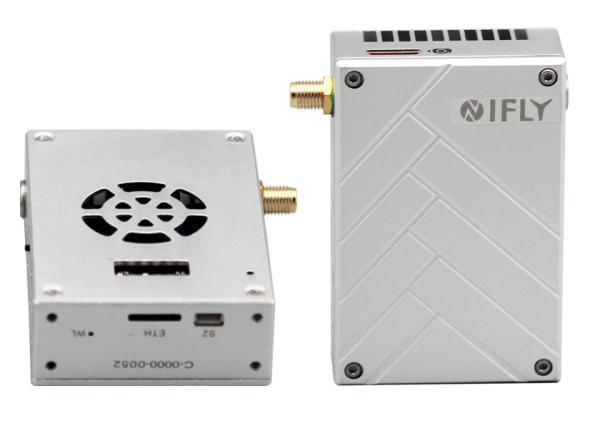

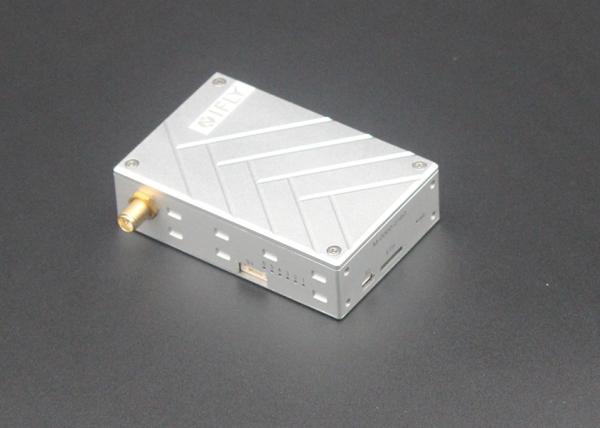

10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio
10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio
10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio
10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio
10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio
10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio
10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio
10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio
Specifications
Brand Name :
IFLY
Model Number :
FIM-2410
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
3-5days
Packaging Details :
1set/carton
Range :
10-12km
Installation :
Plug to Play
Modulation :
TDD-COFDM
Video :
Digital HD Video
Serial Data :
Full duplex TTL data
Baud rate :
115200bps
Encryption :
AES-128bit
Setting Change :
By software
Description

10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio

Introduction

TDD-COFDM wireless video data links advantages:

1 Long range transmission distance 10-12km
2 Delay time very short less than 30ms
3 Perfect image quality, brighter colors and image smoothness.
4 Micro and lightweight less than 100g
5 Support output video to monitor and PC at same time
6 Compatible with Pixhawk fly controller
7 Support UDP Multicast/TCP/IP

10-12km Plug to Play TDD-COFDM full duplex wireless digital UAV Data Link Radio

Application

1 Aerial video production and cinematography
2 Industrial and commercial inspection
3 Surveillance and security
4 Real estate assessment and supervision
5 Search and rescue
6 First responder situation evaluation
7 Crowd control
8 UAV enthusiast recreation

Specification

Frequency 2.3Ghz/2.4GHZ(2.402-2.478GHz)/2.5Ghz for your option
Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 1Watt (Air to ground 10km)
Power Consumption TX: 10Watts
RX: 6Watts
Frequency Bandwidth 4/8MHz
Latency ≤15-25ms
Transmission Rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Video Color Space Default 4:2:0
Antenna 1T1R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format H.264+H.265
Bitrate Up to 115200bps (Software adjustment)
Encryption AES 128
Transmission Distance Air to ground 10km
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support TTL
Power supply DC 7- 18V
Interface 1080P/60 HDMI Mini RX x1
100Mbps Ethernet to USB / RJ45 on Windows × 1
S1 TTL bidirectional serial port x2
Power Input x1
Indicator Light HDMI input/output Status
Transmitting and receiving
Video board working Status
Power
HDMI HDMI mini/Flexible Flat Cable(FFC)
Temperature Range Operating temperature: -40°C ~+ 85°C
Storage temperature: -55°C ~+ 100°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 72×47×19mm
Weight Tx: 94g/Rx: 94g
