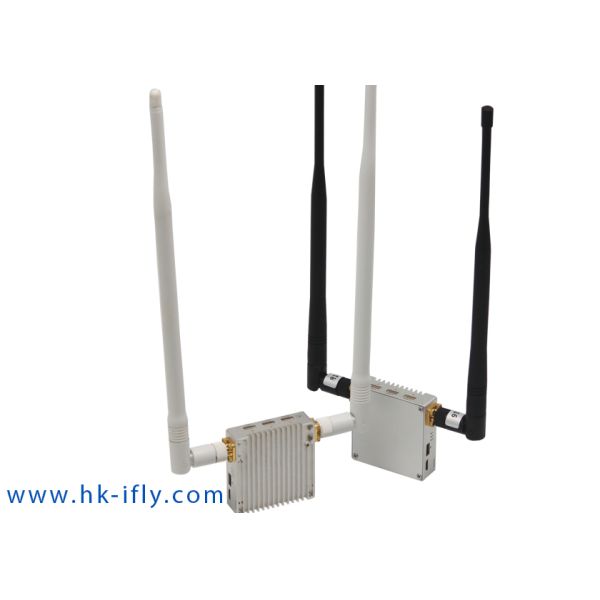

16km QPSK Wireless MAVLINK Video Transmitter 0ms Latency With RJ45 RS232 Port

FNM-8416 this exclusive design mini HD wireless video transmitter is using the 4th generation mobile communication core COFDM multi-carrier modulation technology. It supports 1.4GHz(1428-1448MHz) and 800Mhz?(806-826Mhz) suitable for long distance, high code stream, NLOS and wireless aerial transmission application. With RS232 bidirecitonal port, can transmit video audio and control signal in a long distance up to 16km.

Its advantages small size, lightweight and high bandwidth that can transmit high quality full 1080P HD video and audio even though high-speed mobile shooting. It’s widely used in UAV aviation filming.

Main Features:

• Operates at 800Mhz/1.4GHz frequency, no license needed, and only suitable for LOS(Line-of-Sight) and NLOS(Non Line of Sight) use
• Transmission power 600mW(Bi-Amp, 0.6watt Peak Power of each power amplifier)
• Long operating range over 16km
• Air speed up to 6Mbps
• Link establishing/recover time 12-25ms
• Compact size of 57 x 55.5 x 15.7 mm
• Light weight less than 65g
• Point-to-Point and Point-to-Multipoint supported
• Optimized transmission for 1080P high definition video
• Support two remote controllers to control UAV and on board devices through the PPM port of Local Side Unit. And the On Board Unit outputs the control signals through one SBus port and two PPM ports synchronously
• Two transparent serial data link, the end to end delay less than 10ms
• Transparent TCP/IP transmission channel, provides most flexibility for IP based devices to apply on UAV platforms
• This model has advantages of light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.

Specification
