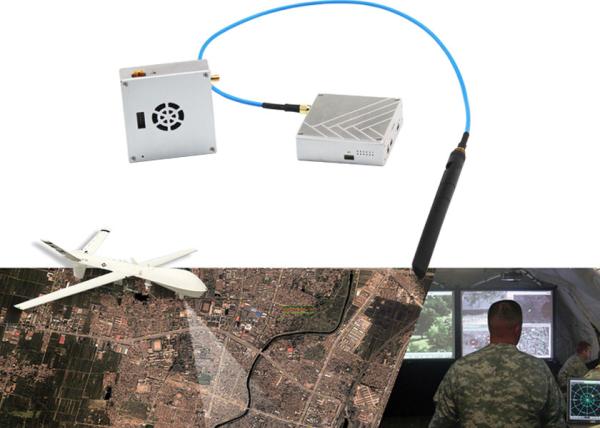

30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV
30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV
30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV
30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV
Specifications
Brand Name :
IFLY
Model Number :
FIM-2430
Certification :
CE,FCC
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200sets/month
Delivery Time :
5-8working days
Packaging Details :
1set/carton
Modulation :
TDD-COFDM
RF Power :
1.5watts
Working Temperature :
-40℃~+85℃
Range :
Air to ground 30-50km
Sensitivity :
-100dBm@4Mhz, -95dbm@8Mhz
Power Input :
DC7-18V
Dimension :
71*73*24mm
Latency :
50ms
Description

30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV

FIM-2430 is small in size, cigarette box size, easy to carry, often used for long-range wireless image transmission, aerial medium-distance wireless video transmission purposes. For example, special transmission: it can be used for wireless image transmission applications such as various robotic applications, light UAVs, ultra-light UAVs, rotorcrafts, micro-UAVs, unmanned submarines, unmanned vessels, unmanned vehicles, airships, target aircraft, unmanned power
parachutes, unmanned aerial vehicles, etc.

30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV

Main Features

  • Stable transmission of bi-directional data and video signals under high-speed mobile and multipath interference
  • Powerful LOS 30-50KM transmission capability
  • Frequency, bandwidth and other parameters can be directly adjusted by the software we supply.
  • Frequency has a wide range of applications.
  • Hot plugging is supported. Automatic Recognition of Audio and Video Sources
  • End-to-end low latency 50ms
  • Support two way RS232 and TTL
  • Support HDMI and Ethernet TCP/UDP input
  • AES/ABS 128-bit encryption

With our own Encoding&Decoding technology , latency within 70ms

30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV

Specification

Frequency

2.4GHz(2.402-2.482GHz)
Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 1.5Watts
Power Consumption TX: 17Watts/RX: 6Watts
Distance 30km
Bandwidth 4/8MHz
Video Input/output Interface On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bit rate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ Tx: 5db(Omni Antenna) /Rx: 14dbi 90°Directional Antenna
Video Color Space Default 4:2:0
Video Compressed Format AVC adds H.265 feature TS stream
Bit rate Software adjustment
Encryption AES128
Transmission Mode point to point
Start-up time 25s
Latency 50ms
Transmission Rate 3-5Mbps
Receive Sensitivity

-100dbm@4Mhz

-95dbm@8Mhz
Two-way function Support video and duplex data simultaneously
Data Support TTL/MAVLINK/Telemetry

Interface

(same interface on TX & RX)

 1. 1080P 60 HDMI Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x1
3. S1 TTL bidirectional serial port x1
4. S2 TTL bidirectional serial port x1
5. Power Input (DC7-18V) x1
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature: -40°C ~+85°C

Storage temperature: -55°C ~ +100°C
Dimension Tx: 74x71x23mm/ Rx: 74×71×23mm
Weight Tx: 148g, Rx: 148g
