30-50km UAV military surveillance Drone Video Transmitter/full duplex digital radio links
30-50km UAV military surveillance Drone Video Transmitter/full duplex digital radio links
30-50km UAV military surveillance Drone Video Transmitter/full duplex digital radio links
30-50km UAV military surveillance Drone Video Transmitter/full duplex digital radio links
Specifications
Brand Name :
IFLY
Model Number :
FIM-2430
Certification :
CE, FCC
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200sets/month
Delivery Time :
5-8working days
Packaging Details :
1set/carton
Encryption :
AES-128Bit
Range :
30-50km ari to ground NLOS
Frequency :
2.4Ghz
Power Input :
DC7-8V
RF Power :
1.5watts
Dimension :
73*71*24mm
Working Temperature :
-40℃~+85℃
Case :
NC technology double aluminum alloy housings
Description

30-50km UAV military surveillance Drone Video Transmitter/full duplex digital radio links

Description

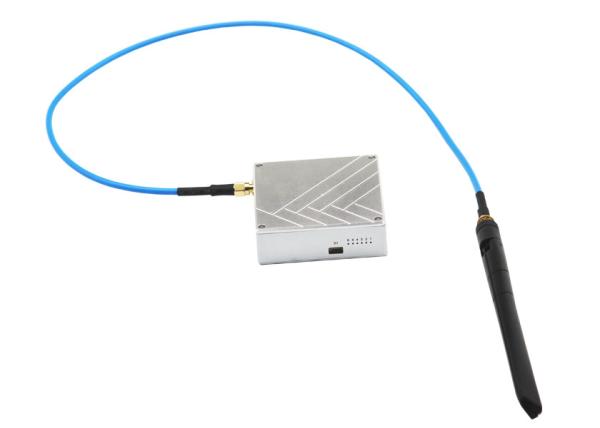

FIM-2430 is IFLY ultra long range UAV video data link, which have UHF and 2.4GHz two bands to meet the market different demands. FIM-2430 have HDMI ethernet and serial port to support two way video data transmission. Transmission range can up to 30km,Which is the best choice for FHD ultra long range UAV video data transmission.

Features:

  • Support double camera connection, HDMI and ethernet port optional
  • Support all open source flight controller, such as Pixhawk controller
  • The transmitter and receiver all are less than 148g
  • Low delay time, less than 30ms delay for whole system
  • Support FHD 1080P resolution
  • Small dimension,light weight, easy to carry, heat dissipation of aluminum case
  • Highly integrated modular combination design

Applications:
Our main products are COFDM, TDD and analog wireless video transmitter & receiver, which are widely used in city security, marine aquaculture surveillance, sea boat mobile surveillance, UAV, robots surveillance, automobile surveillance, etc.

30-50km UAV military surveillance Drone Video Transmitter/full duplex digital radio links

Specification

Frequency 2.4GHz(2.402-2.482GHz)
Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 2Watts
Power Consumption TX: 17Watts/RX: 6Watts
Distance 30km
Bandwidth 4/8MHz
Video Input/output Interface On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bit rate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ Tx: 5db(Omni Antenna) /Rx: 14dbi 90°Directional Antenna
Video Color Space Default 4:2:0
Video Compressed Format AVC adds H.265 feature TS stream
Bit rate Software adjustment
Encryption AES128
Transmission Mode point to point
Start-up time 25s
Latency 50ms
Transmission Rate 3-5Mbps
Receive Sensitivity

-100dbm@4Mhz

-95dbm@8Mhz
Two-way function Support video and duplex data simultaneously
Data Support TTL/MAVLINK/Telemetry

Interface

(same interface on TX & RX)

 1. 1080P 60 HDMI Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x1
3. S1 TTL bidirectional serial port x1
4. S2 TTL bidirectional serial port x1
5. Power Input (DC7-18V) x1
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature: -40°C ~+85°C

Storage temperature: -55°C ~ +100°C
Dimension Tx: 74x71x23mm/ Rx: 74×71×23mm
Weight Tx: 148g, Rx: 148g

Package List

30-50km UAV military surveillance Drone Video Transmitter/full duplex digital radio links

Item Qty
Tx 1
Rx 1
Tx Antenna 1
Rx Antenna 1
Antenna Cable 3
Ethernet Cable 3
TTL to USB Cable 4
TPlayer Software 1
HDMI Cable 2
Power Cable 4
Package Box 1
