40-45km Encrypted Long Range research and rescue drones video transmitter in 1.3Ghz/1.4Ghz
40-45km Encrypted Long Range research and rescue drones video transmitter in 1.3Ghz/1.4Ghz
40-45km Encrypted Long Range research and rescue drones video transmitter in 1.3Ghz/1.4Ghz
40-45km Encrypted Long Range research and rescue drones video transmitter in 1.3Ghz/1.4Ghz
Specifications
Brand Name :
IFLY
Model Number :
FIM-1440
Certification :
FCC, CE
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200sets/month
Delivery Time :
5-8working days
Packaging Details :
1set/carton
Bandwidth :
2/4/8Mhz
RF Power :
2.5Watts
Application :
Mapping drones, VTOL
Modulation :
DVB-T/DVB-T2/DVB-T2
Rx Antenna :
Directional Panel Antenna
Tx Antenna :
7dbi omni fiber glass antenna
Video Input :
HDMI
Video Output :
HDMI and Ethernet
Description

40-45km Encrypted Long Range research and rescue drones video transmitter in 1.3Ghz/1.4Ghz


Description

FIM-1440 is a long range HD video transmission system. This video system features long transmission distance, great image quality and low latency. The Max video transmission distance is about 45km supporting 1080P@60fps HDMI output and RJ45 Ethernet output.

With low power consumption and small size, which can reduce outdoor battery consumption and increase battery life cycle. Adopts the new generation of h.265 coding and compression standard, under the same code rate, the image quality is better and the details are richer than h.264.

Under the same transmission power and quality, the transmission distance can be effectively increased compared to h.264.
By using FIM-1440 video system, the video stream can be distributed via Ethernet and can be transmitted to monitor by HDMI and to PC by ethernet cable in real time. The DVB-T/DVB-T2/DVB-T2 modulating demodulation technology and H.265 video image coding scheme effectively reduce the transmission pressure of wireless channel and increases transmission distance.

Features

  • Frequency range: 1.300-1.399Ghz/1.400-1.499Ghz(Adjustable by software)
  • Video Input: HDMI
  • Resolution: HD 1080P

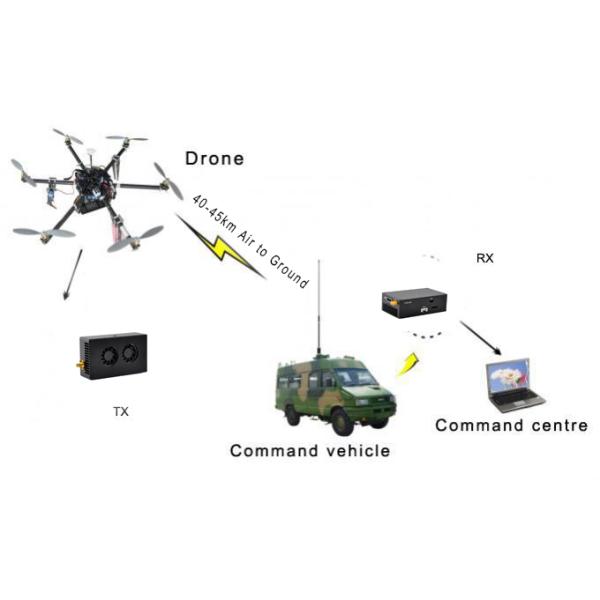

  • Distance: Air to ground 40-45km
  • Latency: 50ms
  • Operating temperature: -40—85℃
  • Dimension: Tx: 97mm×57mmx30mm/
  • Rx: 91mm×72mmx30mm
  • Weight: Tx:200g/Rx:202g

40-45km Encrypted Long Range research and rescue drones video transmitter in 1.3Ghz/1.4Ghz

Parameters
Wireless Channel1.400-1.499Ghz(Adjustable by software)
Communication Bandwidth2/4/8MHZ
RF Transmission Power2.5W
Data Rates1.5/3/6Mbps
RX Sensitivity-103dbm
Interfaces on Transmitter1080P60 HDMI RX×1
Power Input Interface--XT30 Industrial Grade ×1 DC 16-48V
USB 2.0--For linking configure software only.
SMA RF ×1
Interfaces on Receiver1080P60 HDMI Mini TX×1
LCD--Displaying RSSI and link state.
Buttons×5--For configuring receiver model.
Power Input Interface--XT30 Industrial Grade ×1 DC 9-24V
SMA RF ×2
Wireless Fault ToleranceFEC/MPEG
ModulationDVB-T/DVB-T2/DVB-T2
Distance Range

35-60km
Notes: True distance is related to the environment.

Total Latency50ms
Reconnection timeLess than 1s after signal has been recovered
Adjustment of COFDMQPSK one-way
Overall Consumption Power(Maximum)

Transmitter terminal: 25W
Receiver terminal: 12W

Temperature Range

Operating temperature: -40—85℃
Storage temperature: -55 - 125℃

Dimensions

TX: 97mm×57mmx30mm
RX: 91mm×72mmx30mm

RadiatorFancooler or aluminum heat sink
Gram

TX: 200g
RX: 202g
