Manpack Wireless Gateway and Router For High Speed nlos Video and Data Transmission

• High-speed wireless transmission: Based on 4G TD-LTE international standards. It supports 2 × 2 dual-antenna MIMO technology.

• High adaptability: high protection level support outdoor operation in harsh environment.

• High reliability: using software watchdog and hardware watchdog for dual-protection, knight-m2 provides multi-level link detection mechanism and automatic fault recovery mechanism.

• High security: Knight-m2 supports VPN functions like GRE, IPIP, PPTP, L2TP, and IPsec.

• Versatile functions: Route management, configuration import and export, dynamic domain name resolution, firewall, NAT, PAT, DMZ, DHCP, multi-IP-address configuration, link backup, and network status monitoring.

• Efficient use: knight-m2 provides traffic management technology and intelligent bandwidthdistribution technology and supports the SNMP protocol, customized EMS software, click-to-reset function. It does not need to be configured.

• Ease of maintenance: knight-m2supports automatic remote software upgrade.

• Customized development: supports customize and develop new functions based on industry requirements.

Product Highlights

➢2X2 MIMO Radio

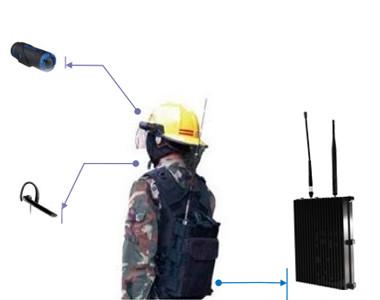

Knight-M2 is a 2X2 MIMO radio for individual-solider terminal collects audio and video information throught an external helmet camera and intercom headset in real time.

➢Ratio Configuration

Supports multiple uplink to downlink ratio configurations, including 3:1 for streaming dataintensive uplink services such as data collection, voice and video transmission.

➢Wide Frequency Range

The CPE Knight-M2 operates in multi broadband frequency 400Mhz, 600Mhz, 1.4Ghz and 1.8Ghz.

Key Features

➢ Support a variety of services such as voice, video and GPS or Beidou positioning

➢ It is wearable design for use in portable and embedded applications where have high requirement of size and weight.

➢ Large capacity lithium battery for long time continuously working

➢ Equiped with HD action camera for hd video stream

➢ Easy maintenance: web based user-friendly interface for operation and maintenance

Specification
