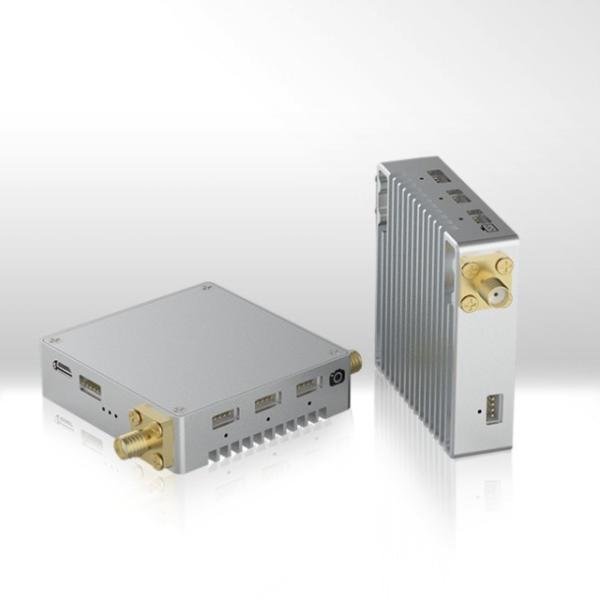

7-8km 800Mhz UAVs video and mavlink downlink radio IP Camera
7-8km 800Mhz UAVs video and mavlink downlink radio IP Camera
7-8km 800Mhz UAVs video and mavlink downlink radio IP Camera
7-8km 800Mhz UAVs video and mavlink downlink radio IP Camera
Specifications
Brand Name :
IFLY
Model Number :
FNS-8408
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500sets/month
Delivery Time :
5-8days
Packaging Details :
Standard Packing
Frequency :
800Mhz, 1.4Ghz, 2.4Ghz
Bandwidth :
8Mhz
Antenna :
2T2R
RF Power :
400mW
Range :
7-8km
Serial Date :
Full-duplex
Video Input :
RJ-45
Encryption :
AES128
Description

7-8km 800Mhz UAVs video and mavlink downlink radio

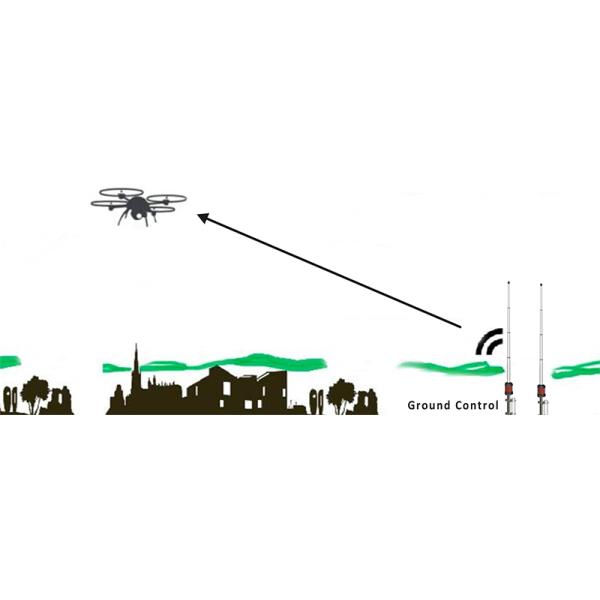

The IFLY FNS-8408 Airborne Video Downlink System is a comprehensive aerial-based video transmission solution that delivers real-time surveillance that enhances law enforcement, emergency and critical infrastructure operations. FNS-8408 is comprised of an integrated suite of downlink transmitters, receivers and antennas that capture real-time, reliable high-definition video from drones, helicopters and other aircraft for display at command centers, mobile units and on video management systems.

Frequency Option

➢ 800Mhz: 806-826Mhz

➢ 1.4Ghz: 1428~1448 MHz

Key Features

➢ 3*100Mbps Ethernet port support 2way TCP/UDP and IP Camera access to

➢ Dual Tx antenna and Rx antenna for stable signal transmission

➢ AES128 bit encryption

➢ Transmission rate upto be 6Mbps

➢ 1*Serial port support MAVLINK TELEMETRY

➢ Serial Data: (Voltage:+-13V(RS232), 0~3.3V(TTL)

FNS-8408, which has been deployed by law enforcement agencies, adds an additional layer of safety and security to missions being carried out on the ground. It can play an essential role in surveillance, assessment and deployment operations. FNS-8408 is a critical tool for improving situational awareness by giving those on the ground a clear and reliable picture of what is being captured from airborne units.

7-8km 800Mhz UAVs video and mavlink downlink radio IP Camera

Specifications
Frequency 800Mhz 806~826 MHz
1.4Ghz 1428~1448 MHz
Bandwidth 8MHz
RF Power

0.4Watt

(Bi-Amp, 0.4watt Peak Power of each power amplifier)
Transmit Range

800Mhz: 7km

1400Mhz: 8km
Transmit Rate

6Mbps (Video Stream, Ethernet Signal and serial data share)

The best video stream: 2.5Mbps
Baud Rate 115200bps(Adjustable)
Rx Sensitivity -104/-99dbm
Fault Tolerance Algorithm Wireless baseband FEC forward error correction
Video Latency The video not be compressed. No latency
Link Rebuild Time <1s
Modulation Uplink QNSK/Downlink QNSK
Encryption AES128
Start Time 15s
Power DC-12V (7～18V)

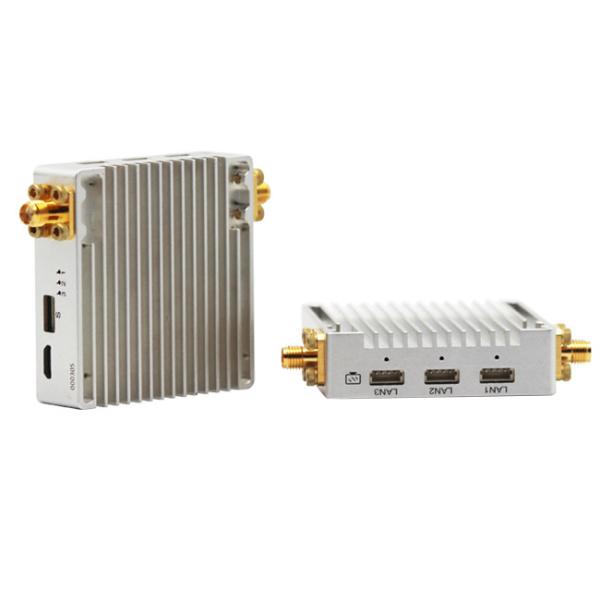

Interface

Interfaces on Tx and Rx are same

  • Video input/Output: Ethernet×3
  • Power Input Interface×1
  • Antenna Interface: SMA×2
  • Serial×1: (Voltage:+-13V(RS232), 0~3.3V(TTL)
Indicators
  • Power
  • Ethernet Status Indicator
  • Wireless Connection Setup Indicator x 3
Power Consumption

Tx: 4W

Rx: 3W
Temperature

Working: -40 ~+ 85℃

Storage: -55 ~+85℃
Dimension Tx/Rx: 57 x 55.5 x 15.7 mm
Weight Tx/Rx: 65g
Design CNC Technology
Double Aluminum Alloy Shell
Conductive anodizing craft

7-8km 800Mhz UAVs video and mavlink downlink radio IP Camera
