7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
Specifications
Brand Name :
IFLY
Model Number :
F-2127MW
Certification :
FCC, CE, RoHS
Place of Origin :
CHINA
MOQ :
1Set
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/month
Delivery Time :
3-5working days
Packaging Details :
1set/box
RF Power :
7.5Watts
Frequency :
1.2Ghz
Working Voltage :
DC12V
Video Format :
PAL/NTSC
Function :
Video & Audio
Modulation :
FM
TX Weight :
300g
RX Weight :
138g
Description

7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission

Introduction

F-2127MW is a portable wireless video transmission device with high performance/price ratio. It features small size, low power consumption and good penetrability. The device is especially applicable to one-person operation that requires proper camouflage and small-size battery. The specially-designed A/V interfaces may be directly connected to the vide recorder and supply power for the recorder, there is no unwanted interface and some space is saved, it’s easier to carry with. The device is applicable to the work demands of criminal detection, concealed detection, fieldwork and special tasks.

Specification Sheet

Indexes of the microwave image transmitter
Working frequency 1100Mhz, 1140Mhz, 1180 MHz
1120Mhz, 1160Mhz, 1200 MHz
1240Mhz, 1280Mhz, 1320Mhz, 1360 MHz
Video input Analog AV video signal
Input audio 0.1～1.0
0.1-1.0 peak value
Working voltage 12VDC 600mA
Modulation mode FM
Modulation bandwidth 40MHz
Video mode PAL
Size: 140*51*21mm
Weight 310g
Indexes of the microwave image receiver
Input frequency 1100Mhz, 1140Mhz, 1180 MHz
1120Mhz, 1160Mhz, 1200 MHz
1240Mhz, 1280Mhz, 1320Mhz, 1360 MHz
Input impedance 50Ω
Video mode PAL/NTSC
Video output AV
Analog AV video signal
Working voltage 12VDC/500mA
Size 137*80*20mm
Weight 138g
Ambient temperature -20~+55°C

Package List

7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission 7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission 7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission 7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
Transmitter Receiver Antenna Video Cable
Note:
The video cable including power input, video input, audio input and power output

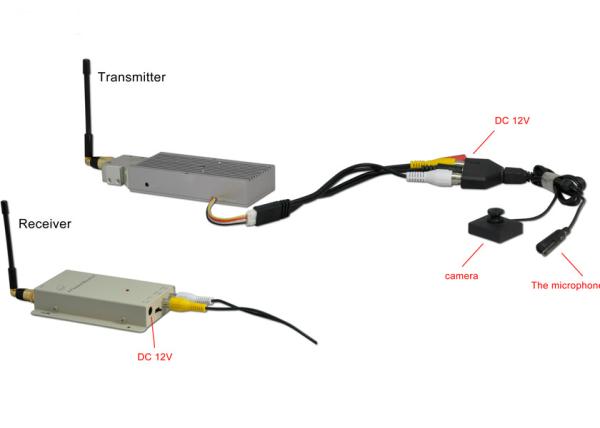

Connection

7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission

Product Details

7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission

7.5W Wireless mini AV Sender 1.2ghz Long Range Security Analog Video Transmission
