Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
Specifications
Brand Name :
HAOKAI
Model Number :
Air Blown cable
Certification :
ROHS/ISO/UL/SGS
Place of Origin :
Dongguan
MOQ :
10000m
Price :
By negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000m/day
Delivery Time :
1-5work days
Packaging Details :
Wooden/Pellet
Tensile Strength :
1000N
Cable Weight :
10kg/km
Fiber Type :
Single-mode
Standards :
IEC, UL, RoHS
Fiber Wavelength :
1310nm/1550nm
Installation Method :
Blowing
Operating Temperature :
-40°C to +70°C
Cable Color :
Black
Fiber Count :
12
Fiber Attenuation :
≤0.4dB/km
Description

Outdoor Singlemode Duct Micro Air Blown Cable Gcyfty Stranded Loose Tube Air Blown Fiber Cable

Company Certifications
Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct


Product Descripition

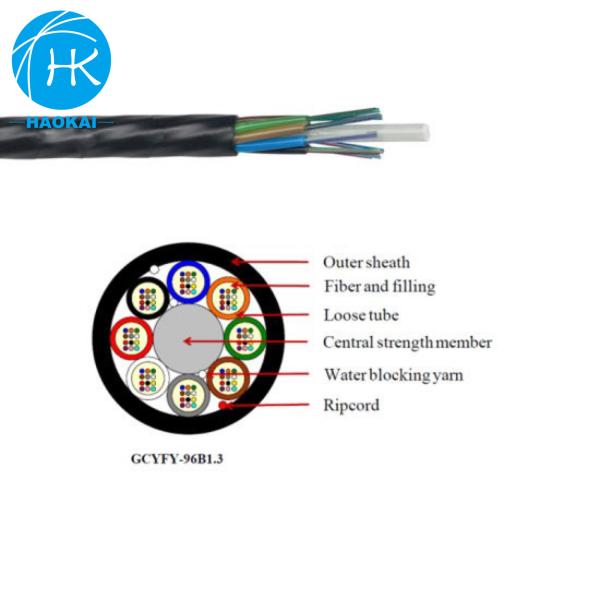

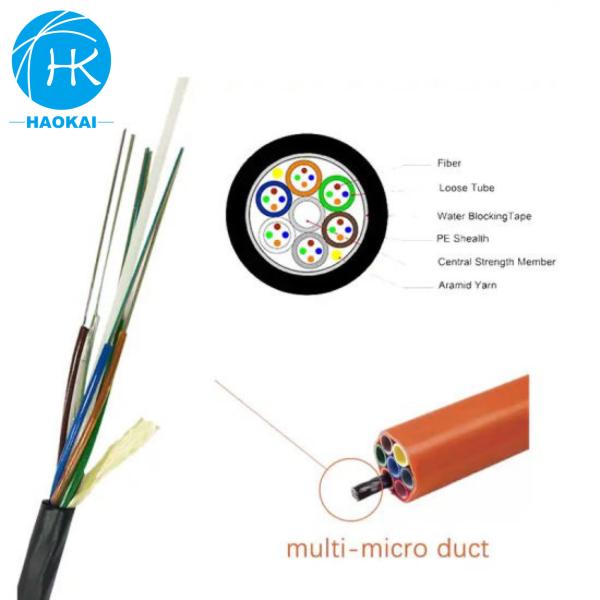

Air blowing fiber, also known as jet fiber, is an efficient way to install fiber optic cable and facilitates the future expansion of fiber optic networks. The structure of this cable is put 250µm single-mode or multi-mode optical fiber into a loose tube, the loose tube is made of high modulus material, which is filled with non-toxic and harmless waterproof compounds. The FRP strength member is put in the central tube to strengthen the cable. Outside of the loose tube is with Ripcord and polyethylene (HDPE) sheath.

Product application
● Air blowing installation.
● Underground networks.


Product characteristics

● The unique second coating and stranding technology provide the fibers with enough space and bending

  • ● Endurance, which ensure good optical property of the fibers in the cable
  • ● Accurate process control ensures good mechanical and temperature performance
  • ● High quality raw material guarantees the long service life of cable

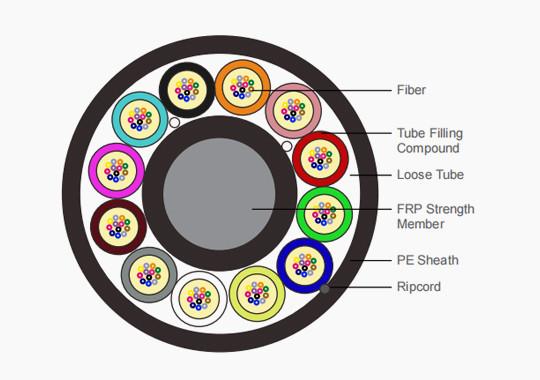

  • Cable Parameters
  • Air Blown Fiber Optical Cable Outdoor Single Mode Fiber Microduct
