Energy Storage Battery Silent Integrated ESS Liquid Cooling With BMS PCS Dual Monitoring Emergency

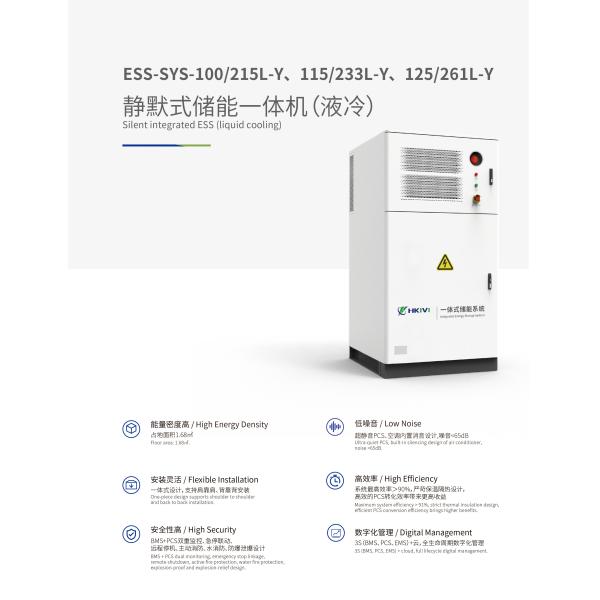

The ESS-SYS-100/215L-Y is an advanced silent integrated energy storage solution designed for commercial and industrial applications where noise reduction and high performance are critical requirements. This liquid-cooled system combines cutting-edge energy storage technology with sophisticated thermal management to deliver a complete power solution suitable for noise-sensitive environments such as urban areas, hospitals, campuses, and office buildings.

As an all-in-one energy storage system, the ESS-SYS-100/215L-Y integrates multiple critical components into a single, optimized package:

• Battery modules: Utilizing lithium iron phosphate (LFP) chemistry for enhanced safety and longevity

• Power Conversion System (PCS): Enabling bidirectional power flow between storage and grid

• Energy Management System (EMS): Advanced control platform for system monitoring and optimization

• Liquid-cooled thermal management: Innovative silent cooling technology with precise temperature control

• Safety systems: Multi-layer protection including integrated fire detection and suppression

The "Y" designation indicates its specialized electrical architecture designed for enhanced reliability through redundancy and fault tolerance. This configuration allows for continued operation even if individual components experience issues, making it particularly suitable for mission-critical applications

Core Technologies and Innovations

Advanced Battery Technology

The ESS-SYS-100/215L-Y utilizes lithium iron phosphate (LFP) battery chemistry, which offers superior safety characteristics and cycle life compared to other lithium-ion variants. The system features:

• Cell-level optimization: Each battery cell is individually monitored and balanced by the Battery Management System (BMS) to ensure uniform performance and longevity

• Thermal runaway prevention: Innovative design effectively contains thermal events within individual battery packs, preventing propagation to the entire system

• Long cycle life: Engineered for 6,000+ cycles at 80% depth of discharge (DOD), significantly reducing levelized cost of storage (LCOS)

Silent Liquid-Cooling Technology

The system incorporates innovative liquid cooling technology to achieve both ultra-low noise operation and precise thermal management:

• Low-noise pump design: Specially engineered circulation pumps with vibration isolation

• Precision temperature control: Maintains cell-to-cell temperature variation ≤3°C for optimal performance and longevity

• Acoustic insulation: Sound-absorbing materials integrated throughout the enclosure

• Intelligent flow control: Coolant flow dynamically adjusted based on thermal load to minimize noise when full cooling capacity isn't required

This comprehensive approach results in operational noise levels below 55 dB(A) at 1 meter distance - comparable to normal conversation volume - while providing superior thermal performance compared to air-cooled alternatives.

Intelligent Power Conversion

The integrated power conversion system features:

• High-efficiency topology: Minimizes energy losses during charge/discharge cycles (peak efficiency >98.5%)

• Bidirectional power flow: Seamless transition between charging and discharging modes with response times <100ms

• Wide voltage range operation: Compatible with various grid conditions and battery states of charge

• Grid-support functions: Including reactive power compensation and frequency regulation capabilities

Advanced Safety Systems

The ESS-SYS-100/215L-Y incorporates a comprehensive multi-level safety architecture:

1. Integrated fire suppression: Combining perfluorohexanone and water-based systems for rapid thermal event containment

2. Multi-sensor monitoring: Temperature, smoke, CO/H2 concentration, and PM2.5 detection

3. Three-level fuse protection: Pack-level, cluster-level, and PCS-level fusing

4. Pressure relief mechanisms: At cell, pack, and system levels to prevent gas accumulation

Application Scenarios and System Integration

Commercial & Industrial Energy Management

The ESS-SYS-100/215L-Y is ideally suited for C&I energy applications:

• Peak shaving: Reducing demand charges by discharging during peak periods

• Energy arbitrage: Storing energy when prices are low and using when prices are high

• Backup power: Providing uninterrupted power during outages

• Power quality improvement: Mitigating voltage sags and harmonics

Renewable Energy Integration

The system excels in renewable-plus-storage configurations:

• Solar PV pairing: Storing excess solar generation for use at night or during cloudy periods

• Wind energy firming: Compensating for wind variability

• Microgrid support: Serving as a key component of independent energy systems

Specialized Applications

• Urban deployments: Where noise restrictions limit conventional ESS installations

• Healthcare facilities: Providing clean, quiet backup power for critical medical equipment

• Educational institutions: Supporting sustainability initiatives without disrupting learning environments

• Office buildings: Enabling energy cost savings without compromising workplace comfort
