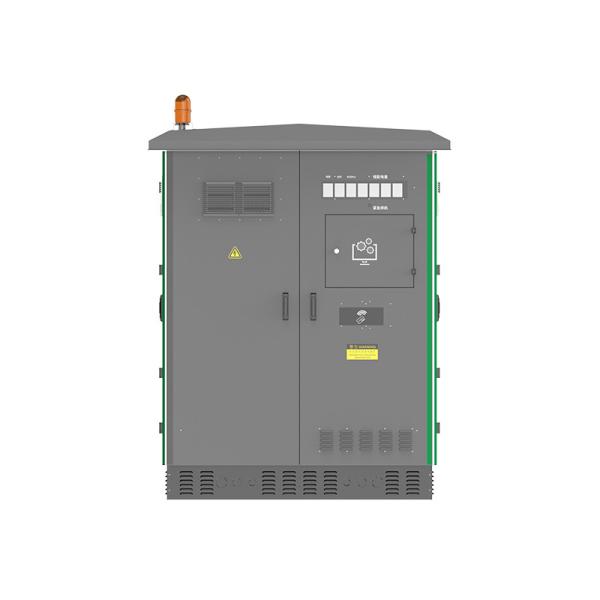

Ground Static Variable Power Supply With Intelligent EEMS Energy Storage Battery

A Ground Static Variable Power Supply (GSVPS) represents a specialized class of power conversion equipment designed to provide stable, adjustable electrical power while maintaining critical grounding characteristics for sensitive applications. These systems combine the precision of modern power electronics with robust grounding architectures to serve industries ranging from semiconductor manufacturing to aerospace testing.

The GSVPS typically incorporates several key subsystems:

• Power conversion module: Utilizing advanced IGBT or SiC-based topology for efficient AC-DC or DC-DC conversion

• Variable output control: Precision circuitry allowing wide-range output adjustment with minimal ripple

• Ground reference system: Dedicated grounding architecture ensuring stable reference potential

• Protection circuits: Comprehensive safeguards including overvoltage, overcurrent, and ground fault protection

• Monitoring interface: Digital controls and measurement systems for parameter verification

These systems are particularly valuable in applications requiring both power variability and exceptional ground stability, such as:

• Semiconductor fabrication equipment

• Medical device testing

• Aerospace component validation

• High-precision laboratory instrumentation

• Telecommunications infrastructure

Core Technologies and Innovations

Advanced Power Conversion

Modern GSVPS systems employ cutting-edge wide bandgap semiconductor devices (SiC/GaN) that offer:

• Higher switching frequencies (up to 500kHz) for reduced output ripple

• Improved thermal performance enabling higher power densities

• Enhanced efficiency (typically >95%) across wide load ranges

• Smaller form factors compared to traditional silicon-based designs

The power conversion topology often combines:

• PFC (Power Factor Correction) stage: Maintaining >0.98 power factor even at partial loads

• LLC resonant converters: For soft-switching operation and reduced EMI

• Synchronous rectification: Minimizing conduction losses in DC output stages

Precision Grounding Architecture

The grounding system in GSVPS represents a key differentiator, featuring:

• Isolated ground reference: Separate from power ground to prevent noise coupling

• Active ground stabilization: Continuously monitored and adjusted reference potential

• Multi-point grounding: For large systems requiring distributed reference planes

• Ground loop mitigation: Advanced techniques to prevent circulating currents

This architecture ensures ground potential stability within ±10mV even during dynamic load changes, critical for sensitive measurement applications.

Intelligent Control Systems

Modern GSVPS incorporate sophisticated digital control featuring:

• Adaptive PID algorithms: Automatically tuning response characteristics based on load conditions

• Predictive maintenance: Monitoring component degradation trends to prevent unexpected failures

• Remote monitoring capabilities: Supporting Industry 4.0 integration through IoT protocols

• Sequence programming: Allowing complex power-up/down profiles for sensitive devices

Application Scenarios

Semiconductor Manufacturing

In semiconductor fabs, GSVPS systems provide:

Stable power for plasma etchers and implanters

Ultra-clean ground reference for sensitive measurement equipment

Rapid voltage transitions for process sequencing

Precise current control for electrochemical processes

Research Laboratories

In scientific applications, these systems provide:

Medical Equipment

GSVPS enables:

Aerospace Testing

For aircraft and spacecraft systems, GSVPS offers:

• Noise-free power for sensitive instruments

• Programmable power profiles for experimental setups

• Precise ground referencing for measurement systems

• Stable operation for long-duration experiments

• Safe power delivery for patient-connected devices

• Leakage current testing per IEC 60601-1

• Ground continuity verification

• Burn-in testing of critical medical systems

• Ground fault testing under controlled conditions

• Simulated power bus conditions with controlled ground references

• MIL-STD-704 compliance testing capability

• Transient immunity validation
