Specifications
Brand Name :
HRS
Model Number :
HRS DF49-20P-SHL
Certification :
ISO9001
Place of Origin :
China
MOQ :
quantity can be negotiable
Price :
Most favorable
Payment Terms :
T/T, Western Union
Supply Ability :
500,000pcs/week
Delivery Time :
2-3 weeks for samples3-4 weeks for massive
Packaging Details :
PE inner, carton outer
Product name :
DF49-20P 0.4SD Extremely Fine Coaxial Harnesses DF49-20P-SHL
Connector :
DF49-20P-SHL
Micro-Coaxial Wire (AWG) :
#42(0.25A), #44(0.2A), #46(0.5A)
Item :
Micro Coaxial cable
Pin-out :
20 40
Length :
customize
Express :
DHL FEDEX UPS TNT
Description
ROHS HRS Micro Coaxial Cable assembly DF49-20P 0.4SD Extremely
Fine Coaxial Harnesses DF49-20P-SHL OEM/ODM

Electrical and Environmental Specifications:

SpecificationDetails
Insulation Resistance50 Mø min. at 100 V DC
Withstanding VoltageNo flashover or insulation breakdown at 100 Vrms AC / 1 minute
Contact ResistanceSignal: 80mø max, Ground: 80mø max at 100 mA (DC or 1,000Hz)
VibrationNo electrical discontinuity of 1 μs or longer at 10 to 55 Hz, single amplitude of 0.75mm, 10 cycles in each of the 3 directions
HumidityContact resistance (change from initial value): 50 mø max. Insulation resistance: 25 Mø min. 96 hours at 40 ±2°C, and humidity of 90 to 95%
Temperature CycleContact resistance (change from initial value): 50 mø max. Insulation resistance: 25 Mø min. -55°C → 5 to 35°C → 85°C → 5 to 35°C Time: 30 min. → 2 to 3 min. → 30 min. → 2 to 3 min. 5 cycles
DurabilityContact resistance (change from initial value): 50 mø max. 30 cycles
Resistance to Soldering HeatNo deformation affecting performance. Reflow: At the recommended temperature profile. Manual soldering: 350°C for 3 seconds.

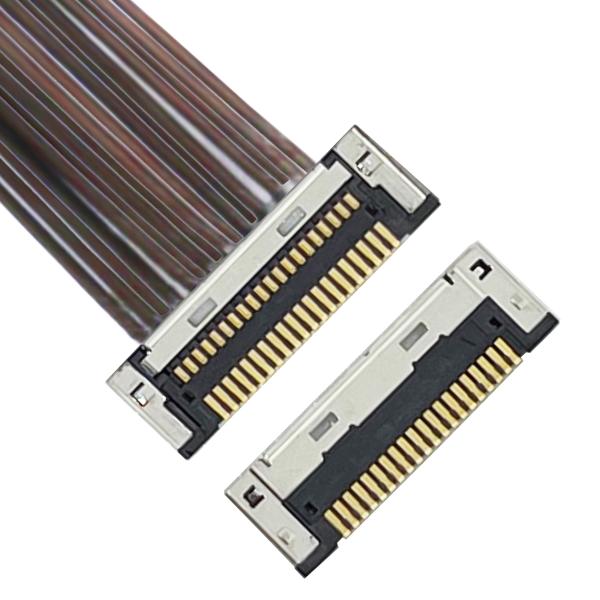

DF49-20P Micro Coaxial Cable 0.4SD Extremely Fine Coaxial Harnesses DF49-20P-SHL
DF49-20P Application:
Flat panel display / Professional TV camera / LCD / AI equiment / UAV
DF49-20P Micro Coaxial Cable 0.4SD Extremely Fine Coaxial Harnesses DF49-20P-SHL
DF49-20P Micro Coaxial Cable 0.4SD Extremely Fine Coaxial Harnesses DF49-20P-SHLDF49-20P Micro Coaxial Cable 0.4SD Extremely Fine Coaxial Harnesses DF49-20P-SHLDF49-20P Micro Coaxial Cable 0.4SD Extremely Fine Coaxial Harnesses DF49-20P-SHL

Q1. Is it a factory?
A: Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A: We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.

How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
