Specifications
Brand Name :
Helor PC
Model Number :
X34 6LAN
Certification :
Ce, Rohs, Sgs
Place of Origin :
ShenZhen GuangDong China
MOQ :
1 Pieces
Price :
$90.00 ~ $150.00 / Piece/Pieces
Payment Terms :
T/T
Supply Ability :
1500 Pieces
Delivery Time :
15 work days
Packaging Details :
Carton Box
CPU :
Intel Celeron 2955U, Intel Core i3-4010U/ i5-4200U/ i3-5010U
GPU :
Intel HD Graphics: 2955U; Intel HD Graphics 4400: i3-4010U/i5-4200U; Intel HD Graphics 5500: i3-5010U
Memory :
DDR3L 1066/1333/1600MHz, 1.35V
Hard Disk :
SSD:1*Full Height mSATA socket, HDD:1*SATA2.5"HDD
LAN :
6*RJ45 LAN(10/100/1000/ intel 211AT Gigabits Ethernet)
Extension :
1* Full Height Mini PCIe
HDMI :
Maximum resolution 3200×2000 @60Hz
Operating System :
Windows 7/Windows 8/Windows 10, Linux, PFSense, etc

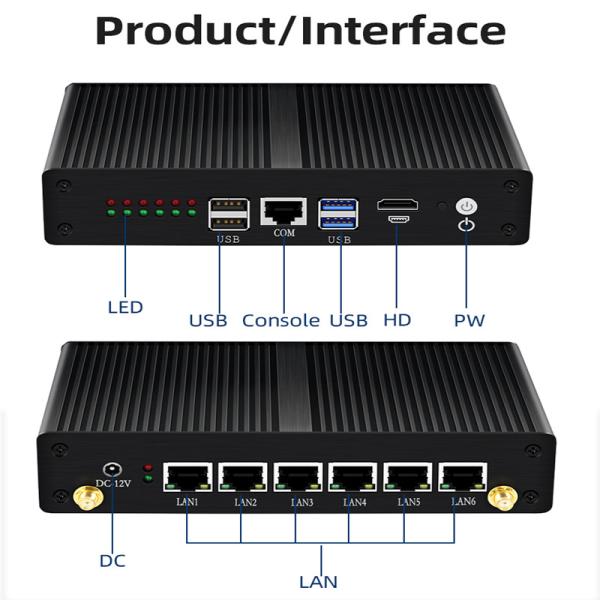

I/O Port :
2*USB3.0, 2*USB2.0, 1*HDMI, 6*RJ45 LAN, 1*RS232 COM, 1*DC 12V, 1*Power button, 1*HD
Power :
Power Type:DC-IN5.5*2.5, Power Input Vol:12V, Power Input Ampere:5A
Dimensions :
122mm*175mm*38mm; about 0.8KG
Operating Temperature :
-20-65℃
Storage Temperature :
15℃-35℃
Relative Humidity :
5%~95% (non-condensing)
Material :
Aluminum Alloy
Color :
Black
Description

This 6 LAN Firewall Router with fanless cooling system, noiseless, stable heat dissipation, with more stable running. This Mini Computer enboard 2955U I3 I5 I7 4th 5th Gen processor, low consumption, save power. As a 6 LAN Mini PC, support VPN, broardband overlay, behavior management, intelligent flow control, one-line multi-dial. On the other hand, this Mini Desktop support windows 10, windows 8, windows 7, Linux, Centos, etc, suitable for computer room, internet cafes, network server, hotel, enterprise, etc.

Product Details

CPU

(Support customization)

Intel Celeron 2955U: 2M Cache, 1.40 GHz, 2 Core 2 Threads, TDP: 15W

Core i3-4010U: 3M Cache, 1.70 GHz, 2 Core 4 Threads, TDP: 15W

Core i5-4200U: 3M Cache, up to 2.60 GHz, 2 Core 4 Threads, TDP: 15W

Core i3-5010U: 3M Cache, 2.10 GHz, 2 Core 4 Threads, TDP: 15W
GPU

Intel Celeron 2955U: Intel HD Graphics (Haswell GT1)

Core i3-4010U/ i5-4200U: Intel HD Graphics 4400

Core i3-5010U: Intel HD Graphics 5500
Memory 1*DDR3L 1066/ 1333/ 1600MHz, 1.35V
Hard Disk 1*Full Height mSATA socket SSD; 1*SATA2.5" HDD
LAN 6*RJ45 LAN(10/100/1000/ intel 211AT Gigabits Ethernet)
Extension 1* Full Height Mini PCIe
HDMI Maximum resolution 3200×2000 @60Hz
Operating System Windows 7, Windows 8, Windows 10, Linux, PFSense, etc
I/O Port 2*USB3.0, 2*USB2.0, 1*HDMI, 6*RJ45 LAN, 1*RS232 COM, 1*DC 12V, 1*Power button, 1*HD
Power Power Type:DC-IN5.5*2.5, Power Input Vol:12V, Power Input Ampere:5A
Dimensions 122mm*175mm*38mm, about 0.8kg
Working Environment Operating Temperature: -20-65℃, Storage Temperature: 15℃-35℃, Relative Humidity: 5%~95% (non-condensing)
Material Aluminum Alloy
Color Black
