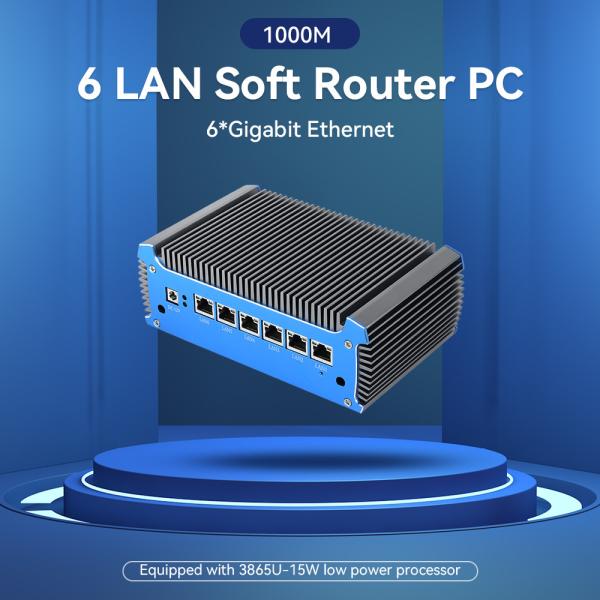

The Soft Router PC is powered by the Intel Celeron 3865U processor. This processor features a 2M cache and has a maximum clock speed of up to 1.80 GHz. With 2 cores and 2 threads, it offers reliable performance for handling various networking tasks. The TDP of just 15W ensures efficient power consumption, making it an energy-efficient choice for your soft router needs.
Whether you're setting up a home network or a small business network, this Soft Router PC with the Intel Celeron 3865U processor can provide stable and efficient routing capabilities.
Introducing our Soft Router Mini PC, designed with a fanless passive cooling and heat sink system. The absence of a fan means absolute silence during operation. You won't be disturbed by any fan noise, making it ideal for use in quiet environments such as home offices, bedrooms, or libraries.
The passive cooling and heat sink system effectively dissipates heat, ensuring stable performance even during long hours of continuous use. It not only keeps the mini PC running cool but also enhances its reliability and longevity. With its compact size and silent operation, this Soft Router Mini PC is a perfect choice for those who demand both functionality and a peaceful computing experience.
CPU | Intel Celeron 3865U Processor, 2M Cache, up to 1.80 GHz, 2 Core 2 threads, TDP: 15W |
GPU | Intel HD Graphics 610 |
Memory | 1*DDR4 RAM (2133 / 2400MHz), 2GB / 4GB / 8GB, Maximum capacity: 8G |
Hard Disk | 1*MSATA SSD, 1*2.5 inch SATA HDD / SSD |
Ethernet | 6*1000Mbps Intel i211AT, Support Wake on LAN and Auto Power On |

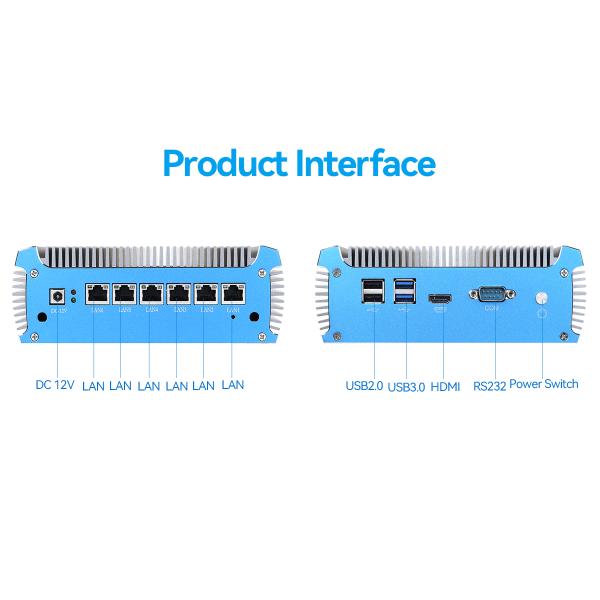

I/O Port | 2*USB 2.0, 2*USB 3.0, 6*LAN, 1*HDMI, 1*RS232 COM, 1*DC, 1*Power Switch |
Extension | 1*Full height size Mini PCIE Slot |
Operating System | ESXi, OPenWrt, etc. |
Cooling System | Fanless passive Cooling & Heat Sink |
Power Requirement | 1*DC 12V 5A / 60W (AC TO DC, 100 ~ 240V) |
Size | 183mm*109mm*62.6mm |
Weight | About 2KG |
Material | Aluminum Alloy |
Installation | VESA / Wall mounted / Desktop mounted |
Working Environment | Operating Temperature: -20 to 65℃, Storage Temperature: -20℃ to +85℃ (15℃ to 35℃ Recommended), Relative Humidity 5%~95% (non-condensing) |
Package Contents | 1 x Mini PC, 1 x User manual, 1 x Power Cord |
Soft Router Mini PC that is equipped with 6 * 1000Mbps Intel 211AT interfaces. This ensures incredibly fast and reliable network connectivity, providing smooth data transfer and seamless networking experiences. Additionally, the built-inWake on LAN feature allows for remote activation, allowing you to easily wake your device from sleep or powered off state. Another convenient feature, the auto power on function, ensures that your device automatically starts up at a preset time or under specific conditions, providing ultimate convenience.
The Soft Router Mini PC is a highly versatile and powerful networking solution, offering users enhanced connectivity options with its multiple WAN ports. Its unique feature of independently modifying WAN/LAN settings gives users greater control over their network configuration. Additionally, the Soft Router Mini PC allows users to set up broadband overlay, which optimizes network performance.
This mini PC supports 7*24H stable operation. Whether you're running a business, managing a network, or simply need a reliable computing solution around the clock, this mini PC is up to the task. With its robust construction and advanced components, it can handle heavy workloads and demanding applications without faltering.
