Industrial Intel Celeron N4000 Mini PC RS485 Linux DDR4 8GB Fanless Mini Computer

Specifications

Brand Name :

Helor PC

Model Number :

X30G N4000

Certification :

Ce, Rohs, Sgs

Place of Origin :

China

MOQ :

1 Piece

Price :

Negotiable

Payment Terms :

T/T

Supply Ability :

500 Pieces

Delivery Time :

15 work days

Packaging Details :

Carton Box

CPU :

Intel Celeron N4000 Processor

GPU :

Intel UHD Graphics 600

Memory :

1* Single Channel SODIMM, DDR4

Hard Disk :

1* M.2 2280 + 1* 2.5 inch SATA

Description

Fanless Industrial PC Celeron N4000 RS485 Linux DDR4 8GB Mini Computer

Name: Industrial Intel Celeron N4000 Mini PC RS485 Linux DDR4 8GB Fanless Mini Computer
Brand: Helor PC
Price: 1 USD

Fanless Industrial PC Description:

This is a fanless mini industrial PC, integrated with Intel Celeron N4000 on the motherboard. The mini industrial computer comes with dual LAN (2* RJ45) and four COM (1* RS232/RS485 + 3*RS232), widely used in buisiness, banking, securities, telecommunications, industrial automation, and other fields.

This mini PC supports to be installed with Windows 10, Linux, Ubuntu or Centos, etc., so it also can be used as an ordinary mini desktop computer or personal computer for home, office, business, students, etc. In addition, with the rich interfaces of 2* HDMI, 2*RJ45, 4*COM, 5*USB 3.0, and 3*USB 2.0, there is an easy interconnection between devices.

Fanless Industrial PC Details:

Fanless Industrial PC Details
CPU	Intel Celeron N4000 Processor
GPU	Intel UHD Graphics 600
Memory	1* Single Channel SODIMM DDR4, up to 8GB
Hard Disk	1* M.2 2280 SSD + 1* 2.5 inch SATA HDD/SSD
Ethernet	2* Realtek Gigabit Ethernet(RTL8111H/8111G)
WiFi	1*Half-Height Mini PCIe
Triple Display	2* HDMI on external interface + 1 * LVDS on internal connectors, support 4K @60Hz

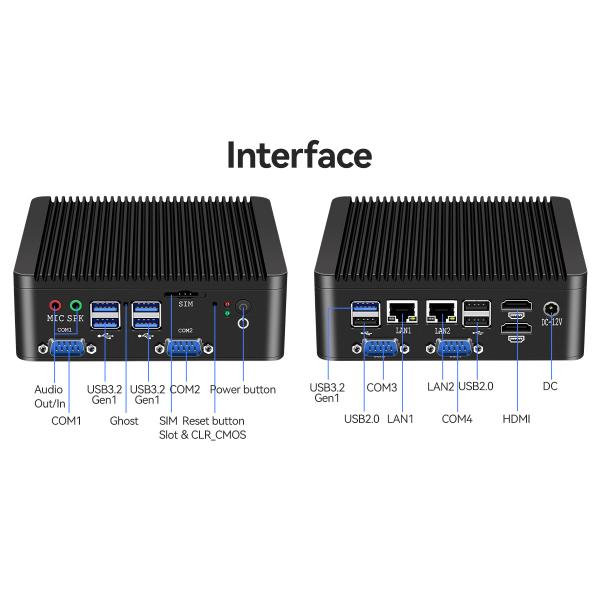

External Interface	1* DC-IN, 2* HDMI, 5* USB3.2 GEN1(5Gbps), 3* USB2.0, 2* LAN, 1* MIC-IN, 1* HP-OUT, 1* REC (Ghost button (one-key system restore), 1* RST (Reset button & CLR_CMOS button), 2* LED, 1* HDD LED (Red), 1* WIFI and 4G module states (Green), 1* PWR_BT
Internal Connectors	1Debug, 1LVDS, 1SATA_PWR, 1SATA, 1COM_CONN (4COM RS232, support RS232 / RS485 set on COM1), 1JFP (auto power on set up jumper), 1GPIO, 1Audio, 1Speaker, 1*F_USB2.0
Power	Input: AC 100-240V 50-60Hz, Output: DC 12V 3A
OS	Win 10/8, Linux, Ubuntu,Centos, etc.
Features	Support WiFi, 3G/4G Lte. Support Wake UP on LAN, S5 RTC Wake Settings (Power on at a set time), PXE Boot, Restore on AC powe loss (Auto Power on)
Operating Temperature	-20~60℃
Storage Temperature	-30~70℃(15℃-35℃ Recommended)
Relative Humidity	10%~90% ℃ (No condensation)
Dimensions	136 x 126x 46mm, weight: about 0.65kg
Cooling System	Fanless Passive Cooling

Fanless Industrial PC Hard Disk:

The fanless industrial PC equipped with 1*M.2 2280 SSD and 1*2.5 inch SATA hard disk, high and low temperature resistance, low power consumption, high-speed reading more stable.
