Specifications
Brand Name :
Helor PC
Model Number :
X83
Certification :
Ce, Rohs, Sgs
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500 Pieces
Delivery Time :
15 work days
Packaging Details :
Carton Box
CPU :
Intel Atom E3940 Processing 4 Cores 4 Thread
RAM :
1*DDR3L SODIMM, up to 8GB
Ethernet :
2*INTEI-I211/1000 MB LAN, Support wake-up on LAN and PXE boot
Hard Disk :
1*MSATA HDD/SSD, 1*M2 NGFF 2242 SSD
Operating System :
Windows 10, Windows 11,Linux, etc.
Expansion Slot :
1*MINIPCIE Solt, Support WIFI and 3G/4G module
Description

Intel Atom E3940 DDR3L 8GB Industrial PC Dual LAN Dual COM Fanless Mini Computer

Industrial PC Description:

This industrial mini PC, powered by Intel Atom E3940 DDR3L processor, gives you high speed and stable performance. This computer is small and powerful, well designed, suitable for use in a variety of environments. Its powerful features and excellent performance can meet your various computing needs. The mini computer has built-in DDR3L memory, which can quickly read and process data, greatly improving work efficiency.

At the same time, its low-power design, so that long-term operation will not produce too much heat, to ensure the stable operation of the equipment.

In addition, this computer uses the Intel Atom E3940 processor, which has powerful processing power and efficient energy management, and can easily cope with a variety of complex computing tasks. Overall, it is an excellent device with high performance, stable operation and low power consumption, which can provide you with an excellent use experience, whether it is a home, office or industrial environment.

Industrial PC Details:

Industrial PC Details
CPU Intel Atom E3940 Processing 4 Cores 4 Thread
Memory1*DDR3L SODIMM, Max up to 8GB
Ethernet2*INTEI-I211/1000 MB LAN, Support wake-up on LAN and PXE boot
Hard Disk1*MSATA HDD / SSD, 1*M2 NGFF 2242 SSD
Operating SystemWindows 10, Windows 11,Linux, etc.
Expansion Slot1*MINIPCIE Solt, Support WIFI and 3G/4G module; 1*AT/ATX, Supports auto start for incoming calls
I/O Port4*USB 3.0, 2*USB2.0, 1*DP1.4, 1*VGA, 2*COM / DB9 RS232, 1*Power button, 1*DC12V, 1*AT/ATX
WatchdogSupports Watchdog 1-255 SEC/MIN
PowerDC-12V5A
Material Aluminum Alloy
Dimensios183*115.5*36mm, weight: about 1.0KG
InstallationDesktop and wall-mounted
Operating Temperature-10℃ to +60℃
Storage Temperature-30℃ to +70℃

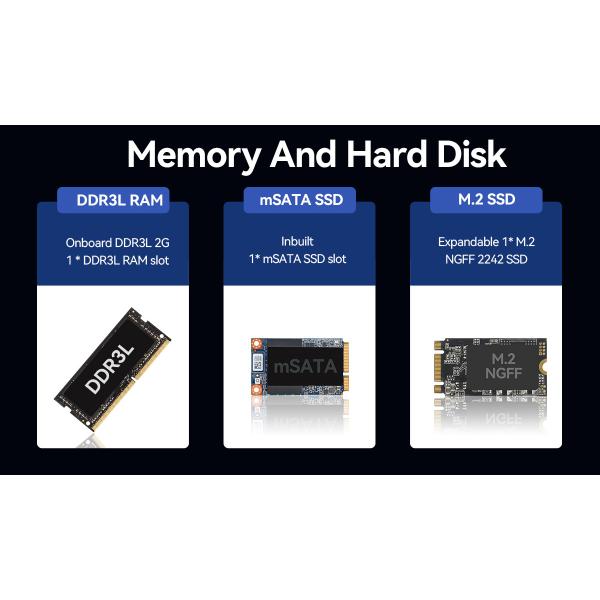

Industrial PC Memory And Hard Disk:

This industrial mini PC has one onboard DDR3L 2G memory, 1*DDR3L memory slot, max. up to 8GB, an mSATA hard disk slot is built into the body, and can expandable 1 M.2 NGFF 2242 hard disk.
Intel Atom E3940 DDR3L 8GB Industrial PC Dual LAN Dual COM Fanless Mini Computer

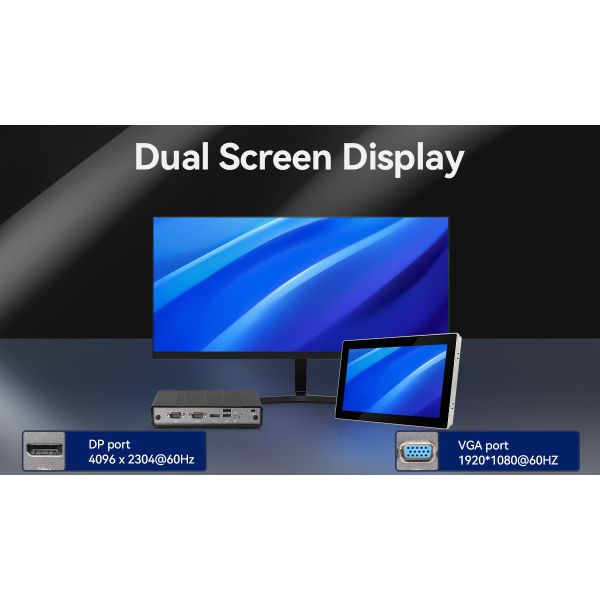

Industrial PC Support Dual Screen Display:

Equipped with one VGA port (1920*1080@60Hz) and one DP port (4096 x 2304@60Hz), this mini PC supports dual-screen display for ultra-high definition picture quality display.
Intel Atom E3940 DDR3L 8GB Industrial PC Dual LAN Dual COM Fanless Mini Computer

Industrial PC Cooling System:

This industrial mini computer is made of fully enclosed aluminum alloy metal case, which can dissipate heat quickly, dustproof and wear-resistant. Fanless cooling system, no noise interference, quiet and stable operation.
Intel Atom E3940 DDR3L 8GB Industrial PC Dual LAN Dual COM Fanless Mini Computer

Industrial PC Has Strong Environmrntal Adaptability:

This industrial mini computer is made of aluminum alloy metal case and high-quality components, which is resistant to high and low temperatures, moisture and corrosion. It also has strong stability and supports 7*24 hours all-weather stable operation.
Intel Atom E3940 DDR3L 8GB Industrial PC Dual LAN Dual COM Fanless Mini Computer

Industrial PC Application:

It is an excellent device with high performance, stable operation and low power consumption, which can provide you with an excellent use experience, whether it is a home, office or industrial environment.
Intel Atom E3940 DDR3L 8GB Industrial PC Dual LAN Dual COM Fanless Mini Computer

Industrial PC Interface Demonstration:

Intel Atom E3940 DDR3L 8GB Industrial PC Dual LAN Dual COM Fanless Mini Computer
Intel Atom E3940 DDR3L 8GB Industrial PC Dual LAN Dual COM Fanless Mini Computer
