Specifications
Brand Name :
Helor PC
Model Number :
X26UL J1900 COM
Certification :
Ce, Rohs, Sgs
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500 Pieces
Delivery Time :
15 work days
Packaging Details :
Carton Box
CPU :
Intel Celeron J1900 4 Cores 4 Threads
GPU :
Intel HD Graphics, DirectX 11.1.OCL 1.2, OGL 3.2
COM Port :
1*RS232 COM Port
USB Port :
2*USB3.0, 4*USB2.0
Description

Intel Industrial Mini PC Celeron J1900 4 Cores 4 Threads With DDR3L And Cooling Fan

Intel Celeron J1900 Industrial PC Description:

The power - packed mini PC equipped with the Intel Celeron J1900 processor. Its small form factor doesn't compromise on performance, making it a versatile and practical addition to more setup. Complemented by the Intel® HD Graphics GPU, it's not just a workhorse but also a great choice for light - gaming and multimedia consumption.

This mini PC packs a punch despite its small size. It has 1*SODIMM DDR3L for easy memory expansion, letting you multitask smoothly. The 1*full height mSATA SSD Socket ensures quick boot - ups and fast data access.

Paired with the 1*2.5’ SATA HDD, you get both speed and large - capacity storage. The 1*COM RS232 Port makes it ideal for industrial uses, connecting to serial devices. And with the 1*RJ45 Intel i225/i226 2.5G LAN, you enjoy high - speed, stable network connections, perfect for streaming or business data transfers.

Intel Celeron J1900 Industrial PC Details:

CPU Intel Celeron J1900 4 Cores 4 Threads Processor, 2 MB L3 Cache, 2.0 GHz Base Frequency, 10W TDP
GPU Intel® HD Graphics for Intel Atom® Processor Z3700 Series, DirectX 11.1.OCL 1.2, OGL 3.2
Ethernet 1*RJ45 Intel i225/i226 2.5G LAN, Support Wake-on LAN, PXE Boot
Memory 1*SODIMM DDR3L 1333/1600MHz, Max Up To 8GB
Hard Disk
1*full height mSATA SSD Socket, 1*2.5’ SATA HDD (up to SATA 2.0 data conversion rate)
Expansion 1*MINI-PCIE Slot, expandable WIFI, 3G/4G Module
Audio Support Adopts the Realtek ALC662 audio control chip, supports two - channel and stereo sound, and features Line - out.
I/O Interface 2*USB3.0, 4*USB2.0, 1*2.5G LAN, 1*VGA, 1*DC-IN, 1*COM RS232, 1*SPK, 1*MIC, 1*Power Switch
Operating System Windows 7, Windows 8, Windows 10, Ubuntu, Linux, CentOS, etc
Power DC 12V 5A/60W(AC TO DC,100~240V)
BIOS American
Material Aluminium Alloy Chassis
Installation VESA/ Wall Mount/ Desktop
Size/ Weight 197mm*197mm*40mm/ About 1.0kg
Environment
Operating temperature: -20°C to +65°C; Storage temperature: 15°C - 35°C; Operating humidity: 5%-95% (relative humidity, non-condensing)

Intel Celeron J1900 Industrial PC Processor:

The power - packed mini PC equipped with the Intel Celeron J1900 processor. Boasting 4 cores and 4 threads, this mini wonder offers smooth multitasking capabilities. With a 2 MB L3 cache, it ensures quick data access, allowing for seamless operation even during demanding tasks. The base frequency of 2.0 GHz provides a reliable performance foundation, and the 10W TDP (Thermal Design Power) makes it energy - efficient, perfect for long - term use without hefty power bills.

Intel Industrial Mini PC Celeron J1900 4 Cores 4 Threads With DDR3L And Cooling Fan

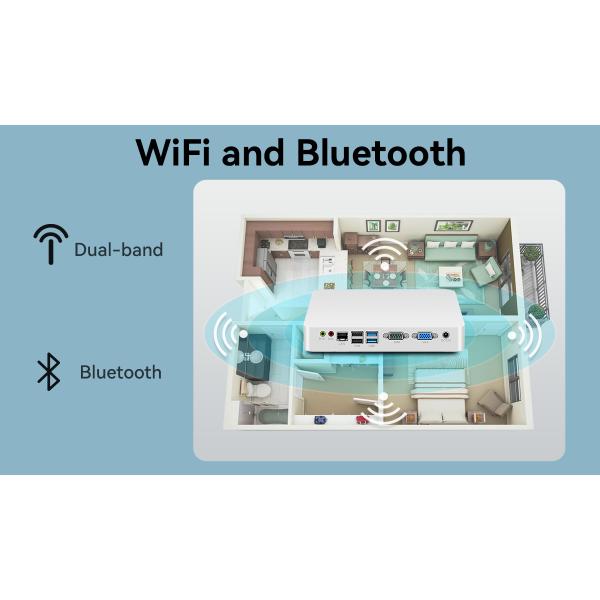

Intel Celeron J1900 Industrial PC Ethernet And WiFi:

It features a 1*RJ45 Intel i225/i226 2.5G LAN port, delivering super - fast network speeds for data - heavy tasks. Support for Wake - on LAN allows remote power - up, while PXE Boot streamlines OS and software deployment, great for IT management.
With a 1*MINI - PCIE Slot, you can add a WIFI module for wireless connection or 3G/4G modules for mobile connectivity.

Intel Industrial Mini PC Celeron J1900 4 Cores 4 Threads With DDR3L And Cooling Fan

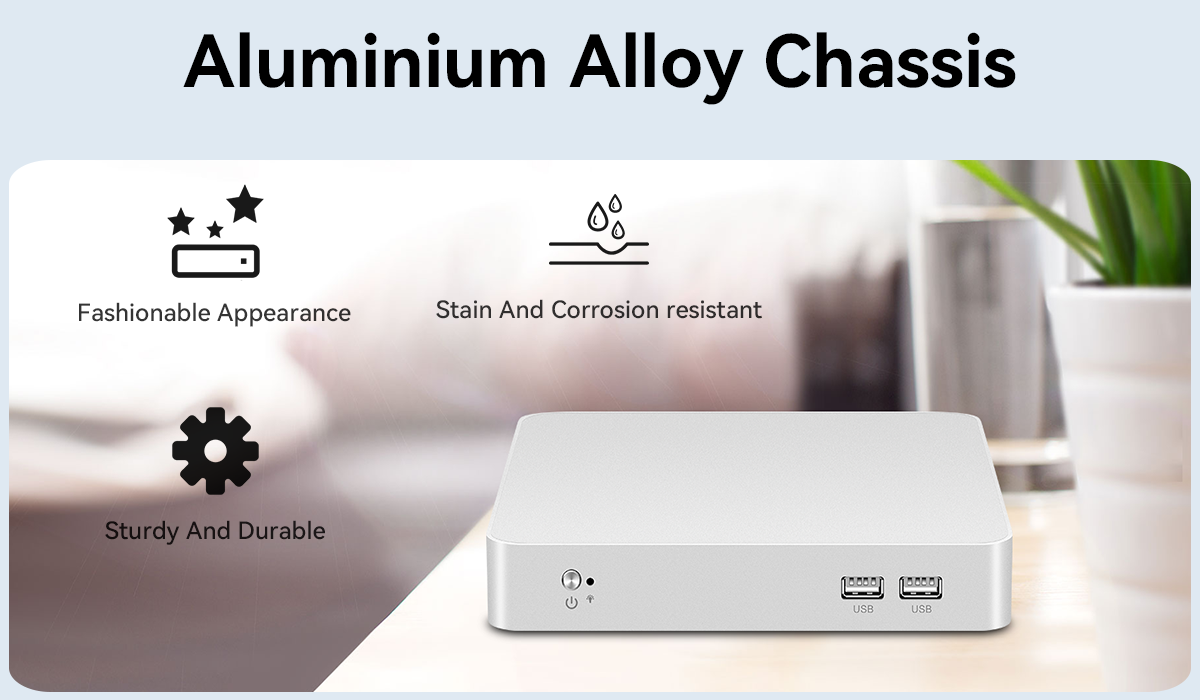

Intel Celeron J1900 Industrial PC Material:

With a lightweight texture and a more robust body, it is resistant to scratches during daily use. The overall silver - gray exterior design is stylish and elegant, making it suitable for various scenarios. It's also silent and dustproof, so you don't have to worry about a burned out mainframe.

Intel Industrial Mini PC Celeron J1900 4 Cores 4 Threads With DDR3L And Cooling Fan

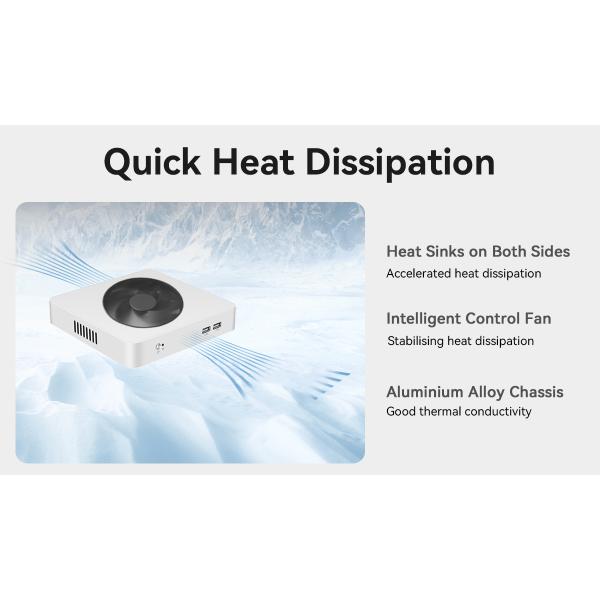

Intel Celeron J1900 Industrial PC Heat Dissipation:

The CPU of the mini host will be equipped according to the heat dissipation of the host, plus a full aluminium alloy chassis to ensure rapid heat conduction during operation.

Intel Industrial Mini PC Celeron J1900 4 Cores 4 Threads With DDR3L And Cooling Fan

Intel Celeron J1900 Industrial PC Application:

This mini PC, with its rich set of features, is a versatile and high - performing device that can adapt to a wide range of scenarios, from home entertainment and office work to industrial and networking applications.

Intel Industrial Mini PC Celeron J1900 4 Cores 4 Threads With DDR3L And Cooling Fan
