Metallic Color ASTM B363 Pipe Fitting Titanium Elbows With Flanges Hot Rolled
Metallic Color ASTM B363 Pipe Fitting Titanium Elbows With Flanges Hot Rolled
Metallic Color ASTM B363 Pipe Fitting Titanium Elbows With Flanges Hot Rolled
Metallic Color ASTM B363 Pipe Fitting Titanium Elbows With Flanges Hot Rolled
Specifications
Brand Name :
HNEENERGY
Model Number :
Customized titanium elbow tee
Certification :
ASME, ANSI, DIN, JIS,ISO etc.
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 ton per year
Delivery Time :
7-30 days
Packaging Details :
wooden case or pallet or as per customers' requirement
Material :
Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Standard :
ASTM B363
Application :
Petroleum, Chemical, Ship building, Machinery, Metallurgy, etc
Processing Service :
Bending, Welding, Decoiling, Cutting, Punching
Color :
Metallic color or customization
Spec. :
1/2"-48"
Wall thickness :
SCH5S-SCH160S
STD :
ASME/ANSI B16.9
Description

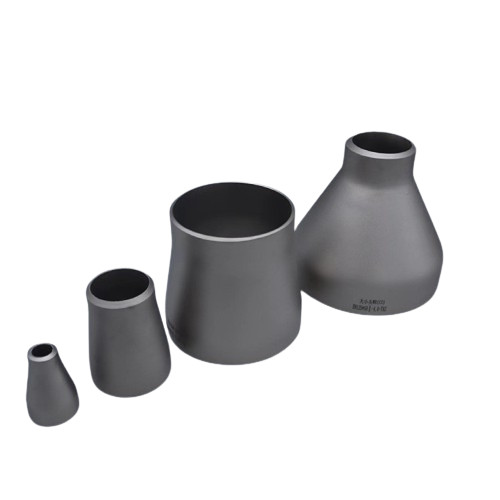

Titanium Alloy Pipe Fittings

Titanium tees, titanium elbows, titanium reducers, titanium reducers, titanium alloy plug, titanium alloy cap etc.

1. Chemical Composition and Tensile Strength

Chemical Composition
Grade N C H Fe 0 Al V Pa Mo Ni Ti
Gr1 0.03 0.08 0.015 0.2 0.18 / / / / / the rest
Gr2 0.03 0.08 0.015 0.3 0.25 / / / / / the rest
Gr3 0.05 0.08 0.015 0.3 0.35 / / / / / the rest
Gr4 0.05 0.08 0.015 0.5 0.4 / / / / / the rest
Gr5 0.05 0.08 0.015 0.4 0.2 5.5-6.75 3.5-4.5 / / / the rest
Gr7 0.03 0.08 0.015 0.3 0.25 / / / / / the rest
Gr9 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 / / / the rest
Gr12 0.03 0.08 0.015 0.3 0.25 / / / / / the rest
Tensile Strength
Grade Tensile strength(min) Yield strength (min) Elogation%
Ks Mpa Ks Mpa
Grade 1 35 240 20 138 24
Grade 2 50 345 40 275 20
Grade 3 65 450 55 380
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10
Grade 7 50 345 40 275 20
Grade g 90 620 70 438 15
Grade 12 70 438 50 345 48

Metallic Color ASTM B363 Pipe Fitting Titanium Elbows With Flanges Hot Rolled

2. Introduction of Titanium Pipe Fittings

  • Factory processing; Customized according to drawings; Carefully select raw materials; Reliable quality

Metallic Color ASTM B363 Pipe Fitting Titanium Elbows With Flanges Hot Rolled

  • Product Information
Name Place of Origin
Titanium Pipe Fitting China
Product specification Material
On demand customization Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Characteristic
High temperature/corrosion resistance
Application
Aviation, chemical, shipbuilding, automotive and aerospace, medical

  • Product details

Strictly select materials

Overall thickening
authentic data
Long service life
Durable according to national design standards

Strong pressure resistance and convenient use
Uniform wall thickness, reasonable structure, and convenient use

Metallic Color ASTM B363 Pipe Fitting Titanium Elbows With Flanges Hot Rolled

Our company can produce carbon steel, stainless steel, and alloy steel pipe fittings according to standards such as ASME/ANSI, JIS, DIN, ISO etc. The varieties include equal diameter tees, reducing tees, tees, elbows, cross, concentric reducer, eccentric reducer etc.

We provide the very best quality pipe and fittings, prompt delivery and reliable services at competitive prices.
