High Versatility Fixed Flange Metal Hose With Corrosion Resistance

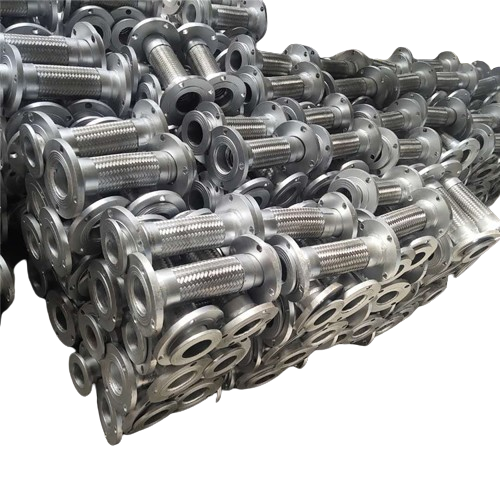

Fixed Flange Metal Hose

The fixed flange metal hose is a reliable and efficient solution for various piping systems. It is characterized by its fixed flange design, which provides a secure and stable connection while maintaining flexibility and ease of installation.

Features:

Easy Installation: The fixed flange design allows for quick and simple installation, reducing the overall installation time and effort.
Good Sealing: The hose is designed with precision to ensure excellent sealing performance, minimizing the risk of leaks or fluid loss.
Nominal Diameter:

The fixed flange metal hose is available in a wide range of nominal diameters, from DN10 (approximately 3/8 inches) to DN2000 (approximately 80 inches). This versatility allows for the selection of the appropriate size based on the specific requirements of the piping system.

Materials:

The fixed flange metal hose is constructed using high-quality materials to ensure durability and performance.

(1) Flange: The flange is available in carbon steel or stainless steel. Carbon steel is a cost-effective option for general-purpose applications, while stainless steel offers superior corrosion resistance for more demanding environments.
(2) Pipe: The pipe section of the hose can be made from carbon steel or stainless steel, depending on the intended use and operating conditions.
(3) Clamping Ring for Mesh Sleeve: The clamping ring that secures the mesh sleeve to the metal bellows is made from stainless steel. This ensures a secure and reliable connection, while also resisting corrosion.
(4) Metal Bellows: The corrugated metal bellows, which provide the flexibility of the hose, are typically made from SUS304 or SUS316L stainless steel. These materials offer excellent corrosion resistance and mechanical properties, ensuring reliable operation under various conditions.
(5) Mesh Sleeve: The mesh sleeve that surrounds the metal bellows is made from SUS304 stainless steel. It provides reinforcement and protection against external impacts or abrasion, extending the service life of the hose.
In summary, the fixed flange metal hose offers a secure and reliable connection, easy installation, and good sealing performance. Its versatility in terms of materials and size makes it a suitable choice for a wide range of piping applications.
