1. Nickel based alloy Introduction

• Incoloy alloy is a nickel based corrosion-resistant alloy of the iron chromium series. It has good corrosion resistance in reducing and oxidizing acids, as well as good resistance to stress corrosion cracking, pitting, and crevice corrosion. Commonly used materials in chemistry, petrochemicals, nuclear industry, and rare metal extraction include incoloy800, incoloy825, incoloy926, etc.
• Inconel alloy is a nickel, chromium, and iron solution strengthening alloy with excellent high-temperature corrosion resistance and oxidation resistance, as well as excellent cold and hot processing and welding performance. It is widely used in aviation, chemical, paper industry, and other fields. Commonly used ones include inconel600 inconel601 inconel625 inconel617 inconel718 inconelx750, etc.
• Hastelloy alloy is a nickel based corrosion-resistant and high-temperature alloy, mainly divided into two categories: nickel chromium alloy and nickel chromium molybdenum alloy. It has good corrosion resistance and thermal stability, and is commonly used in aviation, petrochemical, chemical fields, etc. Commonly used include Hastelloy C276, Hastelloy C22, Hastelloy b2, Hastelloy b3, Hastelloy C4, Haynes 230, Haynes 188, etc.

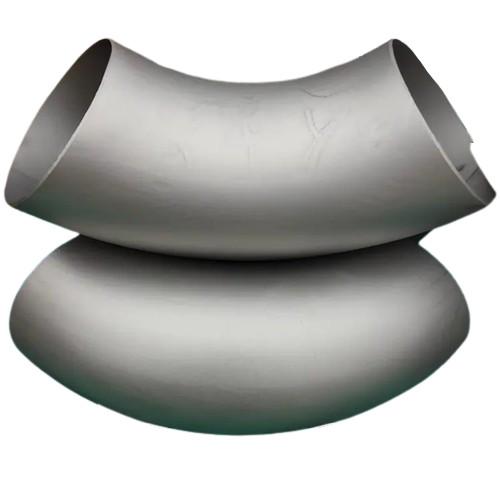

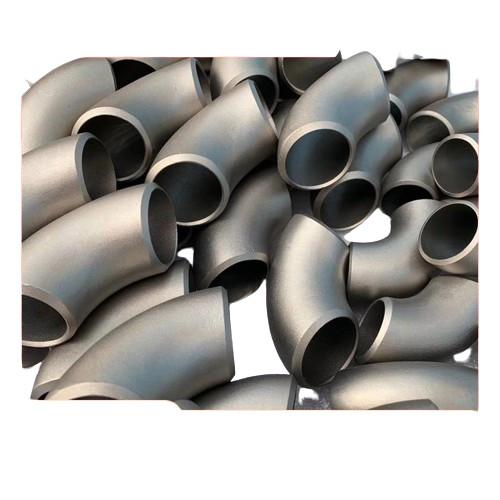

2. Incoloy 825 Pipe Fittings

• Material

ASTM B366 / B366M - 20 Standard Specification for Wrought Nickel and Nickel Alloy Fittings

Incoloy 825 is a nickel-iron-chromium alloy with additions of molybdenum, copper and titanium. This nickel steel alloy's chemical composition is designed to provide exceptional resistance to many corrosive environments. It is similar to alloy 800 but has improved resistance to aqueous corrosion.

Equal standards

Chemical composition

Mechanical properties

• Specification of pipe fittings

Material Mark :ASTM B366 WPNICMC UNS N08825

Standard : ANSI/ASME B16.9, B16.28, MSS-SP-43.

Size : 1/2''~48''(Seamless);16''~110''(Welded)

Wall Thickness: SCH5-STD-SCH XXS

3. Application area

Our company can produce carbon steel, stainless steel, and alloy steel pipe fittings according to standards such as ASME/ANSI, JIS, DIN, ISO etc. The varieties include equal diameter tees, reducing tees, tees, elbows, cross, concentric reducer, eccentric reducer etc. We provide the very best quality pipe and fittings, prompt delivery and reliable services at competitive prices.
