Welded Connections 45° Carbon Steel Elbow For Changing The Direction Of Pipelines
Welded Connections 45° Carbon Steel Elbow For Changing The Direction Of Pipelines
Specifications
Brand Name :
HNEENERGY
Model Number :
45°Carbon Steel Elbow
Certification :
ASME, ANSI, DIN, JIS,ISO etc.
Place of Origin :
China
MOQ :
10
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000 Ton per Month
Delivery Time :
7-30 days
Packaging Details :
wooden case or pallet or as per customers' requirement
Material :
carbon steel
Angle :
45°
Wall Thickness :
SCH5-STD-SCH XXS
Outside Diameter :
1/2''-48''（Butt welding）； 16''~110''（welding）
Description

Carbon steel elbows are metal fittings used to change the direction of carbon steel pipelines. The connection methods include threaded and welded connections. According to the angle, the most commonly used are 45°, 90°, and 180° elbows. Additionally, there are non-standard angle elbows such as 60° as needed for specific projects.

The materials for elbows include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals, and plastics. The methods for connecting to pipes include direct welding (the most common method), flange connections, hot-melt connections, electrofusion connections, threaded connections, and socket connections.

Based on the manufacturing process, elbows can be divided into welded elbows, stamped elbows, pushed elbows, cast elbows, etc. Other names for elbows include 90-degree elbows, right angle elbows, and return bends.

Product Introduction

 Material 20#,20G,ASTM A105,ASTM A234 WPB,ASTM A860 WPHY42,ASTM A860 WPHY46,ASTM A860 WPHY52,ASTM A860 WPHY56,ASTM A860 WPHY60,ASTM A860 WPHY65,ASTM A860 WPHY70,ASTM A420 WPL3,ASTM A420 WPL6 etc.
Manufacturing Standards

ASME/ANSI B16.9

MSS-SP-43

JIS B2311/2220

DIN2615/2616/2617

ISO 3419,ISO 5251
Wall Thickness SCH5-STD-SCHXXS etc
Outside Diameter

1/2''-48''(Butt welding, seamless)

16''~110''(welding)

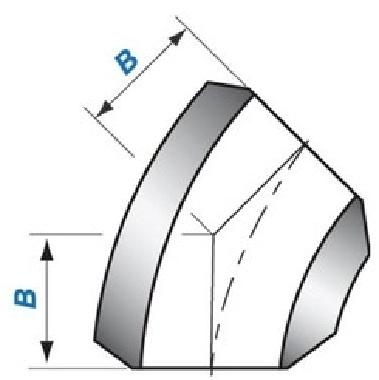

  • LR Elbow BW45°

Welded Connections 45° Carbon Steel Elbow For Changing The Direction Of Pipelines

ASME B16.9

Nominal Size

Outside Diameter

at Bevel

 Center to End
45° Elbows
DN NPS OD B
LR
15
20
25		 1/2
3/4
1		 21.3
26.7
33.4		 16
19
22
32
40
50		 11/4
112
2		 42.2
48.3
60.3		 25
29
35
65
80
90
100		 2 1/2
3
3 1/2
4		 73.0
88.9
101.6
114.3		 44
51
57
64
125
150
200		 5
6
8		 141.3
168.3
219.1		 79
95
127
250
300
350		 10
12
14		 273.0
323.8
355.6		 159
190
222
400
450
500		 16
18
20		 406.4
457.0
508.0		 254
286
318
550
600
650		 22
24
26		 559.0
610.0
660.0		 343
381
406
700
750
800		 28
30
32		 711.0
762.0
813.0		 438
470
502
850
900
950		 34
36
38		 864.0
914.0
965.0		 533
565
600
1000
1050
1100		 40
42
44		 1016.0
1067.0
1118.0		 632
660
695
1150
1200
1300		 46
48
52		 1168.0
1219.0
1321.0		 727
759
821
1400
1500
1600		 56
60
64		 1422.0
1524.0
1626.0		 883
947
1010
1700
1800
1900
2000		 68
72
76
80		 1727.0
1829.0
1930.0
2032.0		 1073
1137
1199
1263

Notes:

  • Besides ASME, European standard EN, German standard DIN, Japanese standard (JIS), etc.are also applied.
  • The elbow with NPS over 80 shall be customized according to customer specific needs.
