ASME B16.9 Stainless Steel Pipe Fittings SCH10 40 80 Pipe Welding End BW Cap
ASME B16.9 Stainless Steel Pipe Fittings SCH10 40 80 Pipe Welding End BW Cap
ASME B16.9 Stainless Steel Pipe Fittings SCH10 40 80 Pipe Welding End BW Cap
ASME B16.9 Stainless Steel Pipe Fittings SCH10 40 80 Pipe Welding End BW Cap
Specifications
Brand Name :
HNEENERGY
Model Number :
CAP
Certification :
ASME, ANSI, DIN, JIS,ISO etc.
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000 Ton per Month
Packaging Details :
wooden case or pallet or as per customers' requirement
Type :
BW CAP
Technics :
Forged, Pushing, Hot Press, Cold Press
Customized :
as Customers′ Requriement
Wall Thickness :
SCH10 40 80
Color :
Silver
Connection :
Welding
Description
  • BW Cap

ASME B16.9 Stainless Steel Pipe Fittings SCH10 40 80 Pipe Welding End BW Cap

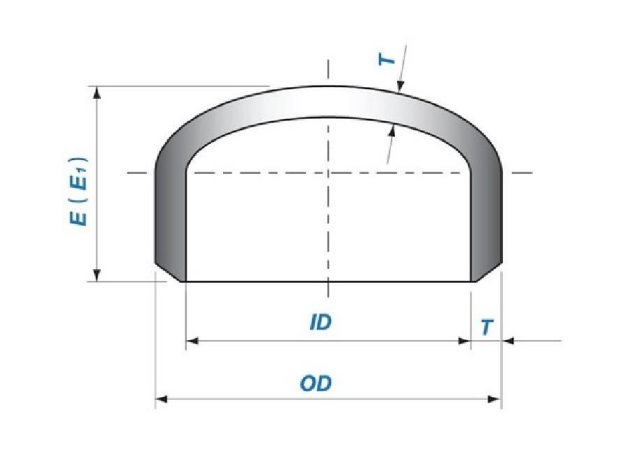

ASME B16.9

Nominal Size Outside Diameter at Bevel Length Limiting Wall Thickness
for Length E
DN NPS OD E E₁
15
20
25		 1/2
3/4
1		 21.3
26.7
33.4		 25
25
38		 25
25
38		 4.57
3.81
4.57
32
40
50		 11/4
11/2
2		 42.2
48.3
60.3		 38
38
38		 38
38
44		 4.83
5.08
5.59
65
80
90
100		 21/2
3
31/2
4		 73.0
88.9
101.6
114.3		 38
51
64
64		 51
64
76
76		 7.11
7.62
8.13
8.64
125
150
200		 5
6
8		 141.3
168.3
219.1		 76
89
102		 89
102
127		 9.65
10.92
12.70
250
300
350		 10
12
14		 273.0
323.8
355.6		 127
152
165		 152
178
191		 12.70
12.70
12.70
400
450
500		 16
18
20		 406.4
457.0
508.0		 178
203
229		 203
229
254		 12.70
12.70
12.70
550
600
650		 22
24
26		 559.0
610.0
660.0		 254
267
267

254
305

12.70
12.70
700
750
800		 28
30
32		 711.0
762.0
813.0		 267
267
267
850
900
950		 34
36
38		 864.0
914.0
965.0		 267
267
305
1000
1050
1100		 40
42
44		 1016.0
1067.0
1118.0		 305
305
343
1150
1200		 46
48		 1168.0
1219.0		 343
343
Notes:
1)The configuration of the cap is normal ellipse.
2)Length E applies for the thickness not exceeding the Limiting Wall Thickness,Length E,applies for the thickness exceeding the Limiting Wall Thickness.For the caps with DN≥650(NPS26),they will be made subject to the sizes agreed between purchaser and manufacturer or be supplied according to manufacturer's size.
  • Stainless Steel-Pipe Fittings

ASME B16.9 Stainless Steel Pipe Fittings SCH10 40 80 Pipe Welding End BW Cap

​

  • Application

ASME B16.9 Stainless Steel Pipe Fittings SCH10 40 80 Pipe Welding End BW Cap
