180° Stainless Steel Elbow For The Connection At The Bend Of The Pipeline
180° Stainless Steel Elbow For The Connection At The Bend Of The Pipeline
Specifications
Brand Name :
HNEENERGY
Model Number :
180° Stainless Steel Elbow
Certification :
ASME, ANSI, DIN, JIS,ISO etc.
Place of Origin :
China
MOQ :
10
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000 Ton per Month
Delivery Time :
7-30 days
Packaging Details :
wooden case or pallet or as per customers' requirement
Material :
Stainless Steel
Angle :
180°
Wall Thickness :
SCH5-STD-SCH XXS
Outside Diameter :
1/2''-48''（Butt welding）； 16''~110''（welding）
Description

In piping systems, elbows are fittings used to change the direction of the pipeline. The most commonly used angles are 45°, 90°, and 180°, with other non-standard angles like 60° available based on specific engineering requirements.

Elbows can be made from a variety of materials including cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals, and plastics.

The connection methods to pipes include: direct welding (the most common method), flange connections, hot-melt connections, electrofusion connections, threaded connections, and socket connections.

According to the manufacturing process, elbows can be classified into welded elbows, stamped elbows, pushed elbows, cast elbows, and butt-welded elbows. Other names for elbows include 90-degree elbows and right-angle bends.

Product Introduction

 Material ASTM A403 WP304,A403 WP304L；A403 WP316,A403 WP316L,A403 WP321 ；A182 F304,304L,316,316L,904L
Manufacturing Standards

ASME/ANSI B16.9, MSS-SP-43

JIS B2311/2220

DIN2615/2616/2617

ISO 3419,ISO 5251
Wall Thickness SCH5-STD-SCH XXS etc
Outside Diameter

1/2''-48''(Butt welding, seamless)

16''~110''(welding)

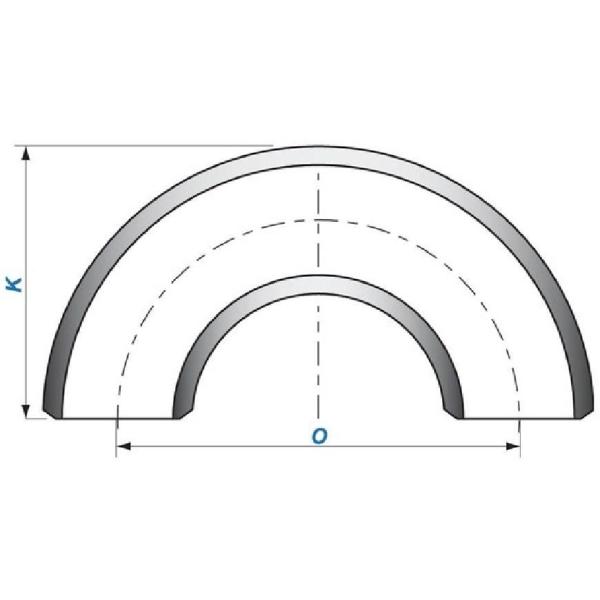

  • LR/SR Elbow BW180°

180° Stainless Steel Elbow For The Connection At The Bend Of The Pipeline

ASME B16.9

Nominal Size Outside Diameter at Bevel Center to Center Back to Face
180°Returns
DN NPS OD O K
LR SR LR SR
15
20
25		 1/2
3/4
1		 21.3
26.7
33.4		 76
76
76

51

 48
51
56

41
32
40
50		 1 1/4
1 1/2
2		 42.2
48.3
60.3		 95
114
152		 64
76
102		 70
83
106		 52
62
81
65
80
90
100		 2 1/2
3
3 1/2
4		 73.0
88.9
101.6
114.3		 190
229
267
305		 127
152
178
203		 132
159
184
210		 100
121
140
159
125
150
200		 5
6
8		 141.3
168.3
219.1		 381
457
610		 254
305
406		 262
313
414		 197
237
313
250
300
350		 10
12
14		 273.0
323.8
355.6		 762
914
1067		 508
609
711		 518
619
711		 391
467
533
400
450
500		 16
18
20		 406.4
457.0
508.0		 1219
1372
1524		 813
914
1016		 813
914
1016		 610
686
762

550
600
650

22
24
26

559.0
610.0
660.0

 1676
1829		 1118
1219		 1118
1219		 838
914
