ASTM A105 8 Inch Carbon Steel Pipe Tee Black SCH40 Reducing Tee Straight Tee And Equal Tee
ASTM A105 8 Inch Carbon Steel Pipe Tee Black SCH40 Reducing Tee Straight Tee And Equal Tee
Specifications
Brand Name :
HNEENERGY
Model Number :
A105 TEE
Certification :
ASME, ANSI, DIN, JIS,ISO etc.
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000 Ton per Month
Packaging Details :
wooden case or pallet or as per customers' requirement
Wall Thickness :
Sch40
Size :
1/8"-48"
Finish :
Black Painting
Technics :
Forged
Pressure Rating :
3000LBS
Connection Way :
Butt Weld
Surface Treatment :
Hot Dipped Galvanized, Electro Galvanized, etc
Description

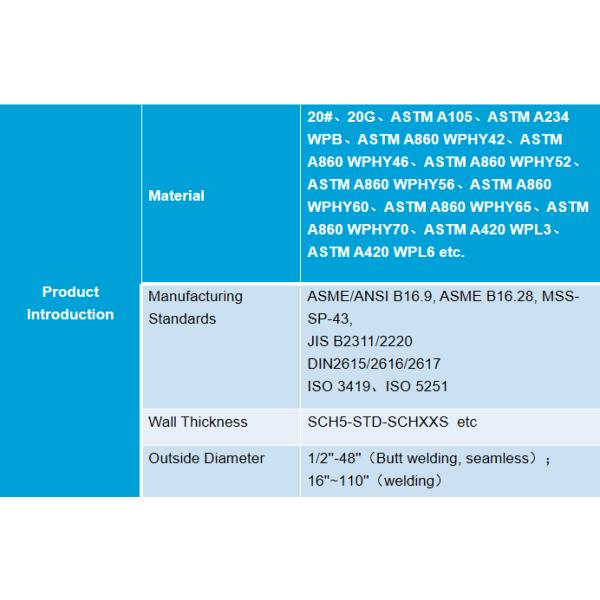

Product Introduction

  • Material of A105

Composition C: ≤ 0.35 Si: ≤ 0.35 Mn: 0.6-1.05 S: ≤ 0.050 P: ≤ 0.040, Cu ≤ 0.4 Ni ≤ 0.4 Mo ≤ 0.12 V ≤ 0.08 Cr ≤ 0.3
Tensile strength:( σ b) ≥ 485 Mpa
Yield strength( σ s) ≥ 250Mpa
Rear elongation( δ)≥ 22%
Reduction of area( ψ)≥ 30%
Hardness ≤ HB187

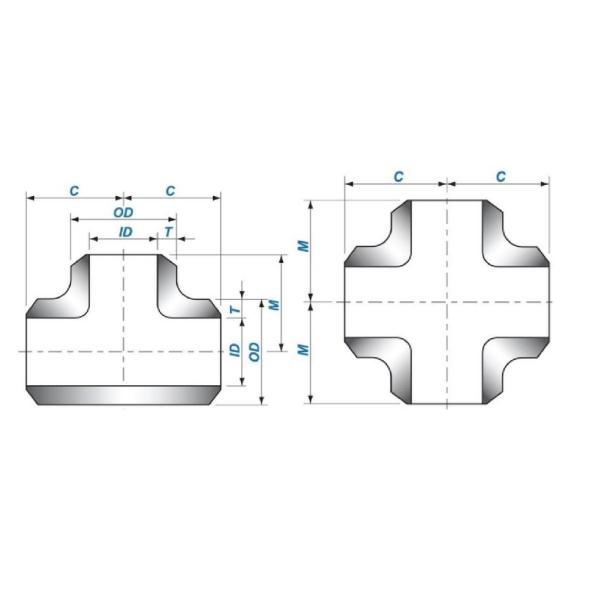

  • BW Straight Tee /Cross

ASTM A105 8 Inch Carbon Steel Pipe Tee Black SCH40 Reducing Tee Straight Tee And Equal Tee

ASME B16.9

Nominal Size Outside Diameter at Bevel Center to End
DN NPS OD1×OD2 C M

15

15×10

15×8

1/2
1/2 ×3/8

1/2×1/4

21.3
21.3×17.1

21.3×13.7

 25 25
25
25

20

20×15
20×10

3/4
3/4×1/2

3/4×3/8

 26.7
26.7×21.3
26.7×17.1		 29 29
29
29
25
25×20
25×15

1
1×3/4

1×1/2

33.4
33.4×26.7

33.4×21.3

 38 38
38
38
32
32×25
32×20
32×15		 1 1/4
1 1/4×1
1 1/4×3/4
1 1/4×1/2

42.2

42.2×33.4
42.2×26.7

42.2×21.3

 48 48
48
48
48
40
40×32
40×25
40×20
40×15		 1 1/2
1 1/2×11/4
1 1/2×1
1 1/2 ×3/4
1 1/2 ×1/2		 48.3
48.3×42.2
48.3×33.4
48.3×26.7
48.3×21.3		 57 57
57
57
57
57

50

50×40
50×32
50×25
50×20

 2
2×1 1/2
2×1 1/4
2×1
2×3/4		 60.3
60.3×48.3
60.3×42.2
60.3×33.4
60.3×26.7		 64 64
60
57
51
44
65
65×50
65×40
65×32
65×25		 2 1/2
2 1/2×2
2 1/2×1 1/2
2 1/2×1 1/4
2 1/2×1		 73.0
73.0×60.3
73.0×48.3
73.0×42.2
73.0×33.4		 76 76
70
67
64
57
80
80×65
80×50
80×40
80×32		 3
3×2 1/2
3 ×2
3×1 1/2
3×1 1/4		 88.9
88.9×73.0
88.9×60.3
88.9×48.3
88.9×42.2		 86 86
83
76
73
70

90
90×80
90×65
90×50

90×40

 3 1/2
3 1/2 ×3
3 1/2 ×2 1/2
3 1/2×2
3 1/2×1 1/2		 101.6
101.6×88.9
101.6×73.0
101.6×60.3
101.6×48.3		 95 95
92
89
83
79
100
100×90
100×80
100×65
100×50
100×40		 4
4×3 1/2
4×3
4×2 1/2
4×2
4×1/2		 114.3
114.3×101.6
114.3×88.9
114.3×73.0
114.3×60.3
114.3×48.3		 105 105
102
98
95
89
86

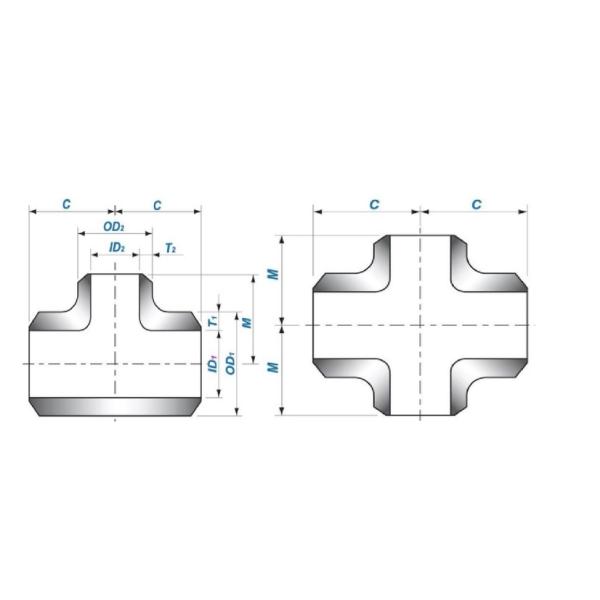

  • BW Reducing Tee /Cross

ASTM A105 8 Inch Carbon Steel Pipe Tee Black SCH40 Reducing Tee Straight Tee And Equal Tee

ASME B16.9

Nominal Size Outside Diameter at Bevel Center to End
DN NPS 0D1XOD2 C M
125
125×100
125×90
125×80
125×65
125×50		 5
5×4
5×3 1/2
5×3
5×2 1/2
5×2		 141.3
141.3×114.3
141.3×101.6
141.3×88.9
141.3×73.0
141.3×60.3		 124 124
117
114
111
108
105
150
150×125
150×100
150×90
150×80
150×65		 6
6×5
6×4
6×3 1/2
6×3
6×2 1/2		 168.3
168.3×141.3
168.3×114.3
168.3×101.6
168.3×88.9
168.3×73.0		 143 143
137
130
127
124
121
200
200×150
200×125
200×100
200×90

8

8×6
8×5
8×4
8×3 1/2

 219.1
219.1×168.3
219.1×141.3
219.1×114.3
219.1×101.6		 178 178
168
162
156
152
250
250×200
250×150
250×125
250×100		 10
10×8
10×6
10×5
10 ×4		 273.0
273.0×219.1
273.0×168.3
273.0×141.3
273.0×114.3		 216 216
203
194
191
184
300
300×250
300×200
300×150
300×125		 12
12×10
12×8
12×6
12×5		 323.8
323.8×273.0
323.8×219.1
323.8×168.3
323.8×141.3		 254 254
241
229
219
216
350
350×300
350×250
350×200
350×150		 14
14×12
14×10
14 ×8
14 ×6		 355.6
355.6×323.8
355.6×273.0
355.6×219.1
355.6×168.3		 279 279
270
257
248
238
400
400×350
400×300
400×250
400×200
400×150		 16
16×14
16×12
16×10
16×8
16×6		 406.4
406.4×355.6
406.4×323.8
406.4×273.0
406.4 ×219.1
406.4×168.3		 305 305
305
295
283
273
264

  • Details

ASTM A105 8 Inch Carbon Steel Pipe Tee Black SCH40 Reducing Tee Straight Tee And Equal Tee

  • Our company can produce carbon steel, stainless steel, and alloy steel pipe fittings according to standards such as ASME/ANSI, JIS, DIN, ISO etc. The varieties include equal diameter tees, reducing tees, tees, elbows, cross, concentric reducer, eccentric reducer etc.We provide the very best quality pipe and fittings, prompt delivery and reliable services at competitive prices.
