peanut sieving and grading production line，peanut grading machine
peanut sieving and grading production line，peanut grading machine
Specifications
Brand Name :
fude
Model Number :
FDPEG-1
Place of Origin :
china
MOQ :
1set
Price :
$10000/set
Payment Terms :
T/T, L/C
Supply Ability :
1set/m
Delivery Time :
30days
Packaging Details :
20' container
Capacity :
6000kg/h
Round shape :
25/35,35/40,40/50,50/60,60/70,70/80 /ounce
Long shape :
24/28,28/32,34/38,38/42,45/55 /ounce
Description

peanut sieving and grading production line, peanut grading machine, peanut sorting machine

peanut sieving and grading production line，peanut grading machine

The peanut sieving and grading production line is mainly used for grading uneven peanut into several even sizes peanut. For instance round peanut can be graded into 25/35,35/40,40/50,50/60,60/70,70/80 and the long shape peanut can be graded into 24/28,28/32,34/38,38/42,45/55.

Principle : the grading will be dome by replacing the sieving meshes. The line can remove impurity ( for example stone, metal, soil block, red skin , dust and so on), grading and selection.

The line with high efficiency, non-damaged, low noisy and convenient operation.

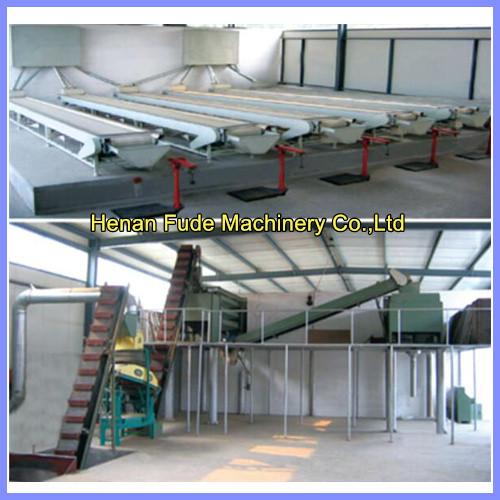

Components : lifting part, removing stone part, sieving part, distributing part and selecting part.

Process : feeding -- first grade elevator -- destoner --second grade elevator -- main sieving machine -- conveyor -- sieving machine auxiliary -- distributing system -- conveying and selecting -- finished products.

Specification :

Model FDPEG-1
Capacity 6000kg/h
Power 28.5kw
Grades

Round shape :25/35,35/40,40/50,50/60,60/70,70/80 /ounce

Long shape : 24/28,28/32,34/38,38/42,45/55 /ounce
Size 2500*12000*5500mm
Weight 15500kg
