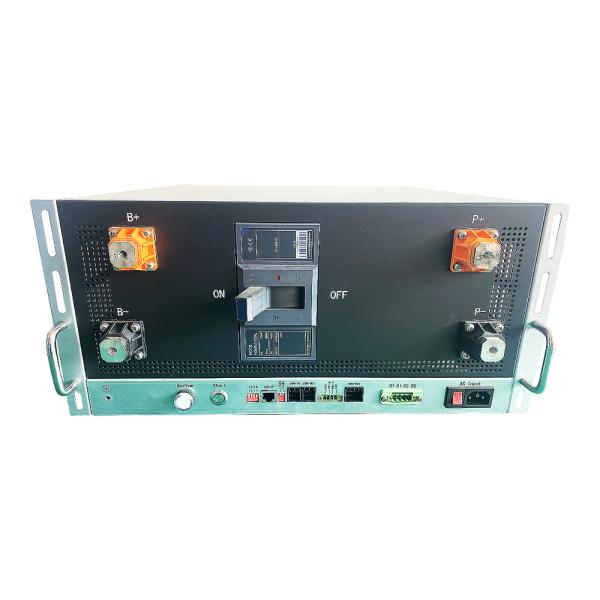

GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System
GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System
GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System
GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System
GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System
GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System
GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System
GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System
Specifications
Brand Name :
GCE/OEM/ODM
Model Number :
5U Master BMS
Certification :
CE/RoHS/SGS/MSDS
Place of Origin :
China,Hunan
MOQ :
1
Price :
negotiable email with wenglin@hngce.com
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Corrugated Carton, bundles, pallets, wooden box
Model :
RBMS07S20-400A816V
Voltage Range :
120V-1000V
Maximum qty of BMUs :
30
Power :
≤15W
Communication protocol :
Rs485, CAN, LAN
Rated Current range :
400A /500A are optional
Package weight :
42 kgs
Application :
For BESS ESS UPS system
Color :
RAL9005 black sand grain
battery :
suitable for LFP NMC LTO
Description

GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System

Model Number:RBMS07S20-400A816V


Battery Type: LFP( LTO/ NMC are also available)


Product name:High voltage BMS


communication:Rs485/CAN/LAN


Voltage:816V (255S)


Current:400A/500A are optional


racks in parallel or single :support


touch screen:3.5 inch or 7 inch display are optional


Insulation: Suitable for systems with voltages above 300V


Dry contact:yes (2 dry contacts)


center tap:no


Application:BESS/UPS/ESS system

BMS solutions are as follows:
1.make 15S cells to be a battery pack(module) and 17 packs(modules) in series

2.make 17S cells to be a battery pack(module) and 15 packs(modules) in series

Attention: if your battery capacity is big enough (200Ah or more), please use 9S cells as a battery pack to make each pack not too heavy to lift up,
if your cell capacity is less than 150Ah or less, 15S battery cell as each pack will help you to save cost.

Taking the of lithium iron phosphate(nominal 3.2V) as an example, the calculation method of the actual rated voltage of the system is as below:

Eg 1: 16 cells connected in series for a module,10sets of 16S battery modules in series. System rated voltage: 10*16*3.2=512V

Eg 2: 15 cells connected in series for a module,8sets of 15S battery modules in series. System rated voltage: 8*15*3.2=384V

GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System

GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System

GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System

GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System

Application
  • PV power plant storage
  • Island off-grid energy storage
  • optical storage charge integration applications
  • Micro-grid applications
  • UPS power supply
  • Power System 220V DC power supply
  • Rail transit 110V DC power supply
  • Container ESS
  • Solar ESS

GCE High Voltage BMS 255S 816V 400A Lithium-ion Battery BMS for ESS UPS Off grid Solar Energy Storage System

Specification

Item Master BMS RBMS07-S20-400A816V
Basic Parameters Max. current 400A.500A(Optional)
Max. voltage 350V.750V.1000V(according to the rated voltage)
Power consumption ≤15W
Current sampling accuracy 1%FSR
Insulation withstand voltage 2800VDC ＜1mA 1min
Protection level IP20
Size(W*H*D) 485*220*550(mm)
New Weight ~32Kg
Communication Interface Communication port with BMU CAN
Communication port with UPS RS485/CAN
Communication port with SBMS RS485/CAN
Communication with monitoring software Ethernet

Basic Function

 Battery charge & discharge management Available
Battery temperature management Available
IAP Upgrade Available
System protection parameter setting Available
Short circuit protection Available(45KA 20ms)
Pre-charge function Available
Parallel circulation control Available
Event record Available (5000)
Dual power supply Available(Battery + municipal power supply, municipal power in priority)
Optional function Insulation detection Suitable for systems with voltages above 300V
HMI display 3.5 inches, 7 inches optional (external) (optional)
Stand-alone or parallel function Set up before leaving the factory
Dry contact Maximum 2 dry contact outputs (optional)
Others Color RAL9005 black sand grain
Installation method Suitable for standard 19-inch rack installation
Incoming and outgoing wire method Front side in and front side out.
Operating ambient temperature -20℃~60℃
Operating ambient humidity 5%~75%RH
Comply with National standards GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
Certification Comply with CE certification standards

Product Feature

1.Advanced battery management system---The highly integrated battery management system can realize seamless monitoring.


2.Perfect self-checking and running status checking function, with HMI display screen, system running information is clear at a glance.

3.Complete and reliable system control and protection strategies, comprehensively
guarantee battery safety, and escort to extend the life of battery packs .

4.Modular design, configurable and expandable---multiple energy storage units can be flexibly combined and expanded into a larger energy storage system

5.Abundant communication interfaces---multiple RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS and monitoring servers on the market.

6.The communication interface protocol is flexible.--the factory comes with the company's communication protocol, and it can also be adapted to the PCS of different manufacturers according to customer needs.

7.The built-in large-capacity memory chip can store a large amount of key operating data and an SD card can be added to realize battery historical data storage.

8.Automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of battery packs.

Packing and Shipping:

High Voltage BMS Packaging and Shipping:

  • Deliver high voltage BMS in shockproof, waterproof packaging.
  • Label each package with product name, model number, serial number, weight, and other information.
  • Ensure that packages are properly sealed and secured.
  • Package components separately, using foam or other cushioning material to protect against damage.
  • Do not overpack or underpack the shipment.
  • Use appropriate shipping method according to customer's requirements.
  • Check all packages for accuracy and integrity before shipping.

FAQ:

High Voltage BMS-related Questions and Answers

Q1: What is the Brand Name and Model Number of High Voltage BMS?

A1: The Brand Name is GCE and the Model Number is RBMS07-S20-400A816V.

Q2: Where is High Voltage BMS made?

A2: The High Voltage BMS is made in China.

Q3: What certifications does High Voltage BMS have?

A3: The High Voltage BMS has CE/RoHS/MSDS certifications.

Q4: What is the minimum order quantity of High Voltage BMS?

A4: The minimum order quantity of High Voltage BMS is 1 set.

Q5: What is the packing size and delivery time of High Voltage BMS?

A5: The packing size of High Voltage BMS is 830*560*280mm and the delivery time is 1-5sets within 15 days,

6-30sets within 25pcs, more to be negotiate.

Our company

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.
