Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage
Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage
Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage
Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage
Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage
Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage
Specifications
Brand Name :
GCE
Model Number :
RBMS07S23-125A576V
Certification :
CE UL
Place of Origin :
china
MOQ :
2
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000+pcs+1 month
Delivery Time :
8-15 days
Packaging Details :
Corrugated Carton,685*560*200mm
voltage :
576V
current :
125A
Material :
Iron
color :
black
Communication :
CAN, RS485
OEM/ODM :
Acceptable
Warranty :
3 years
Product name :
Battery Management System
size :
W440mm*W130mm*D500mm
Description

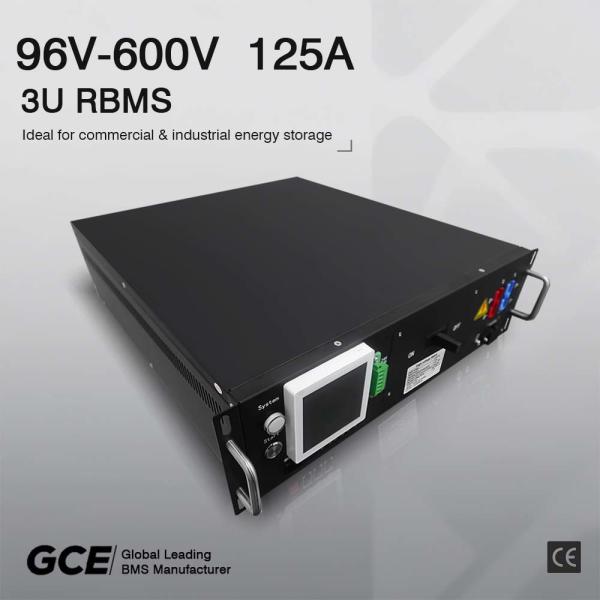

180S 576V 125A 3U smart BMS for high voltage bms with relay contactor lifepo4 bms slave master for PV power plant storage

Specification
Product Name
BMS
Model no.
RBMS07S2-3-125A576V
protecting method
MCCB+Contactor
Rated Current range
-125A~125A
Voltage Range
0V-576V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with RBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
3U (440*133*500))
Way out
Back and front
Mid-line
Not support
Tap center
Not support
Net weight
17kg

Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage

Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant StorageBattery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant StorageBattery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant StorageBattery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant StorageBattery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage

BMS System Structure

Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage
