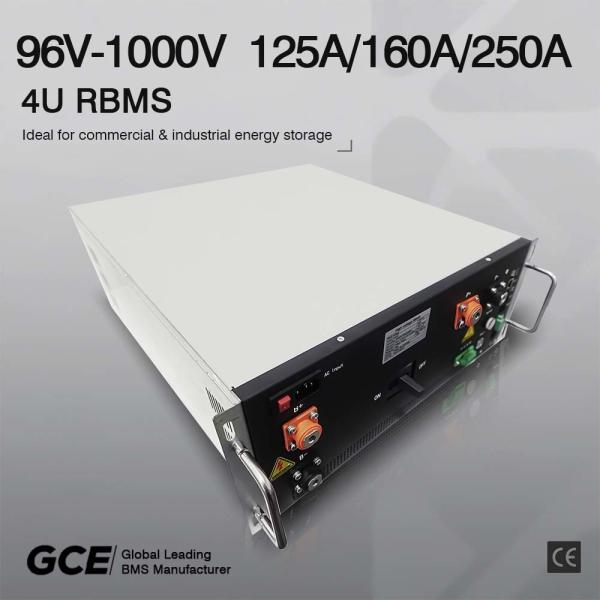

Lifepo4 BMS 240S 768V 160A BMS for UPS ESS Solar Off-Grid BESS Sistema De Gestion De Bateria

768V160A HV BMS Configuration:

One complete set of HV 240S768V 160A BMS solutions includes:

1set Master BMS, Model#: RBMS07-S20-160A768V

16sets 15S Slave BMU Model#: BMU07-15S8T48F

16sets 15S Wire Harness

Wire harness includes:

Voltage&Temperature acquisition wire,

BMU External Communication Wire with Shenji Port,

The power wire for the Fan.

Accessories:

12S-24S BMU(Slave) 12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply, consumption less 20mA, CAN2.0 B communication	Wire harness- Signal acquisition wire 18 P+20P wire, standard length 600mm,900mm,1200mm temperature sensor wire: standard length: 600mm,900mm,1200mm Fan Power wire: 600mm	Wire harness- communication wire Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Specification:

GCE HV 3-Level BMS Diagram Structure:

Applications:

FAQs:

• Q: Are you a manufacturer or simply a trading company?
  A: We are a manufacturer, and we sincerely welcome you to visit our factory.
• Q: Can I get some samples?
  A: Yes, a sample order is available for quality checking and market testing.
• Q: What kind of cells are applicable to this Battery Management System?
  A: LFP, NMC, LTO
• Q. How about the delivery time?
  A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
• Q. What are your terms of payment?
  A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
• Q: What are your warranty terms?
  A: We offer a 3-year warranty.
• Q. Can you produce BMS with customization requirements?
  A: Yes, based on the order quantity, we can make some small adjustments.
• Q: How does your factory do regarding quality control?
  A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
• Q: What Trade Terms are available?
  A: No limitation on the trade terms. We normally do EXW for orders amounts smaller than 5000USD, and FOB for the rest ones. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.
