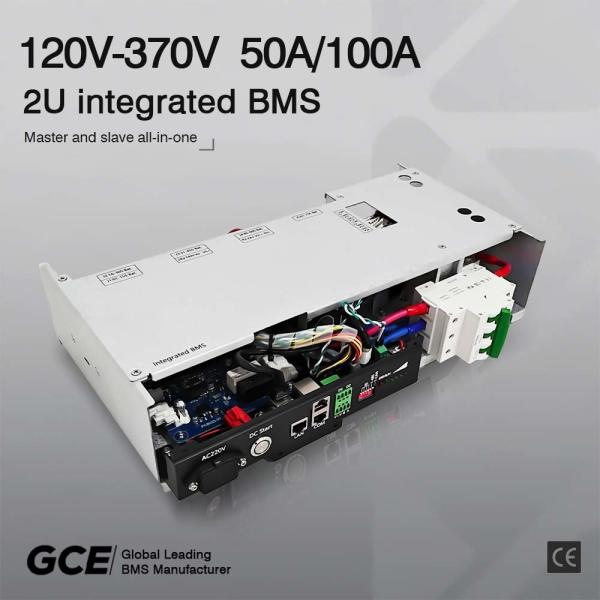

38S 120V 100A lifepo4 Bms For Lithium Ion Battery Energy Storage System
38S 120V 100A lifepo4 Bms For Lithium Ion Battery Energy Storage System
Specifications
Brand Name :
GCE
Model Number :
RBMS07S38S100A
Certification :
CE/RoHS/UN38.3/MSDS
Place of Origin :
china
MOQ :
2
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000+pcs+1 month
Delivery Time :
8-15 days
Packaging Details :
Corrugated Carton,510*310*210mm
Material :
Iron
color :
silver
Communication :
CAN, RS485
Description

GCE 38S 120V 100A New Design BMS lithium battery management system lifepo4 BMS for Energy Storage System

    • 38S 100Amp

Communication protocol:
CAN, RS485
* Design: Master & Slave all in one
* Efficient, stable and reliable * size:W410*H232*D128cm
38S 120V 100A lifepo4 Bms For Lithium Ion Battery Energy Storage System

New Design

It is the latest product developed by our company and it's unique in the market.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs.

For 30S-75S Lithium Battery Packs

30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of
small capacity batteries. Greatly reduce the cost of users.

Specification

Product Name
Integrated BMS
Model no.
RBMS07S38S100A
System voltage range
120 - 228 V DC
Startup mode
DC start (optional AC and DC starter)
Number of battery strings
60 S(4 x 15 S)
Balance
Equilibrium type
Passive resistance equalization
Balanced current
100mA ± 10mA(Single cell 3.4V )
Temperature Sampling
Numbers
12 Battery temperature(4*3)
Sampling accuracy
± 2℃
Voltage Sampling
Sampling accuracy
Single cell ±20mV
SOC
≤5%
Communication mode
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Bluetooth: optional (android app available)
GPRS: optional,
Display mode
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: optional
Hall sensor specifications
50A/100A
Maximum load of power components
Steady-state:100A
transient state:150A/10S( Adjustable)
Alarm level
1 Level
Protection level
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down
Operating Temperature
Charging : －10～75℃
Discharging : -20 to 75℃
Storage : -40 to +75℃

38S 120V 100A lifepo4 Bms For Lithium Ion Battery Energy Storage System38S 120V 100A lifepo4 Bms For Lithium Ion Battery Energy Storage System38S 120V 100A lifepo4 Bms For Lithium Ion Battery Energy Storage System38S 120V 100A lifepo4 Bms For Lithium Ion Battery Energy Storage System38S 120V 100A lifepo4 Bms For Lithium Ion Battery Energy Storage System
