ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box
Specifications
Brand Name :
GCE
Model Number :
RBMS0760S100A
Place of Origin :
China
MOQ :
2
Price :
USD 494-617 per pcs
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs per month
Delivery Time :
15 work days
Packaging Details :
Cardboard Packaging
Certification :
CE
size :
410*240*78mm
voltage :
96V-192V
current :
100Amp
communication :
rs485 CAN
balancing :
passive
weight :
4.5kg
Power consumption :
≤10W
Description

GCE 30-60S 96V-192V100A integrated BMS 2U iron box bms with hall sensor relay BMS for ESS UPS

Product Name: 30S-60S 100A integrated BMS

Model: RBMS07S60S100A

Application:

1. Home energy storage,BESS

2. Island off-grid energy storage,

3. Micro-grid applications,

4. UPS power supply,

5. Power System 220V DC power supply

6. low speed EV

ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box

Integrated BMS introduction:

BMS integrated machine components are BMS main control board, BMU sampling board, high voltage board, switching power supply, Hall sensor, DC contactor, micro switch, power terminal, structural box and wiring harness, etc.; the characteristic is that the main control board Integrate with sampling board and other power devices to keep the system as a secondary architecture. It has the characteristics of compact structure, flexible installation and low cost, and is suitable for integrated installation with small capacity batteries.

ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box

30s-75s BMS integrated BMS is a highly integrated intelligent high-voltage battery management system. master bms and slave bms are installed in one machine for about 10-30Kwh battery storage systems or UPS, backup power systems

Integrated BMS is designed by GCE company, it's unique structure with master bms and slave BMS in one machine. It can control 30S to 75S lifepo4,NMC, LTO batteries in series and 7 racks in parallel. Charge and discharge current is 50A-100A, maximum 125A for 10 seconds.

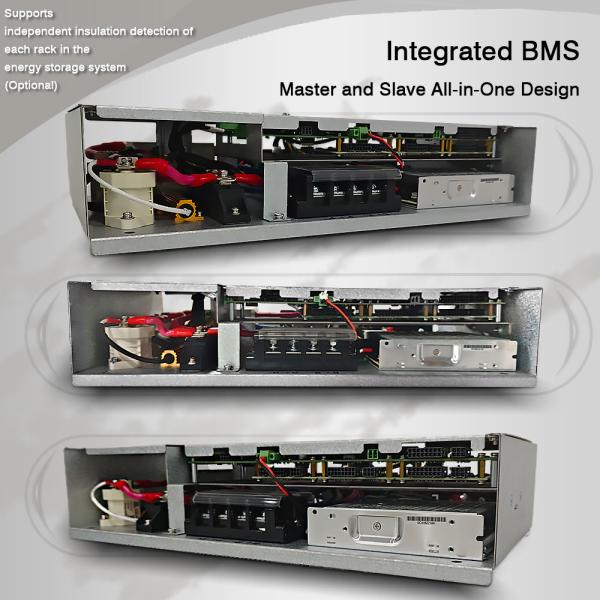

Integrated BMS Structure:

ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box

Integrated BMS features:

1 Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.
2 15 probes for every 15 strings, for a total of 15
3 current collection uses Hall sensor, safe and reliable, no heat
4 SOC estimation error ≤ 5%
5 3-digit address dialing to set the BMS address;
6 3-channel relay dry contact output;
7 4-channel contactor expansion and auxiliary contact detection
8 Provide PC software to facilitate the customer to debug the battery system, or modify the system parameters through the host computer
9 Support for parallel use (maximum 7 units)

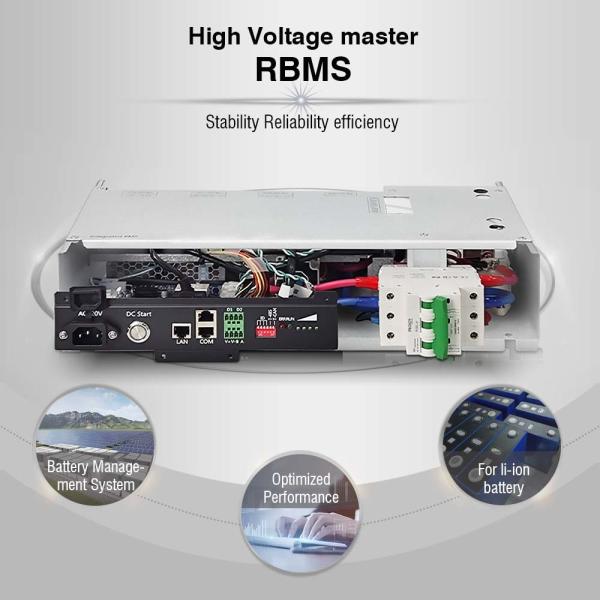

BMS Product physical drawings:

ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box

Over 1000pcs delivery every month

ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box

High quality, Efficient, Stable and Reliable

ESS UPS Power Supply Integrated BMS 30-60S 96V-192V 100A 2U Iron Box

Fault condition
　 Fault indicate Remarks
1 Internal power failure Long red light 　
2 Internal communication failure (communication error between MCU and AFE) Long red light
3 Single section voltage is higher than 4.1V or lower than 0.5V, or the differential pressure is greater than 2.5V Long red light
4 The temperature is lower than - 30 ℃ or higher Long red light
than 100 ℃, or the temperature difference is greater than 30 ℃.
5 others Long red light
