480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen

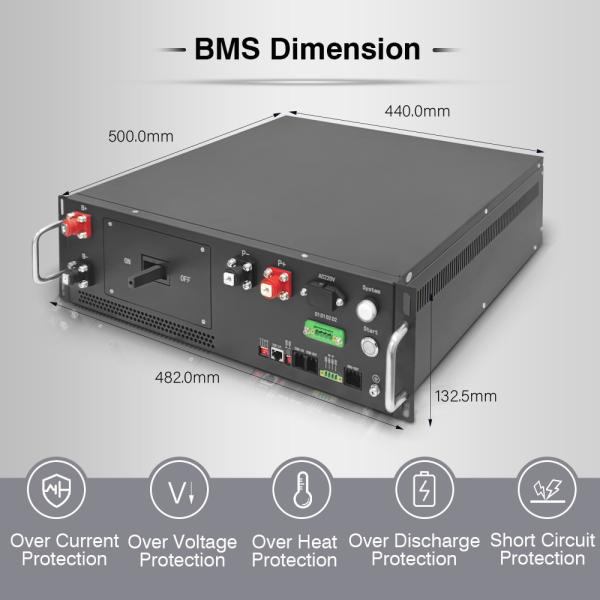

Specifications
Brand Name :
Gce Hv BMS
Model Number :
RBMS07-S20-125A-480V
Certification :
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
Place of Origin :
China
MOQ :
2 Sets
Price :
Pls negotiate with toby@hngce.com
Payment Terms :
T/T
Supply Ability :
2000 pcs/month
Delivery Time :
15 days after receive the payment
Packaging Details :
670*560*240mm Cartons
Features :
DC&AC Dual Power Supply
Rated Current Range :
125A
Model :
RBMS-S20-125A-480V
Bms Type :
3U BMS
New Weight :
21kgs
Safety Protection :
OV, UV, OC, SC
Storage Temperature :
-20-60°C
Master Bms Height :
3u
Battery Management Functions :
Charge/Discharge Control/State of Charge Estimation
Type :
Center Tap BMS
Cooling :
Air Cooling
Hmi Display :
3.5 Inch（Optional）
Safety Features :
Overvoltage/Undervoltage/Overcurrent/Overtemperature Protection
Current Collection :
Hall sensor
Battery Type :
LFP, NMC, LTO
Color :
Bright Black
Description
1. Application Scenario
PV power plant storage
Island off-grid energy storage
optical storage charge integration applications
Micro-grid applications
UPS power supply
Power System 220V DC power supply
2.Product system overview

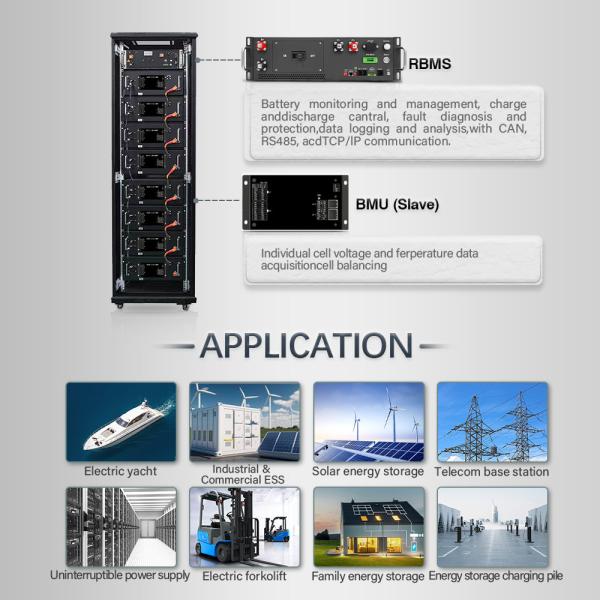

RBMS product is a battery management system developed for large-scale high-voltage battery energy storage system and UPS application. Distributed architecture and modular design concept are adopted, which is highly configurable and easy to assemble, debug and maintain. It is

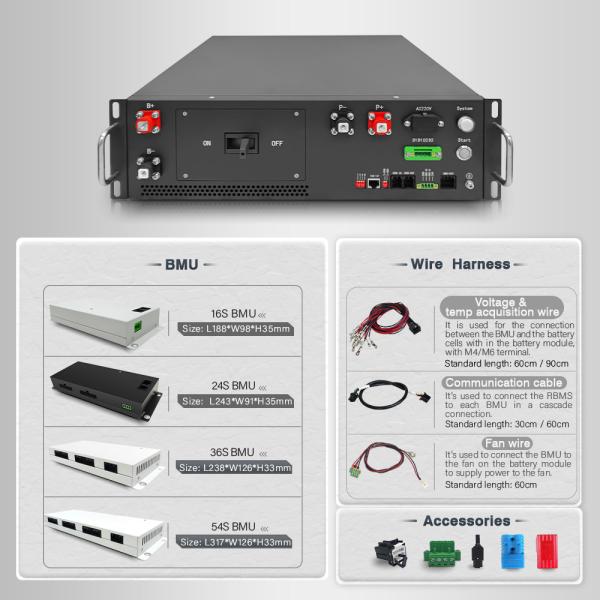

suitable for various battery energy storage systems with DC voltage below 600V. The product can be configured as a secondary architecture (BMU + RBMS) at least, which is suitable for 10kwh-100kwh. Cooperating with industrial computer and battery stack management software, a three-level architecture (BMU + RBMS + SBMS) can be formed, which is suitable for 50kwh-2mwh occasions. Cooperating with the server and power station battery management system software, a four-level architecture can be formed(BMU + RBMS + SBMS + BBMS), suitable for occasions from 2mwh to 1000mwh to meet different project needs.
The product has perfect and reliable operation and protection strategies to effectively prolong the service life of the battery pack. With a variety of
communication interfaces, it can directly or indirectly connect with the third-party energy management system.
3.Product Features.
Advanced battery management system - highly integrated battery management system can realize.
self inspection and operation status detection function, combined with HMI display screen,the system operation information is clear at a glance.
Perfect and reliable system control and protection strategies to fully ensure the safety of the battery and escort the extension of the service life of the battery pack.
Modular design, configurable and expandable - multiple energy storage units can be flexibly combined to expand into a larger energy storage system, and can support up to 160 batteries in series.
4.BMS Main technical parameters
480V 150S 125A 3U highly integrated battery management system combined with HMI display screen480V 150S 125A 3U highly integrated battery management system combined with HMI display screen
