384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
Specifications
Brand Name :
Gce Hv BMS
Model Number :
RBMSS20-160A-1228.8V
Certification :
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 CE
Place of Origin :
China
MOQ :
1 Sets
Price :
Negotiable with toby@hngce.com
Payment Terms :
T/T
Supply Ability :
2000 sets in one month
Delivery Time :
15 days after receive the payment
Packaging Details :
670*560*240mm Cartons
Rated Current :
160A
Max. voltage :
1500V
Model :
RBMS-S20-160A-1500V
Master Bms Height :
4U
Max Current :
160A
Cell Monitoring :
Individual Cell Voltage Monitoring
Operating Temperature :
-20°C to 50°C
Battery charge &discharge management :
Available
Battery temperature management :
Available
IAP Upgrade :
Available
Features :
DC&AC Dual Power Supply
Communication Protocol :
CAN/RS 485
Hmi Display :
Supported
Material :
Iron
Description

1.Application scenarios

◎ PV power plant storage ◎ Island off-grid energy storage ◎ optical storage charge integration applications ◎ UPS power supply

2. Product system overview

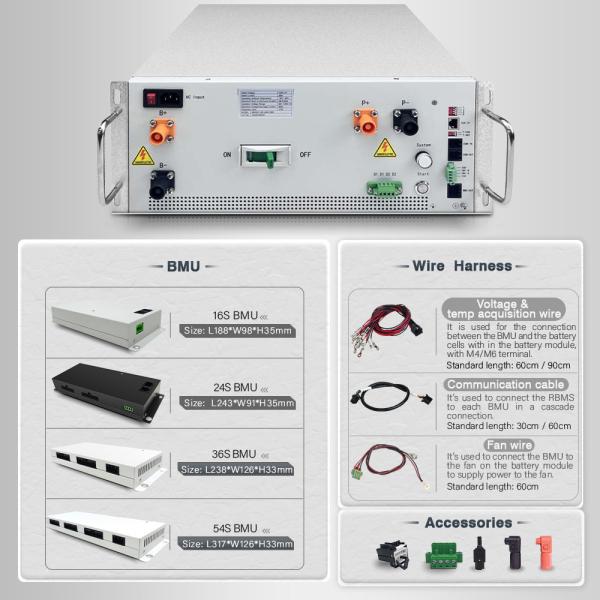

RBMS(Rack BMS)products are battery management systems developed for large-scale high-voltage battery energy storage system applications. It adopts distributed architecture, modular design concept, high configurability, easy assembly, debugging and maintenance, and is applicable to various battery energy storage systems with DC voltage above 1000V to 1500V. This product can be configured as a two-level architecture (BMU+RBMS) at least, which is suitable for 50KWh-200KWh occasions. It can form a three-level architecture (BMU+RBMS+SBMS) in combination with the industrial personal computer and the battery stack management software, and is suitable for 200KWh-2MWh occasions.

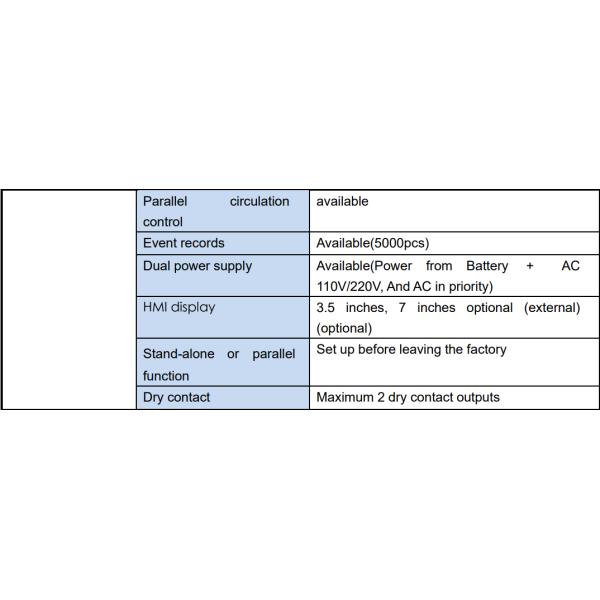

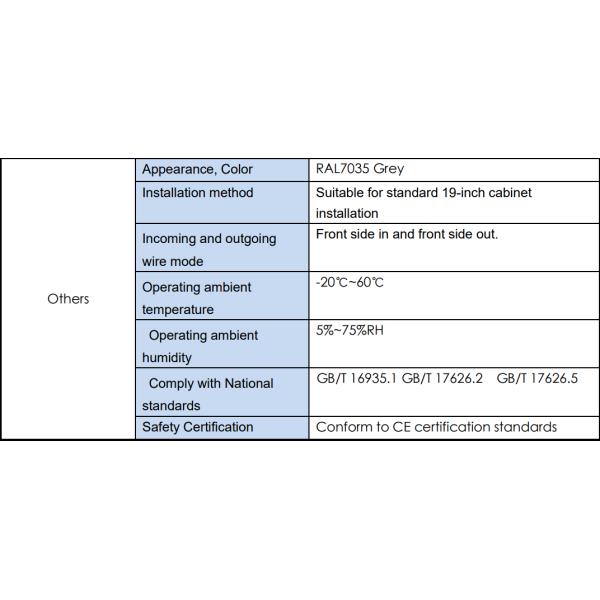

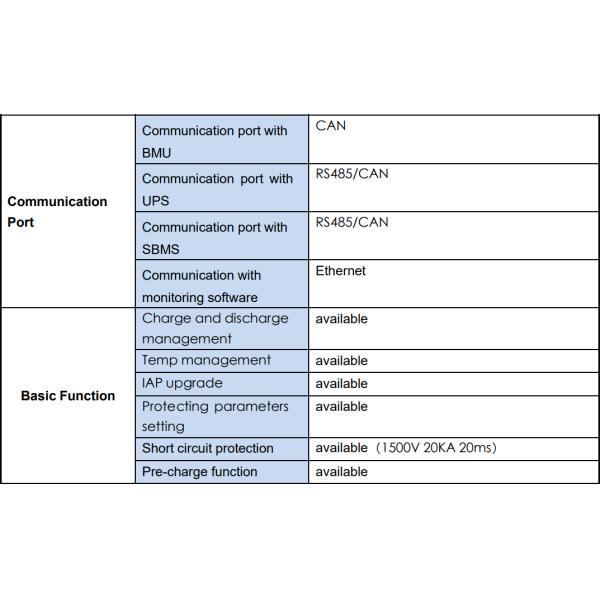

3. Main technical parameters of RBMS

384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
