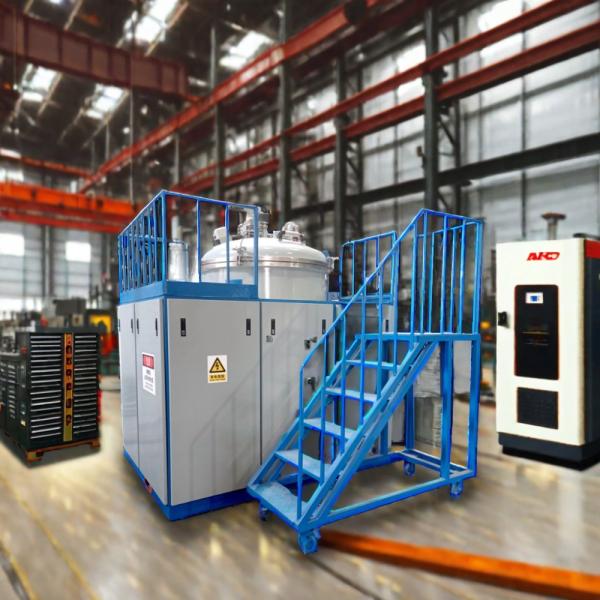

Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Specifications
Brand Name :
Jingtan
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
type :
Induction Furnace
usage :
Vacuum graphitization furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Pump
brand name :
OEM
voltage :
380V
warranty :
1 Year
key selling points :
High Productivity
Maximum Use Temperature :
Normal Temperature -2600℃
Temperature Measurement accuracy :
0.2~0.75%
Temperature Control accuracy :
±1℃
Limit heating rate :
60-25℃/min
Temperature Uniformity :
≤±10℃
Working Atmosphere in the Furnace :
Vacuum, hydrogen, nitrogen, inert gases, etc
Temperature Measurement :
Far infrared optical temperature measurement
Weight :
2T
Heating Element :
Graphite or Tungsten
Heating Zone :
Single, Dual, or Three
Graphite Crucible :
High Purity Graphite
Classification :
Laboratory Heating Equipments
Gas Supply :
Ar/He/N2
Cooling Method :
Water Cooling
Description
Specification
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Vacuum graphitization furnace
Application: high temperature treatment and graphitization of carbon structural parts (products), C/C composite products,
graphene, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and
smelted in carbon environment.

Characteristics of vacuum graphitization furnace:

Ultra-high temperature furnace body up to 2600℃ can fully meet the sintering and graphitization of various materials.
Using digital display intelligent temperature control system, automatic, high precision temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.
Adopt internal circulation pure water cooling system, digital flow monitoring system. Intelligent PLC security monitoring, remote control can be realized, with no paper to record the parameters, automatic storage,water, electricity, gas automatic control and protection system, with internal network port connection.
Furnace body is equipped with mechanical explosion-proof valve, with automatic pressure relief function, to ensure safety.
Maximum Use Temperature
Normal Temperature -2600℃
Normal Temperature -2600℃
1L,10L,35L,100L
200L,340L,540L,800L,1570L
Working atmosphere in furnace
Vacuum,hydrogen, nitrogen,inert gases,etc
Temperature Measurement
≤+10℃
≤+15℃
Temperature Uniformity
Infrared optical temperature measurement,temperature
measurement range 900~3500℃ or 1000~3200℃
Temperature Measurement accuracy
0.2~0.75%
Temperature Control
Program control and manual control
Temperature Control accuracy
Program control and manual control
Limit heating rate
60℃/min
25℃/min
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing

Advantage 1:

Absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology.
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing

Advantage 2:

Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degreasing, impurity removal, etc.) under vacuum or gas protection.
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Company Profile
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing

Patent for high temperature graphitization furnace:

Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing

Patent for high temperature vacuum hot pressure furnace:

Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing

Patent for high temperature continuous furifing graphitization furnace:

Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing

Patent for carbonization sintering furnace:

Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing

Patent for bottom discharge graphitization furnace:

Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing

Patent for carbon fiber continuous furnace

Production process
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Customer Photos
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Our logistics system is all around the world.
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
Customer cooperation cases:
Competitive Price 380V Vacuum Graphitization Furnace for Core Metal Processing
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
