Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
Specifications
Brand Name :
Jingtan
Certification :
CE
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
place of origin :
Henan, China
type :
Induction Furnace
usage :
Vacuum graphitization furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC
brand name :
OEM
voltage :
380V
weight (t) :
2
warranty :
1 Year
key selling points :
High Productivity
Maximum Use Temperature :
Normal Temperature -2600℃
Temperature Measurement accuracy :
0.2~0.75%
Temperature Control accuracy :
±1℃
Limit heating rate :
60-25℃/min
Condition :
New
Marketing Type :
Ordinary Product
Showroom Location :
South Korea
Applicable Industries :
graphene material
Product Name :
Vacuum graphitization furnace
Warranty of core components :
1 Year
Description

Intelligent PLC Security Monitoring Vacuum Graphite Heating High Temperature Graphitization Furnace/Oven

Specification
Vacuum graphitization furnace
Application: high temperature treatment and graphitization of carbon structural parts (products), C/C composite products,
graphene, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and smelted in carbon environment.

Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Characteristics of vacuum graphitization furnace:

Ultra-high temperature furnace body up to 2600℃ can fully meet the sintering and graphitization of various materials.
Using digital display intelligent temperature control system, automatic, high precision temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.

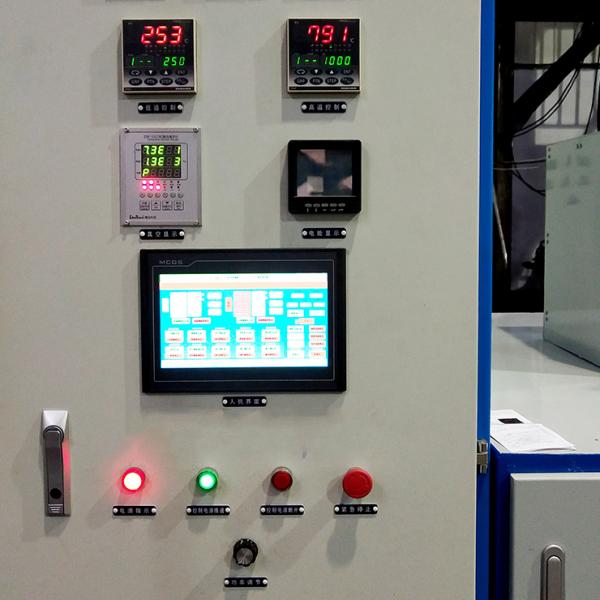

Adopt internal circulation pure water cooling system, digital flow monitoring system. Intelligent PLC security monitoring, remote control can be realized, with no paper to record the parameters, automatic storage,water, electricity, gas automatic control and protection system, with internal network port connection.

Furnace body is equipped with mechanical explosion-proof valve, with automatic pressure relief function, to ensure safety.
Maximum Use Temperature
Normal Temperature -2600℃
Normal Temperature -2600℃
1L,10L,35L,100L
200L,340L,540L,800L,1570L
Working atmosphere in furnace
Vacuum,hydrogen, nitrogen,inert gases,etc
Temperature Measurement
≤+10℃
≤+15℃
Temperature Uniformity
Infrared optical temperature measurement,temperature
measurement range 900~3500℃ or 1000~3200℃
Temperature Measurement accuracy
0.2~0.75%
Temperature Control
Program control and manual control
Temperature Control accuracy
Program control and manual control
Limit heating rate
60℃/min
25℃/min
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Advantage 1:

Absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace designtechnology.
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Advantage 2:

Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degreasing, impurity removal, etc.) under vacuum or gas protection.
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
Company Profile
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Patent for high temperature graphitization furnace:

Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Patent for high temperature vacuum hot pressure furnace:

Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Patent for high temperature continuous furifing graphitization furnace:

Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Patent for carbonization sintering furnace:

Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Patent for bottom discharge graphitization furnace:

Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Patent for carbon fiber continuous furnace

Production process
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring

Customer Photos
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
Our logistics system is all around the world.
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
Customer cooperation cases:
Vacuum Graphite Heating Graphitization Furnace High Temperature with Intelligent PLC Monitoring
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
