High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
Specifications
Brand Name :
Jingtan
Certification :
CE
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
place of origin :
Hunan, China
type :
Induction Furnace
usage :
Heat Treatment Furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Gearbox, motor
brand name :
Jingtan
voltage :
380
weight (t) :
2 T
power (kw) :
120
warranty :
1 Year
key selling points :
Accurate temperature control
Temperature Uniformity :
≤±15℃
Temperature Measurement Accuracy :
0.3%
Max.Temperature :
3000℃
Rate of pressure rising :
2Pz/h
Temperature control accuracy :
±1℃
Condition :
New
Marketing Type :
New Product 2019
Warranty of core components :
1 Year
Showroom Location :
Canada, Turkey, United Kingdom, United States, Germany, Russia, South Korea
Applicable Industries :
Energy & Mining, New material
Description
Products Description

Product Usage

It is used for producing various sizes of thermal conductive graphite film. The equipment before and after the process required reasonable equipment collocation, and equipment utilization rate is good, effective production.
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size

Advantage 1

It adopts microcomputer for furnace body distribution control, temperature control, temperature recording and monitoring of water, electricity and gas data. The actual furnace temperature is recorded by using programming process temperature rise curve. To ensure the quality of products, it can track the production. Comprehensive monitoring of water, electricity and gas data, it will alarm within 1s automatically and protect the equipment when failure occurs.
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size

Advantage 2

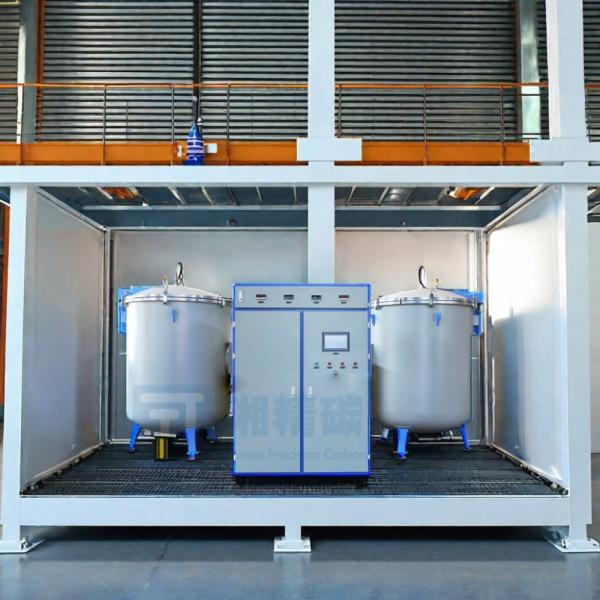

It is mainly composed of 1200-1600℃ carbonization
furnace and 2800-3000℃ ultra-high temperature furnace , supporting gas purification device, gas filtration device, cooling and circulating water system. With "one cabinet
and two furnaces" design, it improves production output. There are two types of furnace: horizontal and vertical, which is to meet different product requirements.
Model
GJC-KGPS-60
GJC-KGPS-120
GJC-KGPS-160
GJC-KGPS-200
GJC-KGPS-250
GJC-KGPS-300
Crucible Volume(mm)
Φ100*150
Φ200*300
Φ300*500
Φ400*800
Φ500*1000
Φ600*1200
Power Supply(kw)
60
120
160
200
250
400
Max. Temperature (℃)
3000
3000
3000
3000
3000
3000
Frequency(Hz)
4000
2500
2500
1500
1500
1000
Limit Vacuum(Pa)
1.2*10-1
1.2*10-1
1.2*10-1
1.2*10-1
1.2*10-1
1.2*10-1
Rate of pressure rising(Pz/h)
2
2
2
2
2
2
Temperature Difference
in Constant Temperature Zone(℃)
±10
±10
±10
±15
±15
±15
Temperature Uniformity
≤±15℃
Working Atmosphere
Vacuum displacement of Ar and N2 protection (micro positive pressure)
Temperature Accuracy
±1℃
Temperature measurement
Infrared Optical Temperature Measurement
temperature measurement range 1000-3200℃
Temperature Measurement Accuracy
0.3%
Company Profile
Qualification and Patents
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size

Patent for carbonization sintering furnace
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size

Patent for bottom discharge graphitization furnace:
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size

Patent for carbon fiber continuous furnace
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size

Patent for high temperature graphitization furnace
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size

Patent for high temperature vacuum hot pressure furnace
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size

Patent for high temperature continuous furifing graphitization furnace
Production process
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
Customer Photoes
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
Logistics System All Around the World.
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
Customer Cooperation Cases
High quality industrial vacuum graphitization furnace for thermal conductive graphite film in big size
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
