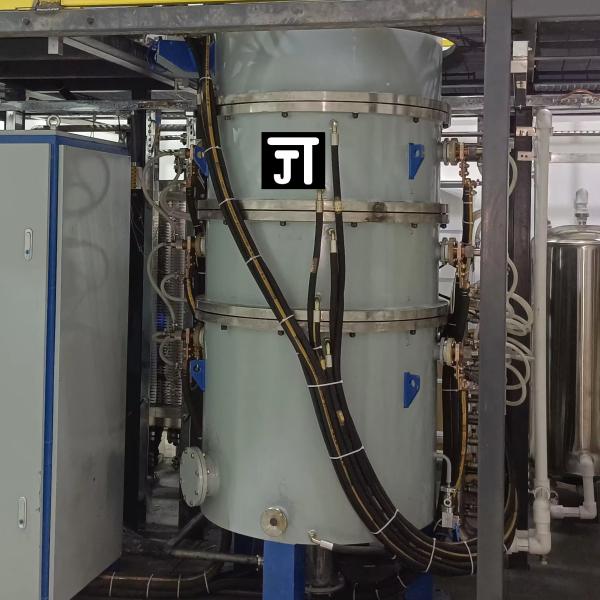

Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
Specifications
Brand Name :
Jingtan
Certification :
CE
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
place of origin :
Hunan, China
type :
Resistance Furnace
usage :
Heat Treatment Furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Pump
brand name :
Jingtan
voltage :
380
weight (t) :
2 T
power (kw) :
150
warranty :
1 Year
key selling points :
Flexible Manufacturing
Limit Temperature :
2200℃/2800℃
Heating Method :
graphite resistance/induction heating
Condition :
New
Warranty of core components :
1 Year
Showroom Location :
Canada, Turkey, United Kingdom, United States, France, Germany, Russia
Marketing Type :
Hot Product 2022
Applicable Industries :
Energy & Mining, Other, New material
Description
Products Description

Vapor Deposition Furnace
(1) The electric heating way:uniform heating, simple operation, easy control and maintenance.
(2) The furnace is made of special materials with strong high temperature resistance, which can withstand the weight of high temperature heating elements and heavy components, and has excellent sealing performance, which can effectively prevent the sediment growing on the substrate from being contaminated.
(3) Intelligent pressure control, small pressure fluctuation;
(4) The fully enclosed structure has good thermal stability, good sealing effect and strong anti-pollution ability;
(5) Multi-channel process gas path, uniform flow, no deposition dead Angle, good deposition effect;
(6) Multi-stage high-efficiency exhaust treatment system, environmentally friendly, efficient collection of tar and by-products, easy to clean;
(7)The cooling method is adopted, the shell is cooled by water, the external circulation fast cooling system can be selected, the cooling time is short, and the production efficiency is high.
Product Usage
Used for CVD/CVI treatment of the surface or matrix of the material with hydrocarbon gas (such as C3H8, CH4, etc.) as the carbon source, and for the surface coating of the material, matrix modification, composite material preparation, etc.
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI TreatmentMulti Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
Model
JT-CJL-04
JT-CJL-14
JT-CJL-31
JT-CJL-74
JT-CJL-127
JT-CJL-211
JT-CJL-326
JT-CJL-588
Working Zone Size
φ×H(mm)
100×500
150×800
200×1000
250×1500
300×1800
350×2200
400×2600
500×3000
Limit Temperature(℃)
2200/2800
Temperature uniformity(℃)
±3/±5
±3/±5
±5/±7.5
±7.5/±10
±7.5/±10
±10/±15
±10/±15
±15/±20
Limit Vacuum Degree(Pa)
≤30
≤30
≤50
≤50
≤100
≤100
≤100
≤100
Pressure rise rate(Pa/h)
1
1
2
2
5
5
5
5
Heating method
graphite resistance/induction heating
The above parameters can be adjusted according to the process requirements, and shall not be used as the basis for acceptance.The specific technical plan and agreement shall prevail.
Qualification and Patents
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment

Patent for carbonization sintering furnace
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment

Patent for bottom discharge graphitization furnace:
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment

Patent for carbon fiber continuous furnace
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment

Patent for high temperature graphitization furnace
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment

Patent for high temperature vacuum hot pressure furnace
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment

Patent for high temperature continuous furifing graphitization furnace
Production process
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
Customer Photoes
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
Logistics System All Around the World.
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
Customer Cooperation Cases
Multi Stage Vapor Deposition Furnace Intelligent Pressure Control For CVD CVI Treatment
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
