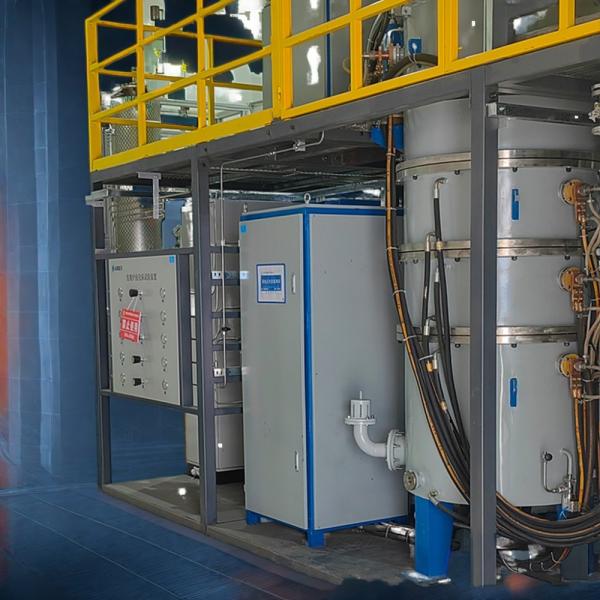

OEM Stainless Steel Vapor Deposition Furnace Industrial CVD Furnace With PLC Control
OEM Stainless Steel Vapor Deposition Furnace Industrial CVD Furnace With PLC Control
Specifications
Price :
USD10,000-80,000/SET
Brand Name :
Jingtan
Certification :
CE
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
Payment Terms :
L/C/T/T
Supply Ability :
5pcs/month
place of origin :
Hunan, China
type :
Resistance Furnace
usage :
deposition furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Pump
brand name :
Jingtan
voltage :
380
weight (t) :
6
warranty :
1 Year
key selling points :
Flexible Manufacturing
Limit Temperature :
2200℃/2800℃
Heating Method :
graphite resistance/induction heating
Ultimate Vacuum Degree :
≤30Pa
Temperature Uniformity :
±3℃
Presuure Rising Rate :
1Pa/h
Furnace Structure :
vertical
Furnace Body Materials :
SS 304
Chamber Size :
dia.100*500mm
Description
OEM Stainless Steel Vapor Deposition Furnace Industrial CVD Furnace With PLC Control

Product Usage

Used for CVD/CVI treatment of the surface or matrix of the material with hydrocarbon gas (such as C3H8, CH4, etc.) as the carbon source, and for the surface coating of the material, matrix modification, composite material preparation, etc.

Vapor Deposition Furnace
(1) The electric heating way:uniform heating, simple operation, easy control and maintenance.
(2) The furnace is made of special materials with strong high temperature resistance, which can withstand the weight of high temperature heating elements and heavy components, and has excellent sealing performance, which can effectively prevent the sediment growing on the substrate from being contaminated.
(3) Intelligent pressure control, small pressure fluctuation;
(4) The fully enclosed structure has good thermal stability, good sealing effect and strong anti-pollution ability;
(5) Multi-channel process gas path, uniform flow, no deposition dead Angle, good deposition effect;
(6) Multi-stage high-efficiency exhaust treatment system, environmentally friendly, efficient collection of tar and by-products, easy to clean;
(7)The cooling method is adopted, the shell is cooled by water, the external circulation fast cooling system can be selected, the cooling time is short, and the production efficiency is high.
Model
JT-CJL-04
JT-CJL-14
JT-CJL-31
JT-CJL-74
JT-CJL-127
JT-CJL-211
JT-CJL-326
JT-CJL-588
Working Zone Size
φ×H(mm)
100×500
150×800
200×1000
250×1500
300×1800
350×2200
400×2600
500×3000
Limit Temperature(℃)
2200/2800
Temperature uniformity(℃)
±3/±5
±3/±5
±5/±7.5
±7.5/±10
±7.5/±10
±10/±15
±10/±15
±15/±20
Limit Vacuum Degree(Pa)
≤30
≤30
≤50
≤50
≤100
≤100
≤100
≤100
Pressure rise rate(Pa/h)
1
1
2
2
5
5
5
5
Heating method
graphite resistance/induction heating
The above parameters can be adjusted according to the process requirements, and shall not be used as the basis for acceptance.The specific technical plan and agreement shall prevail.
